| RT—S652

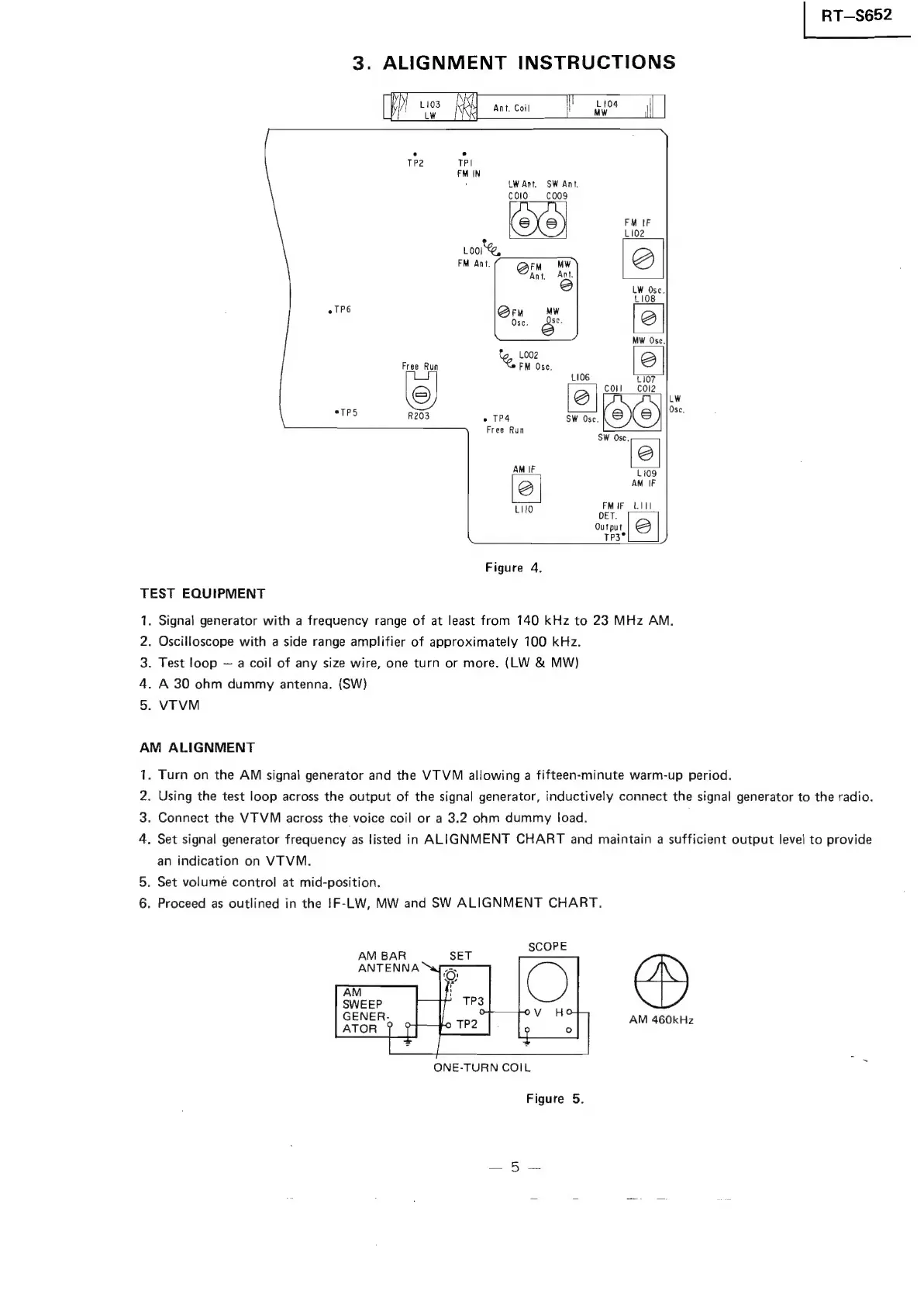

3. ALIGNMENT INSTRUCTIONS
fe
L193
Re
Ant,
Coil
h
awe!
i
.
TP2 TPI
FM IN
LW Ant. SW Ant.
colo co09
@Xo) ae
‘
eTP6
Free Run
re
. Ose.
ue R203 . TP4 SW Ose. (e)
Free Run
Sw “le
AM IF L109
Zz) AM IF
FM IF LIII
euo DET.
Output ‘Zz
TP3° }
Figure 4.
TEST EQUIPMENT
. Signal generator with a frequency range of at least from 140 kHz to 23 MHz AM.
. Oscilloscope with a side range amplifier of approximately 100 kHz.
. Test loop — a coil of any size wire, one turn or more. (LW & MW)
. A 30 ohm dummy antenna. (SW)
VTVM
a hwWN =
AM ALIGNMENT
. Turn on the AM signal generator and the VTVM allowing a fifteen-minute warm-up period.
. Using the test loop across the output of the signal generator, inductively connect the signal generator to the radio.
. Connect the VTVM across the voice coil or a 3.2 ohm dummy load.
PWN =
. Set signal generator frequency as listed in ALIGNMENT CHART and maintain a sufficient output level to provide
an indication on VTVM.
a
Set volume contro! at mid-position.
6. Proceed as outlined in the IF-LW, MW and SW ALIGNMENT CHART.
AM 460kHz
ONE-TURN COIL
Figure 5.
