CTX28 Installation
Installing the CTX28 Cabinet
1-6 Strata CTX28 I&M 3/05
Installing the CTX28 Cabinet
Check the items shipped.
• CHSU28A cabinet
• GCTU1A processor PCB
• AC adapter
• Tie wrap for cable clamp
• Tie wrap for AC adapter
• Velcro strap for AC adapter cord
Step 1: Mount the Cabinet on the Wall
The Base cabinet is designed to be mounted on a wall or other vertical surface.
³ To mount the Base KSU
1. Make sure the location for the CTX28 meets the minimum clearance requirements specified in
Figure 1-1 on page 1-2.
2. Loosen the screws on the front cover and the side cover of the Base KSU, remove the covers
(see Figure 1-3).

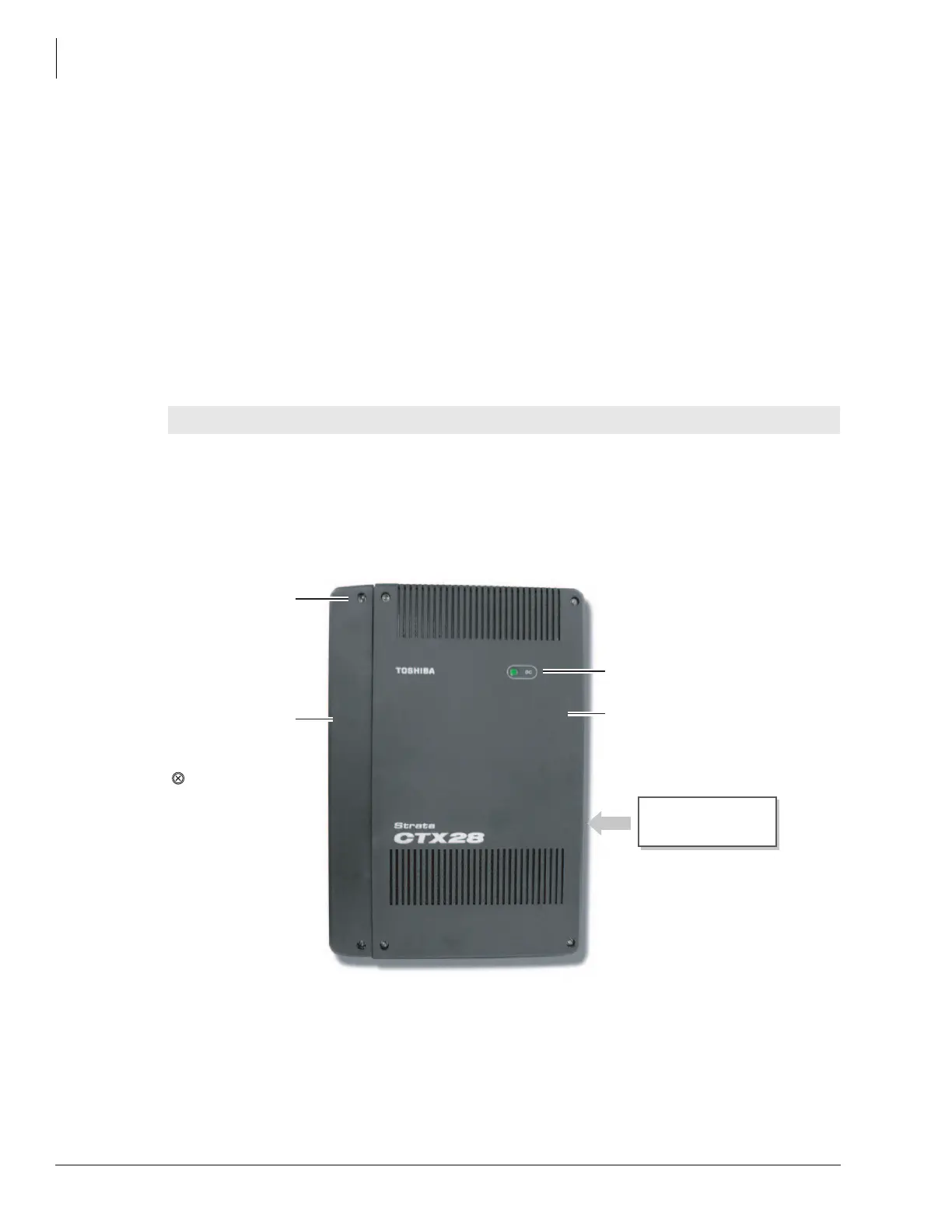

Figure 1-3 CTX28 Cabinet Exterior
:$51,1* To prevent electrical shock, make sure the power supply switch is turned Off.
Base Cover
Side Cover
Cover
Screws (6)
DC Power LED
=
7125a
Six cover screws
to be removed
before mounting
KSU
Model: CHSU28A
Strata CTX28
Label on edge of
Base KSU
