Specifications

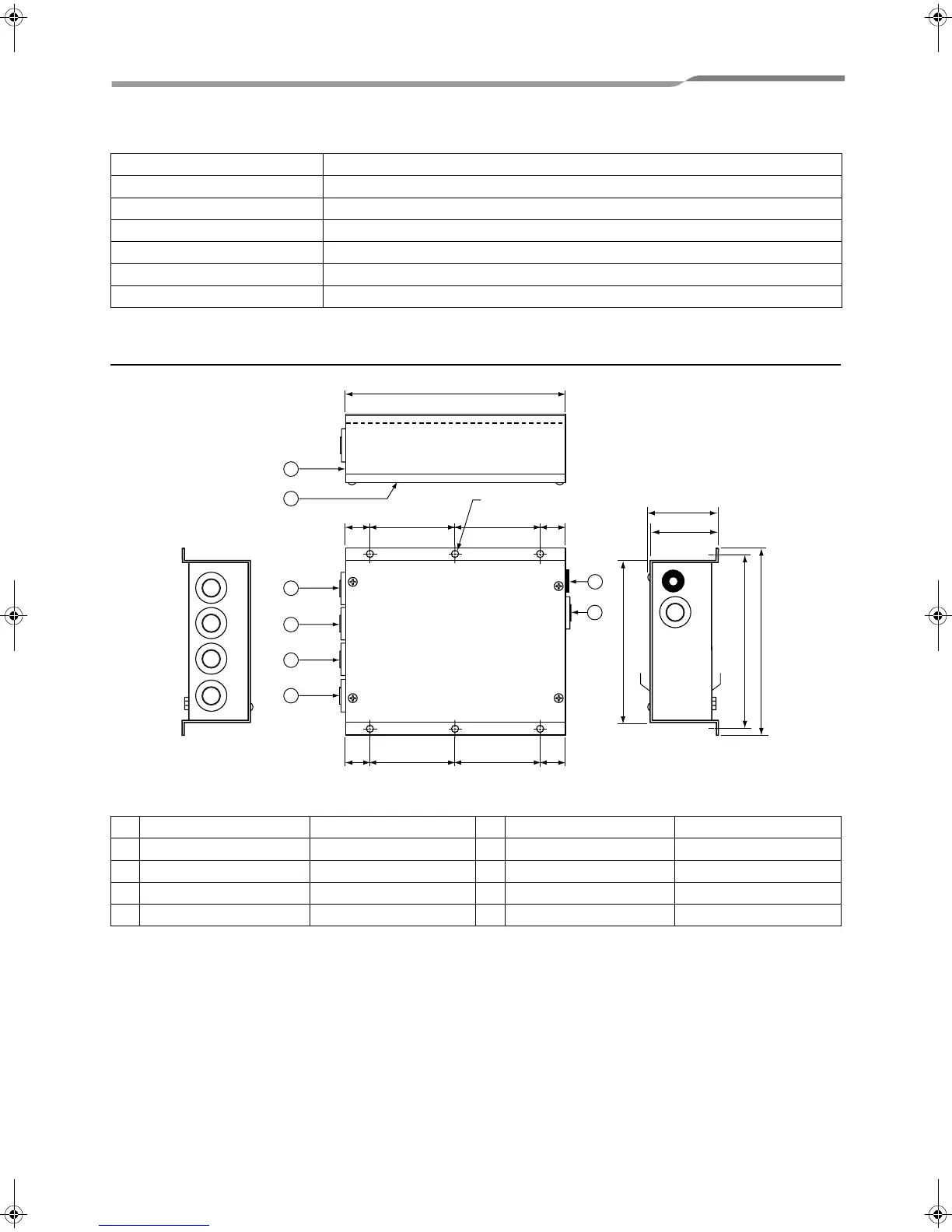

 External View
Power supply 15 VDC ±5%
Power consumption 4 W
Operating temperature/humidity 0 to 40 °C, 20 to 85% RH
Storage temperature -20 to 60 °C
Chassis material Galvanized sheet metal 0.8t (no coating)
Dimensions 66 (H) × 170 (W) × 200 (D) mm
Mass 820 g
Parts name Specifications Parts name Specifications
1 Case Galvanized sheet metal 5 Grommet C30-SG20A
2 Case lid Galvanized sheet metal 6 Grommet C30-SG20A
3 Grommet C30-SG20A 7 Grommet for power supply C30-SG20A
4 Grommet C30-SG20A 8 DC Jack MJ-40
200
22787822
22787822
66
63.6
147
156 170
1
2
3
7
4
5
6
8
6-Ø5 mounting holes
Top s ide
Bottom side
