TCS-NET General Purpose Interface
Installation Manual
Toshiba
–8–
4 Installation
TCB-IFCG1TLE (TCB-IFCG2TLE) Installation Method and
Orientation

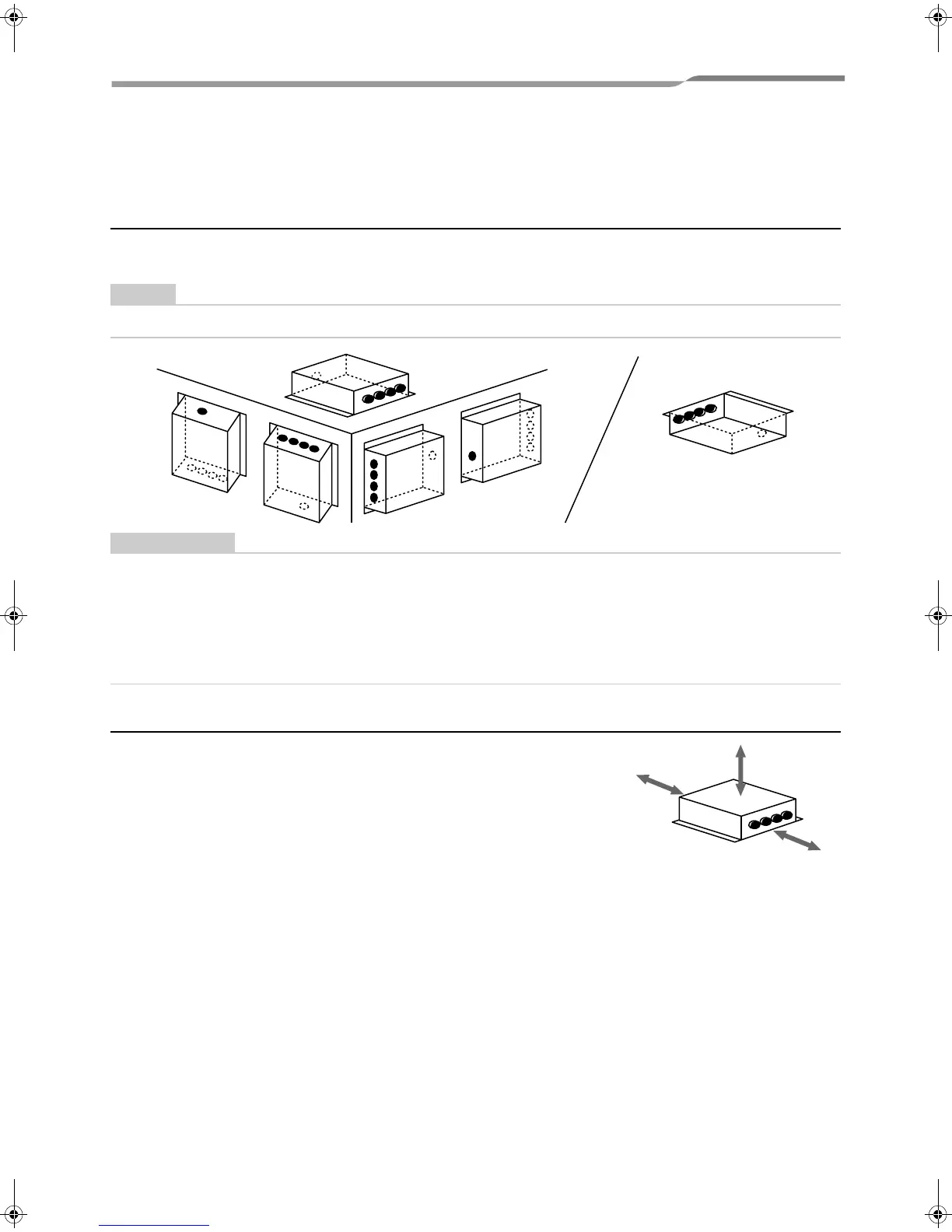

There are five orientations of Surface/Wall Mount that the TCB-IFCG1TLE (TCB-IFCG2TLE) can be installed,
these are shown below.
NOTE
Use screws supplied for installation of device.
REQUIREMENT
Do not install the unit in any of the following places.
Humid or wet place
Dusty place
Place exposed to direct sunlight
Place where there is a TV set or radio within one meter
Place exposed to rain (outdoors, under eaves, etc.)
Installation Space and Maintenance Space
A side space for connecting through cable inlets and an upper space for
maintenance must be reserved before installation.
The other sides can be adjacent to surrounding objects.
No good
100mm
100mm
100mm
7-EN
+00DE89308101_01EN_TCB-IFCG10TLE_gene_IM.book Page 8 Monday, December 15, 2008 3:49 PM
