TCS-NET General Purpose Interface
Installation Manual
Toshiba
–10–
CAUTION

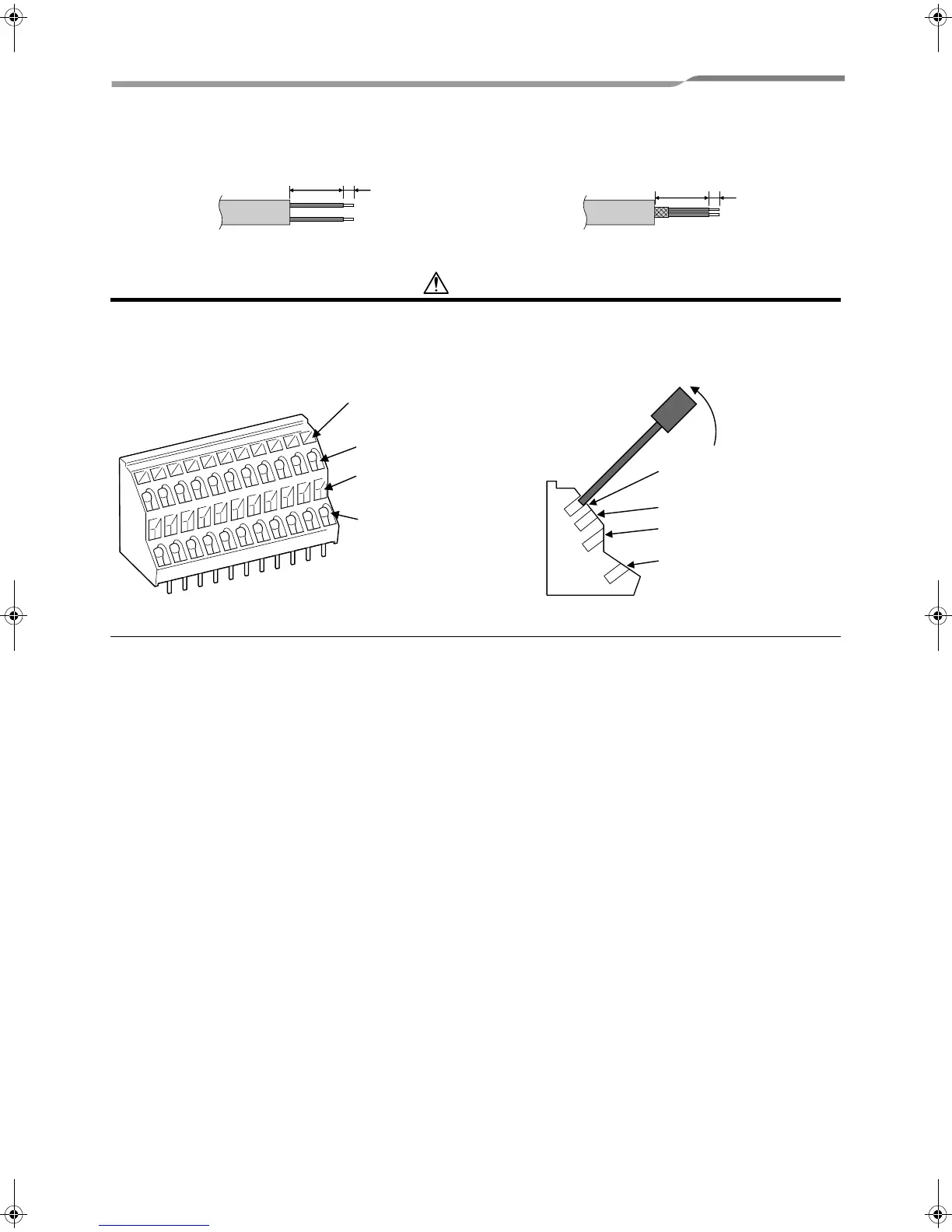

To connect a wire to a wiring terminal on the signal terminal block, insert a screwdriver or the like into a wiring terminal
opening hole at an angle of 45 degrees and raise the screwdriver end to open the wiring
terminal as shown below.
Insert a wire into the open wiring terminal in this state, and then
lower the screwdriver end and remove from the
terminal opening hole
.
20 5
10 5
Length of stripped signal wires Length of stripped TCC-LINK wires
Analog input/output
Digital output
RO output
U1, U2
Appearance of signal terminal block
Wiring terminal
opening holes
Wiring terminals
Wiring terminal
opening holes
Wiring terminals
Screwdriver
or the like
Open the wiring
terminal
Wiring terminal
opening holes
Wiring terminals
Wiring terminal
opening holes
Wiring terminals
Side view of signal terminal block
9-EN
