■Coil type definition
Coil type
Normal
Split face
Interlaced
Sprit Row
Combined usage with
Dx-Interface
Available up to 32 ton
Available
Available
Not Available
Specification
1 inlet & outlet port
2 or 3 inlet & outlet ports
2 or 3 path way are
arranged up and down
2 or 3 inlet & outlet
ports
2 or 3 path ways are
interlaced
2 or 3 inlet & outlet
ports
2 or 3 path ways are
arranged in parallel

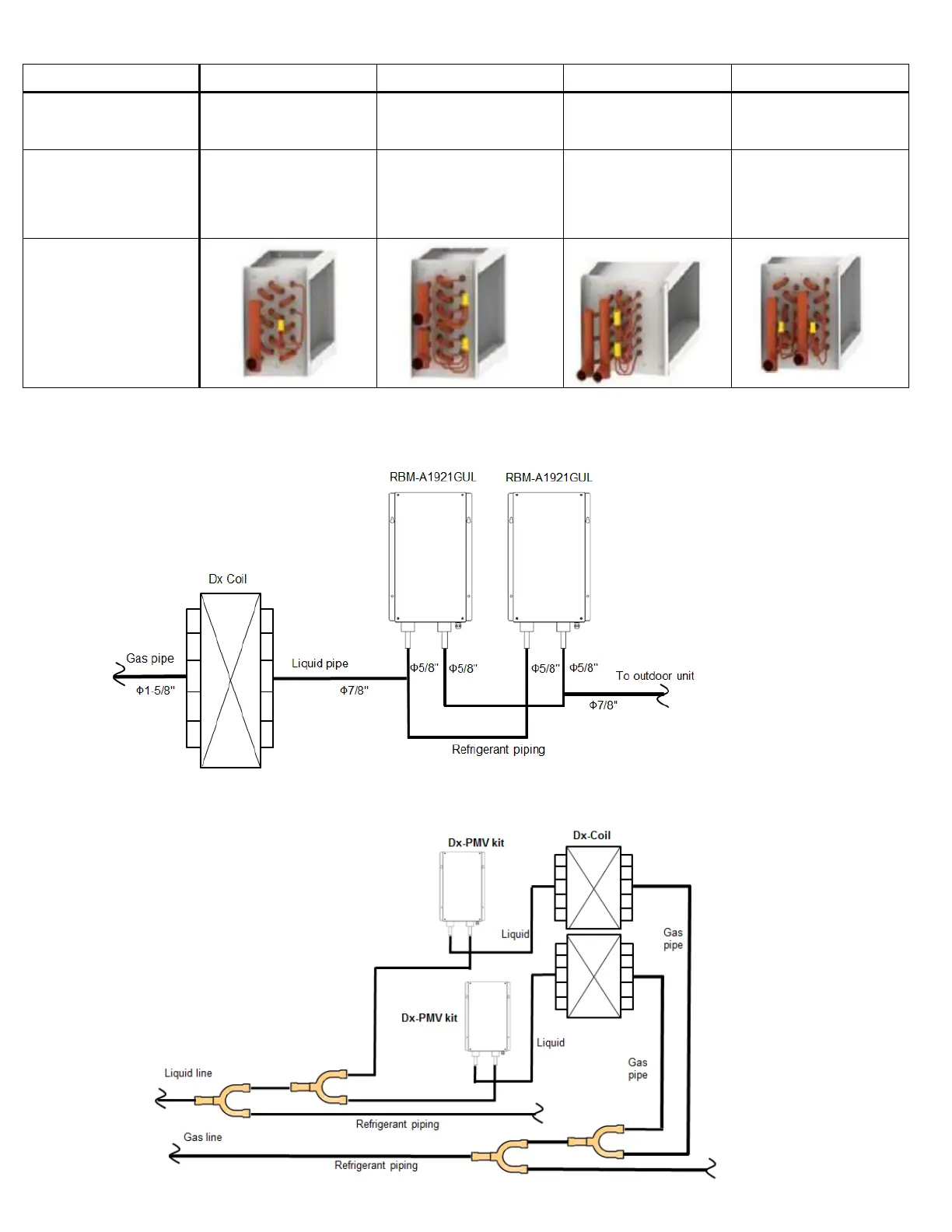

Coil configuration
•Normal Coil Type (Large coil, 28, 32ton)
Two Dx-PMV kit in parallel in liquid line. (One Dx-Controller operates two PMVs in synchronization).
•Split face / Interlaced
Two Dx-PMV kit and Dx-controller in group control. Branch piping is split.
