Power indicator The Power indicator normally glows white when
the computer is turned on. However, if you turn
off the computer into Sleep Mode, this indicator
flashs amber.
Wireless
communication
indicator
The Wireless communication indicator glows
white when the wireless functions are turned on.
Some models are equipped with wireless
functions.
Left side
The following figures show the left side of the computer.

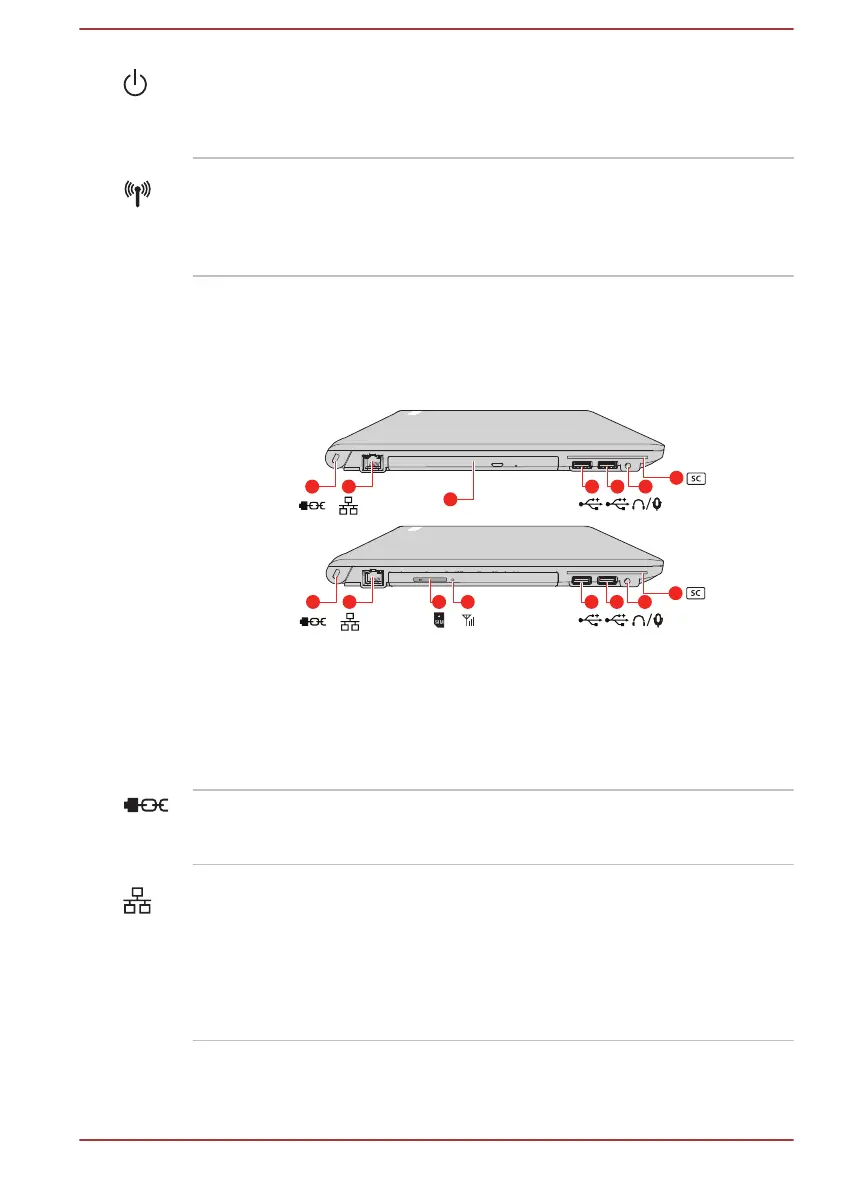

Figure 3-2 The left side of the computer
1. Security lock slot 5. Smart Card slot*
2. LAN jack 6. Optical disc drive*
3. Universal Serial Bus (USB 2.0) port 7. SIM card slot*
4. Headphone/Microphone jack 8. Wireless WAN/WiMAX indicator*
* Provided with some models.
Product appearance depends on the model you purchased.
Security lock slot A security cable can be attached to this slot and
then connected to a desk or other large object in
order to deter theft of the computer.
LAN jack This jack lets you connect to a LAN. The adaptor
has built-in support for Ethernet LAN (10
megabits per second, 10BASE-T), Fast Ethernet
LAN (100 megabits per second, 100BASE-TX) or
Gigabit Ethernet LAN (1000 megabits per
second, 1000BASE-T). Refer to Operating
Basics, for details.
User's Manual 3-2
