E6581611
F-27
6

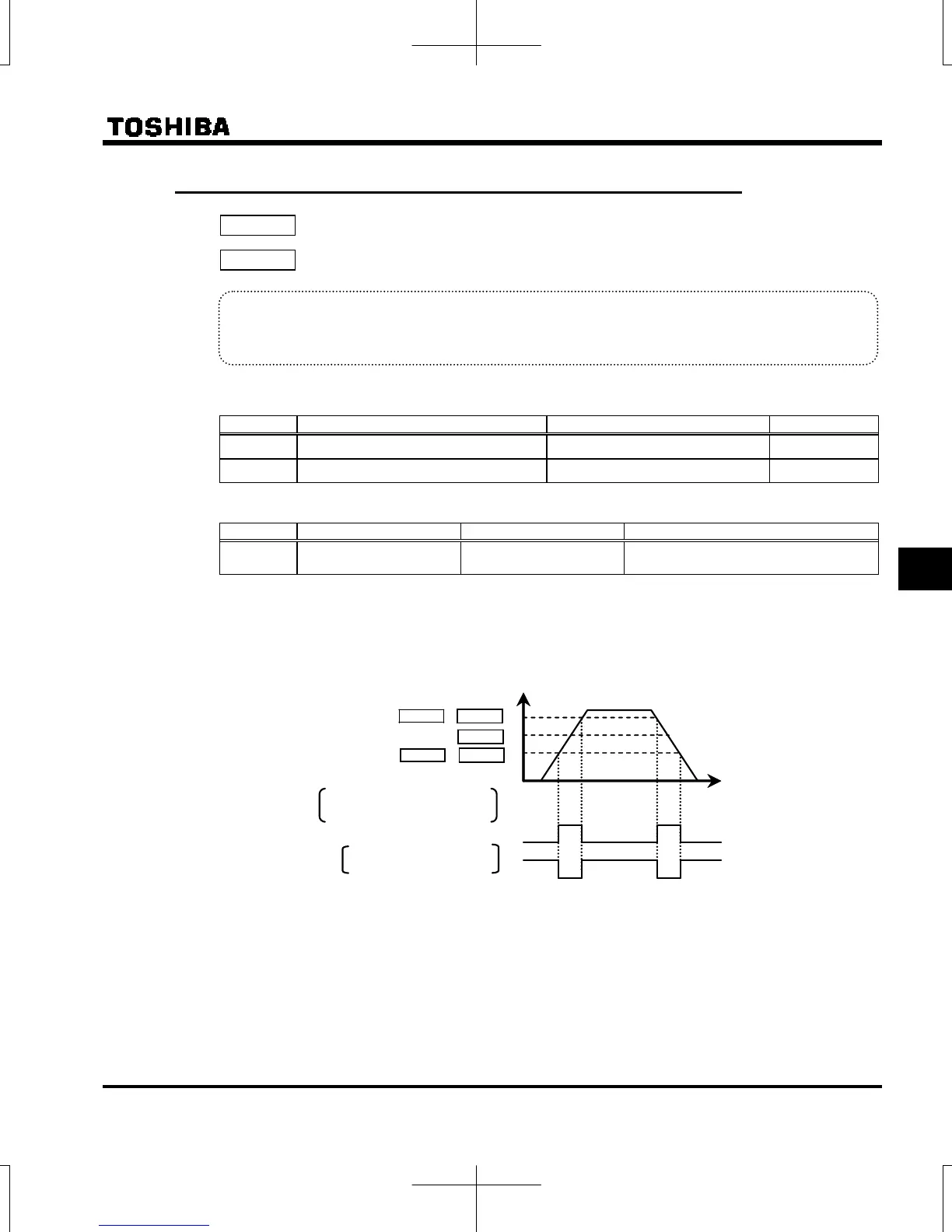

6.5.3 Output of set frequency speed reach signal
f101 : Speed reach setting frequency
f102 : Speed reach detection band
Function
When the output frequency becomes equal to the frequency set by f101f102, an ON or OFF
signal is generated.
[Parameter setting]
Parameter setting of frequency and detection band
Title Function Adjustment range Default setting
f101
Speed reach setting frequency 0.0-fh (Hz) 0.0
f102
Speed reach detection band 0.0-fh (Hz) 2.5
Parameter setting of output terminal selection
Title Function Adjustment range Setting
f131
Output terminal
selection 2A (OUT)
0-255
(Refer to section 11.7.)
8: RCHF (Set frequency attainment
signal)
Setting value 9 is reverse signal.
Note: Set f132 to assign to FLA-FLC-FLB terminals and f130 to RY-RC terminal.
If the detection band value + the set frequency is less than the designated frequency
Set frequency attainment signal
: OUT-NO terminals
Inversion of set frequency
attainment signal
Output frequency [Hz]
Time [s]
-
ON
OFF
+
ON
OFF
0
