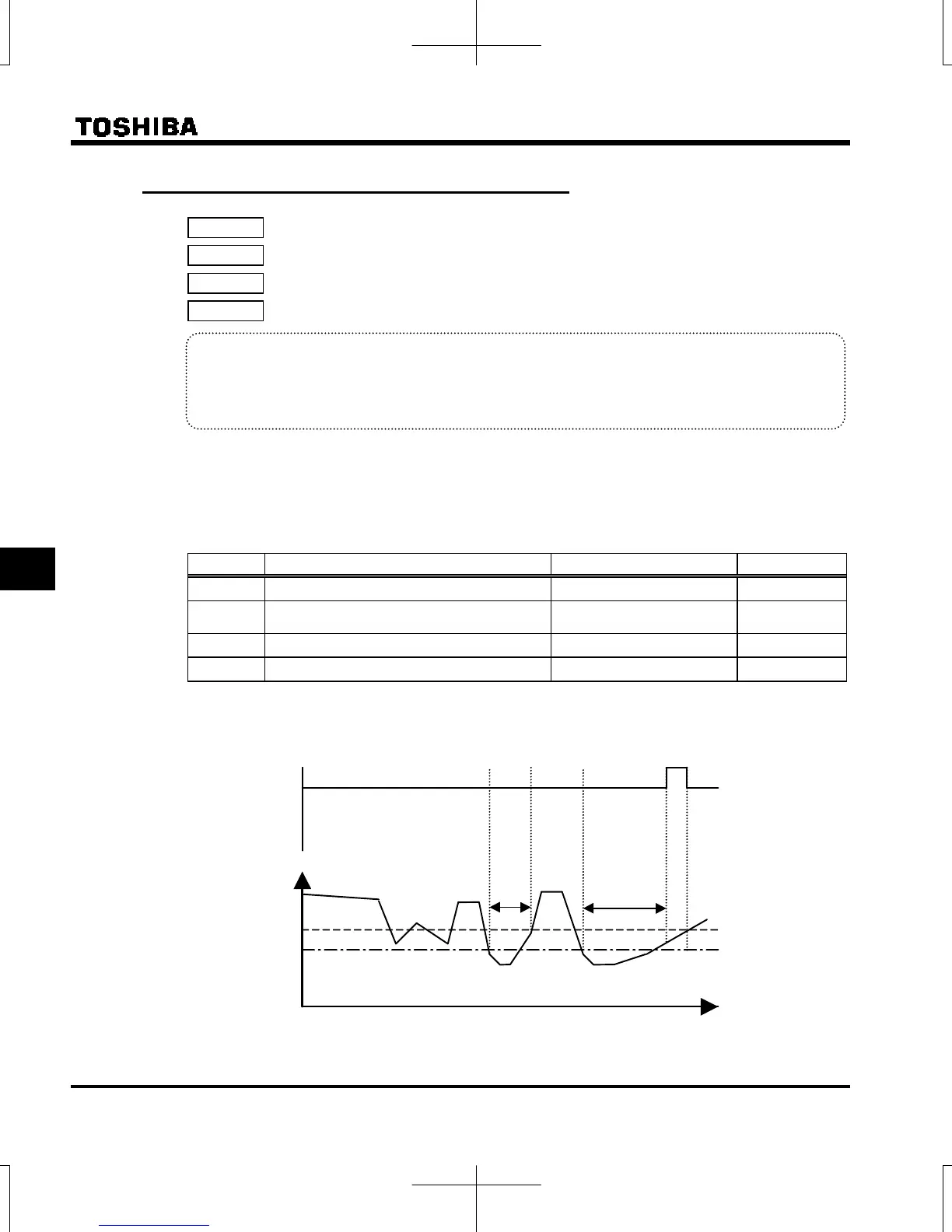

E6581611
F-106
6
6.29.7 Control mode for small current
f609 : Small current detection hysteresis
f610 : Small current trip/alarm selection
f611 : Small current detection current
f612 : Small current detection time
Function
If the output current falls below the value set at f611 and doesn’t return above f611+f609
for a time that exceeds the value set at f612, tripping or output alarm will be activated.
uc is displayed in the event of a trip.
f610=0: No tripping. (Failure signal FL not activated)
A small current alarm can be put out from the output terminal.
f610=1: The inverter will trip if a current below the current set with f611 flows for the period of time
specified with f612. (Failure signal FL activated)
[Parameter setting]
Title Function Adjustment range Default setting
f609
Small current detection hysteresis 1-20 (%) 10
f610
Small current trip/alarm selection
0: Alarm only
1: Tripping
0
f611
Small current detection current 0-150 (%) / (A) 0
f612
Small current detection time 0-255 (s) 0
<Example of operation>
Output terminal function: 26 (UC) Low current detection
f610 = 0 (Alarm only)
Time [sec]
+
Output current (%)
Low current
signal output
or less
ON
OFF
OFF
* When setting f610 to 1 (Trip), trip after low current is detected for the period of time set with f612.
After tripping, the low current signal remains ON.
