E6581611
H-5
8

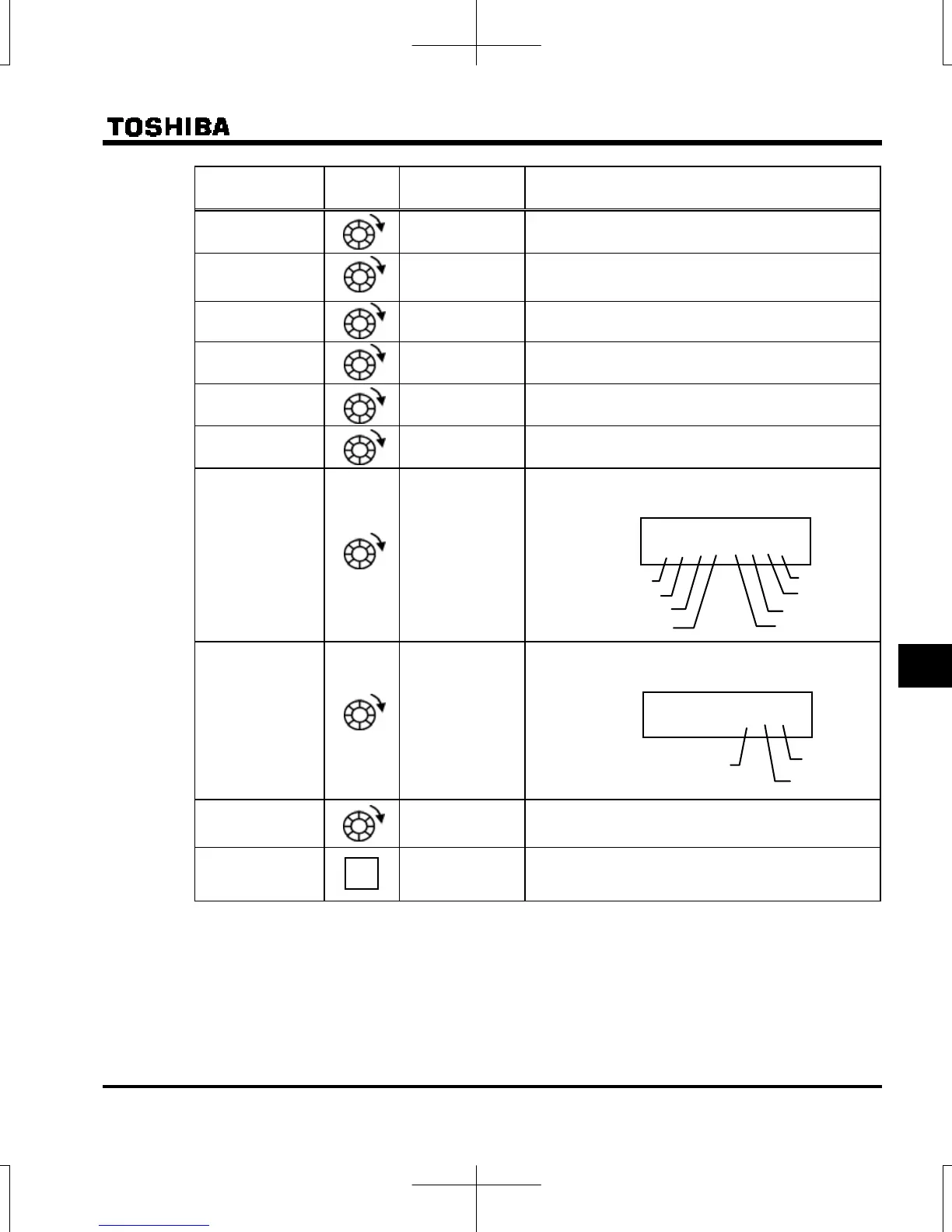

Item displayed
Panel
operated
LED display Description
Output frequency
6
The output frequency when the trip occurred is
displayed.
Direction of
rotation
The direction of rotation when the trip occurred is
displayed.
(: Forward run, : Reverse run)
Frequency
command value *
The frequency command value when the trip occurred is
displayed.
Output current
The inverter output current when the trip occurred is
displayed. (%/A)
Input voltage
The inverter input voltage (DC detection) when the trip
occurred is displayed. (%/V).
Output voltage
The inverter output voltage when the trip occurred is
displayed. (%/V)
Input terminal
The ON/OFF status of each of the control signal input
terminals (F, R, RES, S1, S2, S3, VIB, VIA) are
displayed in bits.
ON:
OFF:
Output terminal
The ON/OFF status of each of the control signal output
terminals (RY-RC, OUT, FL) are displayed in bits.
ON:
OFF:
Cumulative
operation time
The cumulative operation time when the trip occurred is
displayed.
(0.10=10 hours, 1.00=100 hours)
Past trip 1
Press this key to return to past trip 1.
*The monitor value of a trip is not always recorded as the maximum value because of the time required for
detection.
Refer to page H-8 and 9 for notes.
Note 2
Note 1
Note 2
Note 3
Note 4
}}i}}i}i
VIA
S3
F
R
S2
VIB
S1
RES
Note 5
Note 9
0 }ii
FL
RY-RC
OUT
Note 2
MODE
