Toshiba TOSVERT VFS15-4037PL-W User Manual

E6581611
A-31
1
 How to install
Warning
Prohibited
 Do not install or operate the inverter if it is damaged or any component is missing.
This can result in electric shock or fire. Call your Toshiba distributor for repairs.
Mandatory
action
 Mount the inverter on a metal plate.
The rear panel gets very hot. Do not install in an inflammable object, this can result in fire.
 Do not operate with the terminal block cover removed.
This can result in electric shock.
 An emergency stop device must be installed that fits with system specifications (e.g. shut off input
power then engage mechanical brake).
Operation cannot be stopped immediately by the inverter alone, thus, resulting in an accident or injury.
 All options used must be those specified by Toshiba.
The use of any other option will result in an accident.
Caution
Mandatory
action
 The main unit must be installed on a base that can bear the unit's weight.
If the unit is installed on a base that cannot withstand that weight, the unit can fall, resulting in injury.
 If braking is necessary (to hold motor shaft), install a mechanical brake.
The brake on the inverter will not function as a mechanical hold, and if used for that purpose, injury will
result.

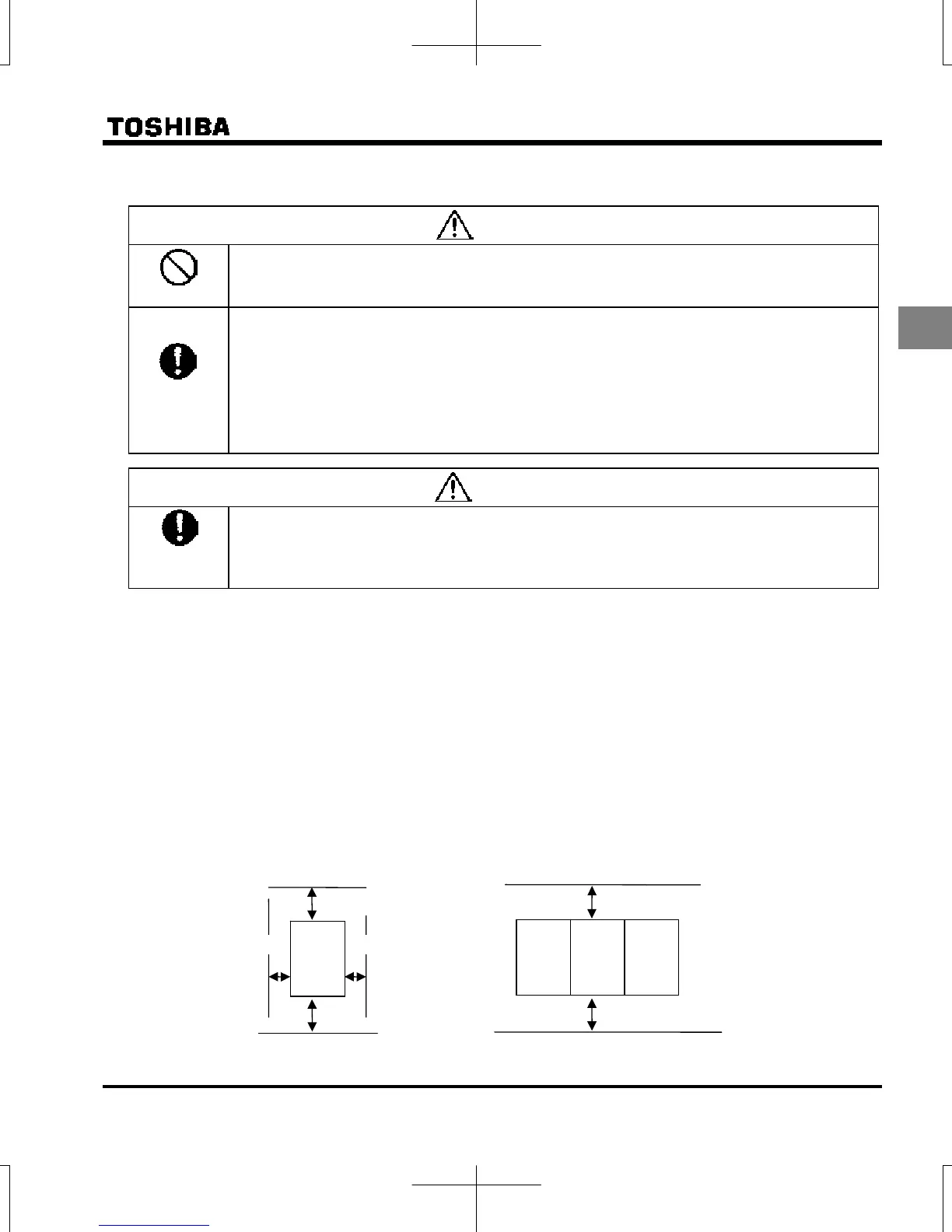

(1) Normal installation
Select an indoor location with good ventilation, and then install it upright on a flat metal plate.
When installing multiple inverters, leave at least 3 cm of space between each inverter and install them
aligned horizontally.
When using the inverter in locations with temperatures above 40°C, remove the protective label on the top of
the inverter and use the inverter with the output current reduced according to section 6.18.
(2) Side-by-side installation
To align the inverters side-by-side horizontally, remove the protective label on the top of the inverter before
use. When using the inverter in locations with temperatures above 40°C, use the inverter with the output
current reduced.
If the door is opened 90° or more, please open the door with the left side inverter’s door open when the same
capacity inverters are installed with side-by-side.
Normal installation Side-b
y
-side installation
3 cm or more
3 cm or more
5 cm or more
5 cm or more
Inverter
Remove seals on top
Inverter Inverter Inverter
5 cm or more
5 cm or more
