8 TC-net 100 Installation and Wiring Manual

Chapter 2 TC-net 100 Cabling (Optical Fiber Cable)

2.2 Wiring Inside the Cabinet

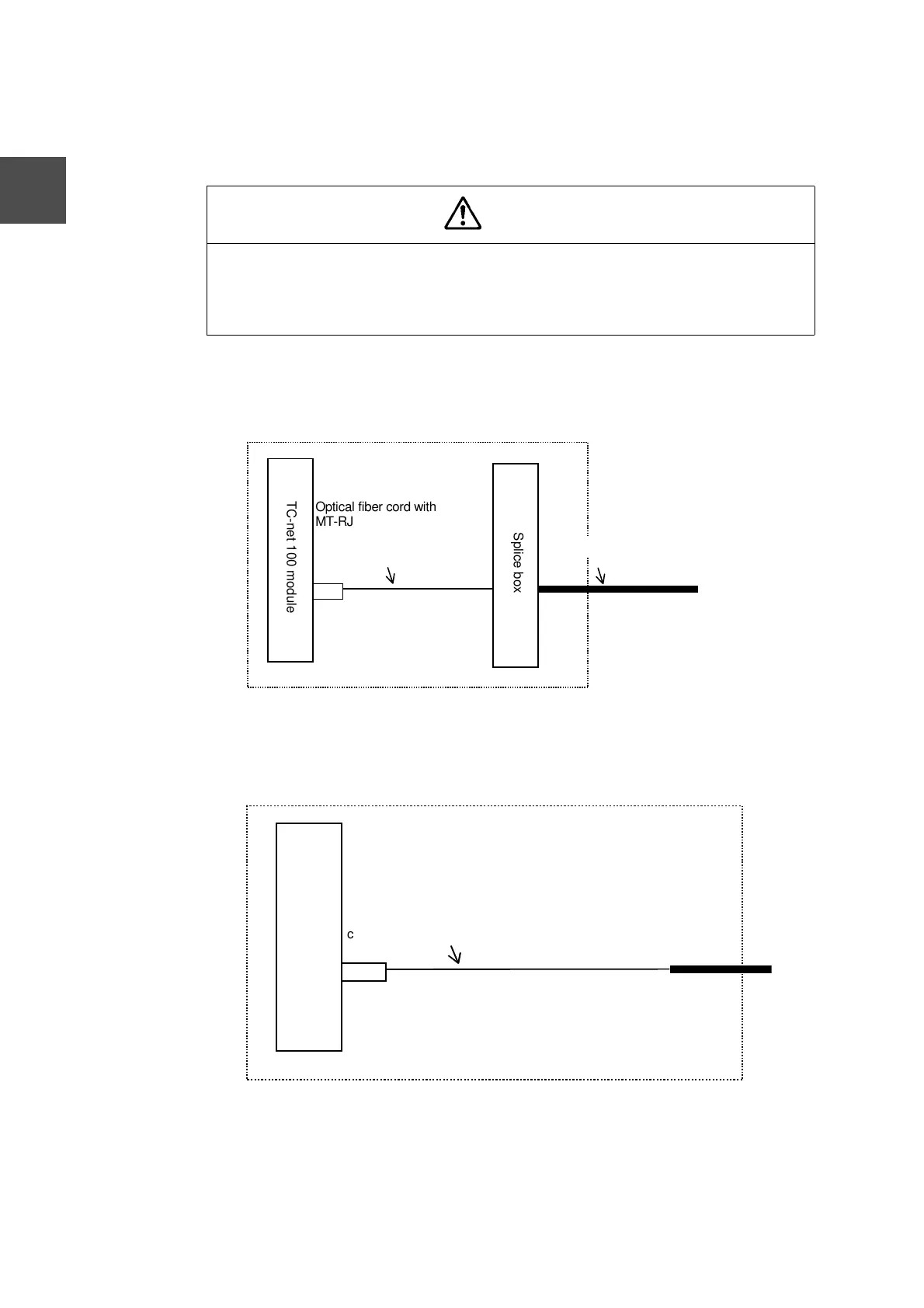

An example of wiring inside the cabinet using optical fiber cords is described below.

(1) Using a splice box

To connect a TC-net 100 module to a splice box in the cabinet, use an optical fiber

cord which has an MT-RJ connector at one end. Splice the optical fiber cord with the

optical fiber cable in the splice box before external wiring.

(2) Using a optical fiber cable with MT-RJ connectors (future)

Connect an optical fiber cable to a TC-net 100 module in the cabinet with its MT-RJ

connector. Pass the optical fiber cable directly outside for external wiring.

Caution

• In a system of dual transmission line configuration using TC-net 100 dual modules, connect

the TN-A of each TC-net 100 module to the line-A transmission line and the TN-B of it to the

line-B transmission line. Avoid mixed connection of TN-A and TN-B.

• For module wiring, refer to the User's Manuals for the individual TC-net 100 modules.









಼  /64, ֯

ǖǰǒǢౡ Ž

مǸǄǇǳǖ»Ǭ

ᗫৈ

مǸǄǇǳ ǔ»ǹȎ

TC-net 100 module

Splice box

Optical fiber cord with

MT-RJ connector at one

end

Optical fiber cable

Cabinet

TC-net 100 module

Optical fiber cable with MT-RJ

connector at both ends
