Tosot GWH09AFC-A3DNA2A/I - Extend Pipe

29

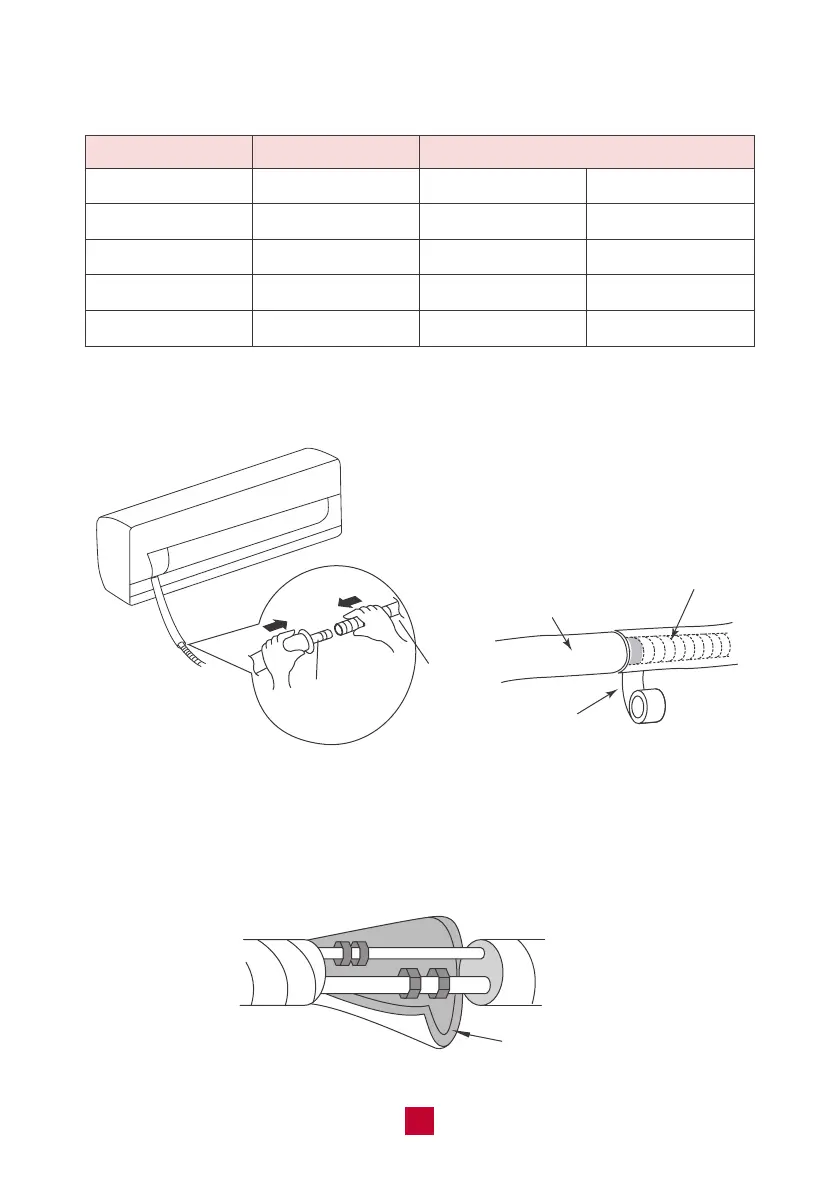

Pipe Diameter Nut Size
1/4 (6)
3/8 (9.5)
1/2 (12.7)
5/8 (16)
Torque Table
Tightening Torque
inch (mm)inch (mm) ft-lbs N-m
1/4 (17)
3/8 (22)
1/2 (25)
5/8 (29)
10 to 13
25 to 30
36 to 45
50 to 60
15 to 20
30 to 40
45 to 55
60 to 65
● Connect the drain hose to the outlet pipe of the indoor unit and secure the joint
with tape.
outlet pipe
drain
hose
drain hose
outlet pipe
tape
● Wrap the joints with the included insulating material to prevent condensation.
insulating pipe
