Be extremely careful not to dent or damage the piping while bending them
away from the unit. Any dents in the piping will affect the unit’s performance.
1 2
3 4
5. Drilling the piping hole on the wall
You must drill a hole in the wall for the wrapped bundle of pipes to connect the
indoor and outdoor units.

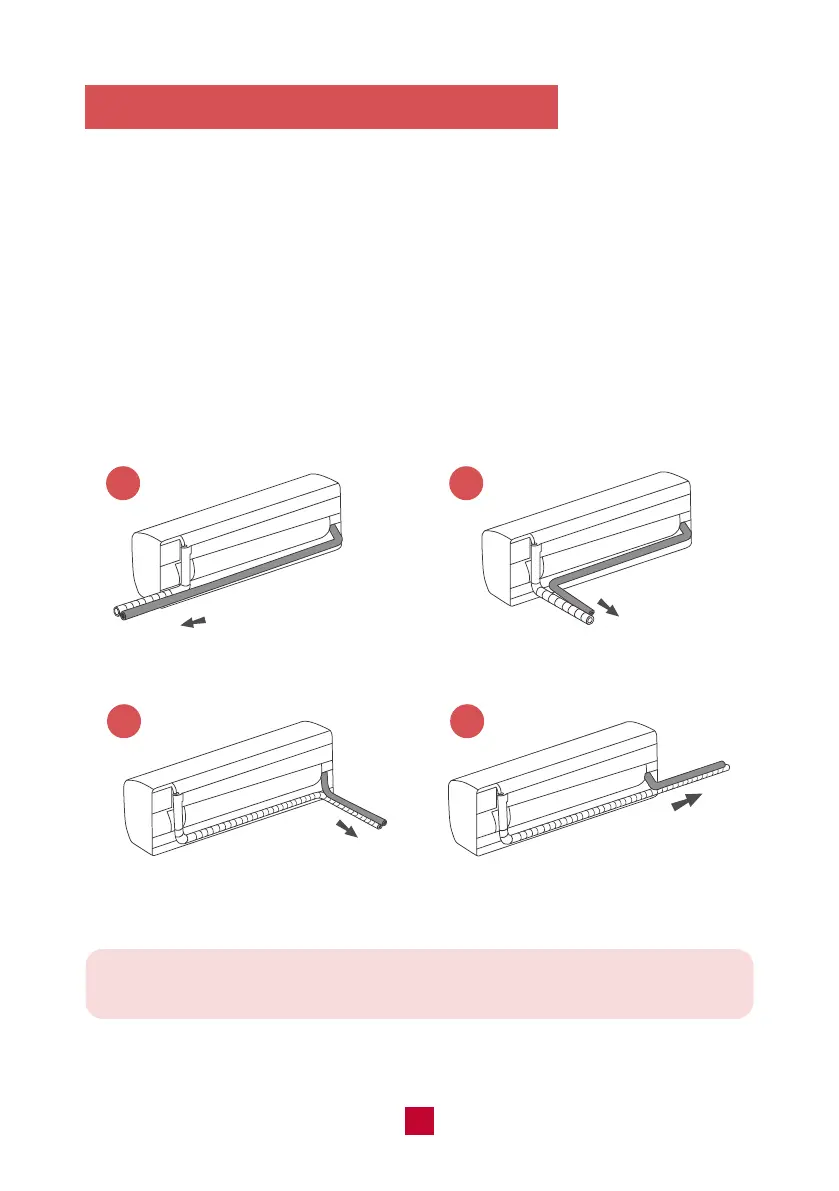

● Choose an appropriate location for the piping hole based on the position of the
mounting plate and the direction of the pipe. There are four directions you could
choose:
1. Out of the right side of the indoor unit
2. Out of the rear right side of the indoor unit
3. Out of the rear left side of the indoor unit
4. Out of the left side of the indoor unit
left
rear right
rear left
right
