32
6. Mount the Indoor Unit
● Insert the wrapped bundle of pipes and cables through the hole you just drilled.
Use some of the included sealing gum if there are any gaps between the bundle
and the wall hole.
● Mount the indoor unit onto the mounting plate.
● Make sure the indoor unit is securely mounted by applying pressure to the left
and right sides of the unit.

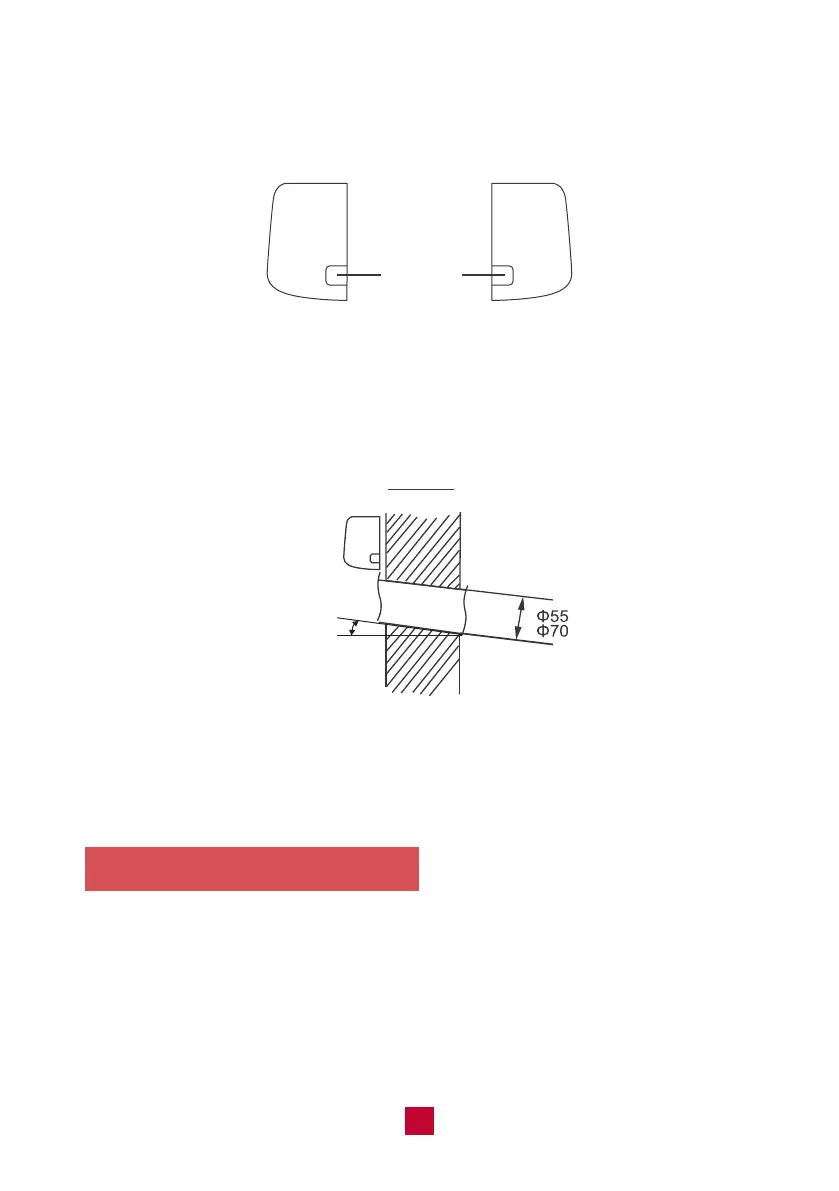

● If you choose a pipe direction out of the left or right side of the indoor unit, you
will need to knock out the corresponding hole on the bottom of the side panel.
Knock-out
Panel
Left Right
● Drill a hole with a 2.2/2.8 inch (55/70 mm) diameter through the wall where you
want the pipe to go through. To ensure better drainage, slope the hole at a slight
5-10 degree angle downwards. The hole should be drilled lower than the
mounting plate, as shown in the example figure below.
Indoor outdoor
Indoor unit
5-10°
● Place the protective wall cuff in the hole. This protects the edges of the hole and
will help seal the hole when you finish installation.
To Next Page
