65
Installation and Maintenance
Service Manual

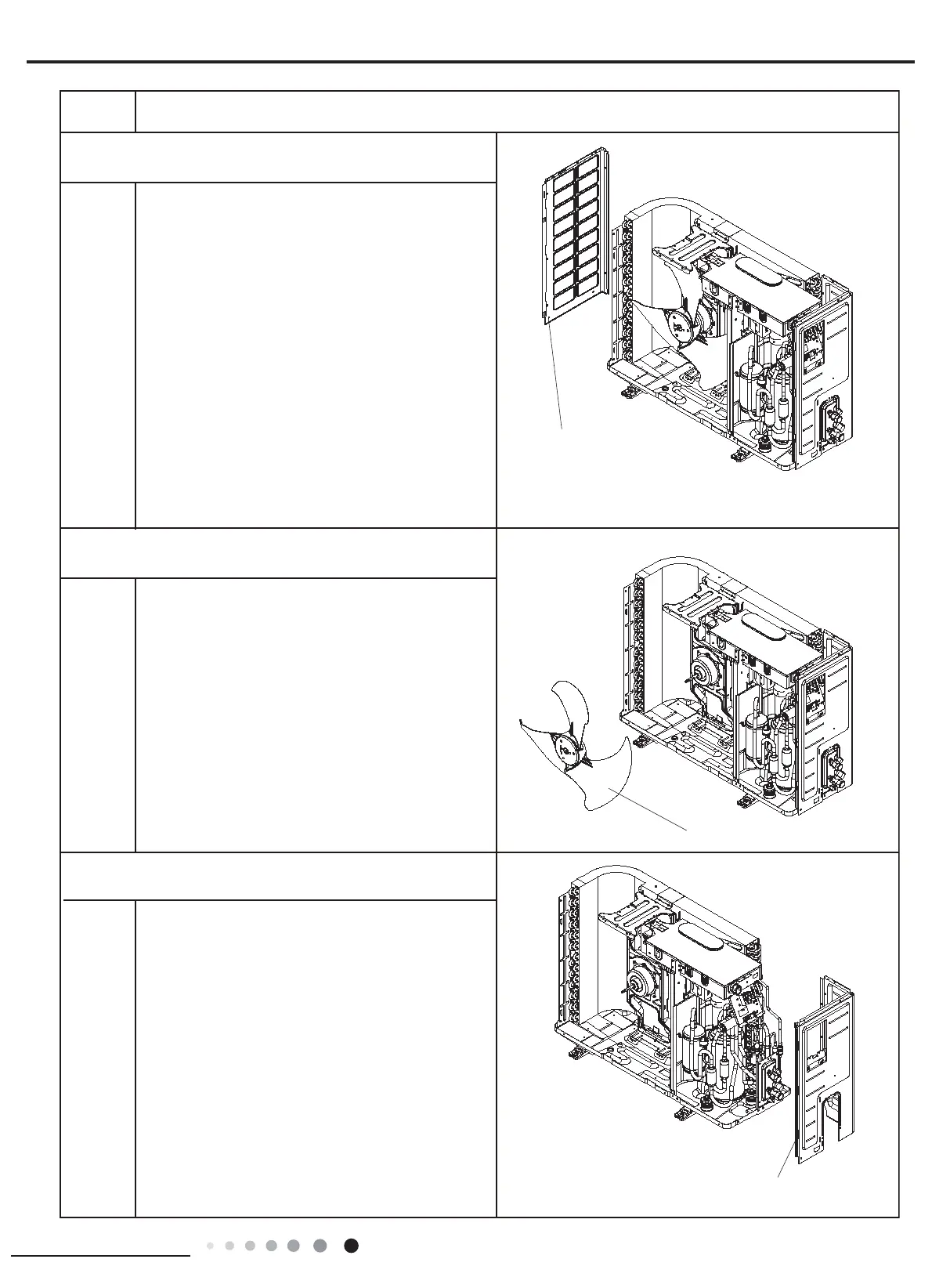

6. Remove right side plate
5. Remove cross fan blade
4. Remove left side plate
Remove the screws fixing left side plate and
condenser support boa rd, to remove the left side
plate.
Remove the screws fixing right side plate and valve
support, to remove the right side plate.
Remove the screw nut fixing cross fan blade, remove
the gasket and spring cushion, to remove the cross
fan blade.
left side plate
cross fan blade
right side plate
Steps
Procedure
67
69
Table of Contents
Default Chapter
2
Table of Contents
2
Part Ⅰ : Technical Information
4
1 Summary
4
2 Specifications
5
Specification Sheet
5
Operation Characteristic Curve
7
Capacity Variation Ratio According to Temperature
7
Cooling and Heating Data Sheet in Rated Frequency
8
Noise Curve
8
3 Outline Dimension Diagram
9
Indoor Unit
9
Outdoor Unit
9
4 Refrigerant System Diagram
10
5 Electrical Part
11
Wiring Diagram
11
PCB Printed Diagram
13
6 Function and Control
15
Remote Controller Introduction
15
Ewpe Smart App Operation Manual
20
Brief Description of Modes and Functions
21
Part Ⅱ : Installation and Maintenance
26
7 Notes for Installation and Maintenance
26
8 Installation
29
Installation Dimension Diagram
29
Installation Parts-Checking
31
Selection of Installation Location
31
Requirements for Electric Connection
31
Installation of Indoor Unit
31
Installation of Outdoor Unit
34
Vacuum Pumping and Leak Detection
35
Check after Installation and Test Operation
35
9 Maintenance
36
Error Code List
36
Procedure of Troubleshooting
43
Troubleshooting for Normal Malfunction
56
10 Exploded View and Parts List
58
Indoor Unit
58
Outdoor Unit
60
11 Removal Procedure
62
Removal Procedure of Indoor Unit
62
Removal Procedure of Outdoor Unit
67
Appendix
72
Appendix 1: Reference Sheet of Celsius and Fahrenheit
72
Appendix 2: Configuration of Connection Pipe
72
Appendix 3: Pipe Expanding Method
73
Appendix 4: List of Resistance for Temperature Sensor
74
