9. Remove motor and motor support
8. Remove electric reactor
7. Remove electric box assy
Remove screws fixing electric box assy and
mid-isolation board, loosen the bonding tie, pull off the
wiring terminal, lift to remove the electric box assy.
Remove the four tapping screws fixing motor, pull out
the contact tag of motor wiring, to remove the motor.
Remove the two tapping screws fixing motor support
and chassis, lift to remove the motor support.
Remove the screws fixing electric reactor, to remove
the electric reactor.

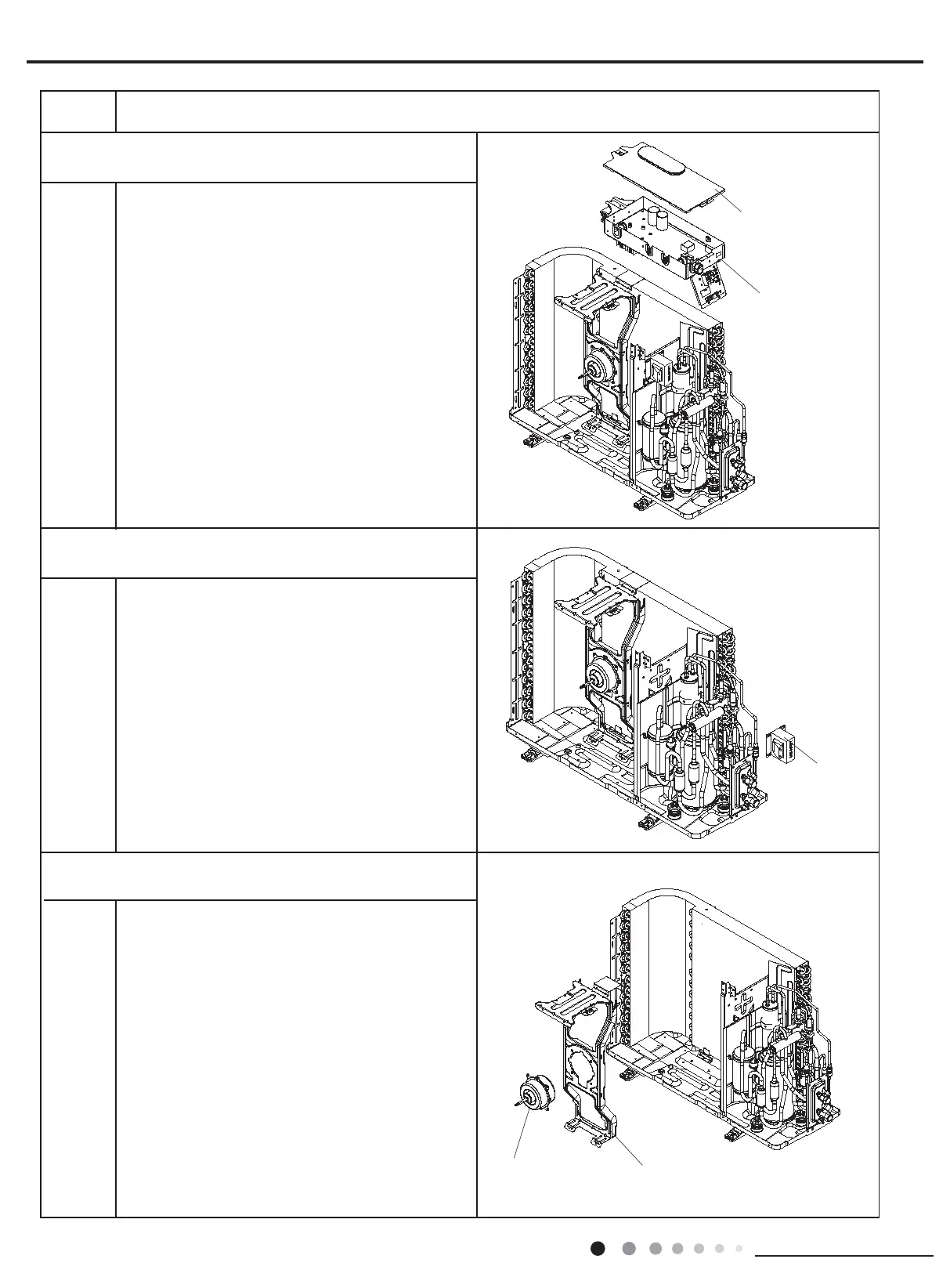

electric box assy
electric box cove
r
electric
reacto
r
motor support
motor
