Tosot U-match Series - When Outdoor Units Are Installed in Rows; When Outdoor Units Are Installed One above Another

DC Inverter U-match Series for R410A Unitary Split Air Conditioner
10

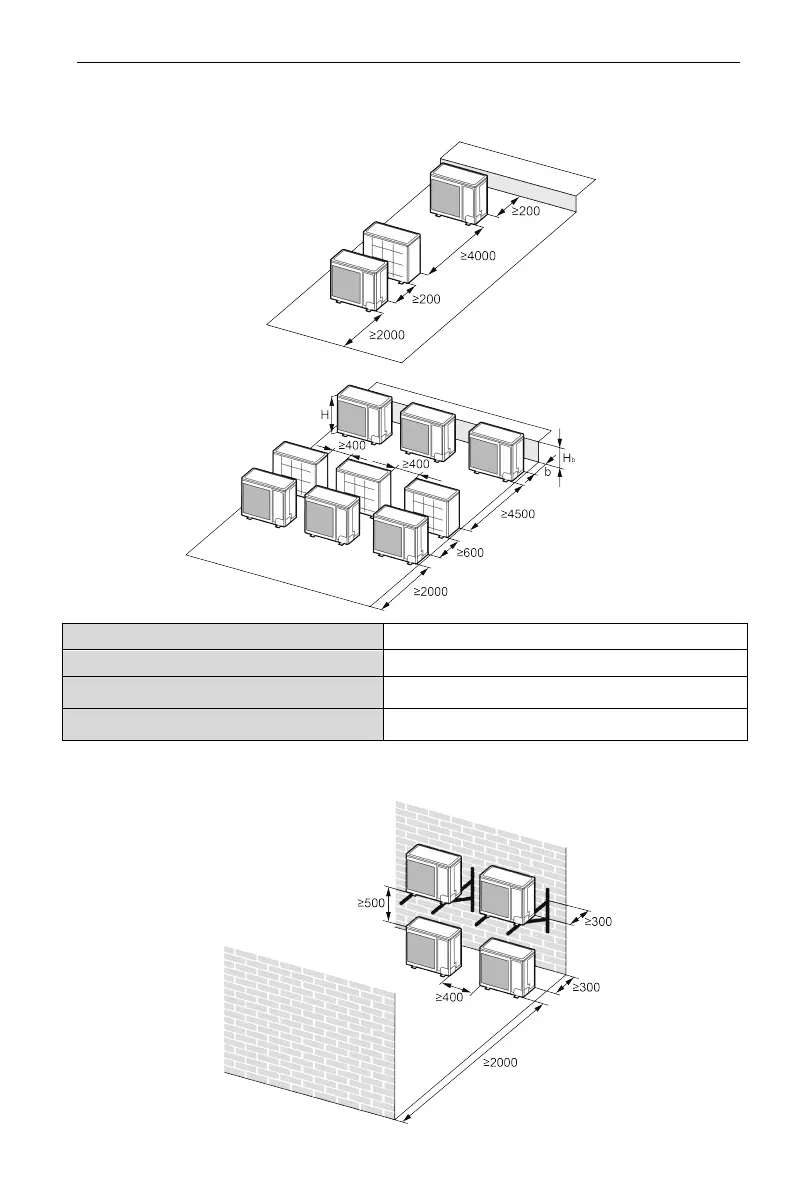

3) When outdoor units are installed in rows.
Unit: mm
H
b
H
(mm)
H
b
≤ 1/2H
b ≥ 250
1/2H
＜
H
b
≤ H
b ≥ 300
H
b
＞
H
Prohibited
4) When outdoor units are installed one above another.
Unit: mm
