Tosot U-match Series User Manual

DC Inverter U-match Series for R410A Unitary Split Air Conditioner
17

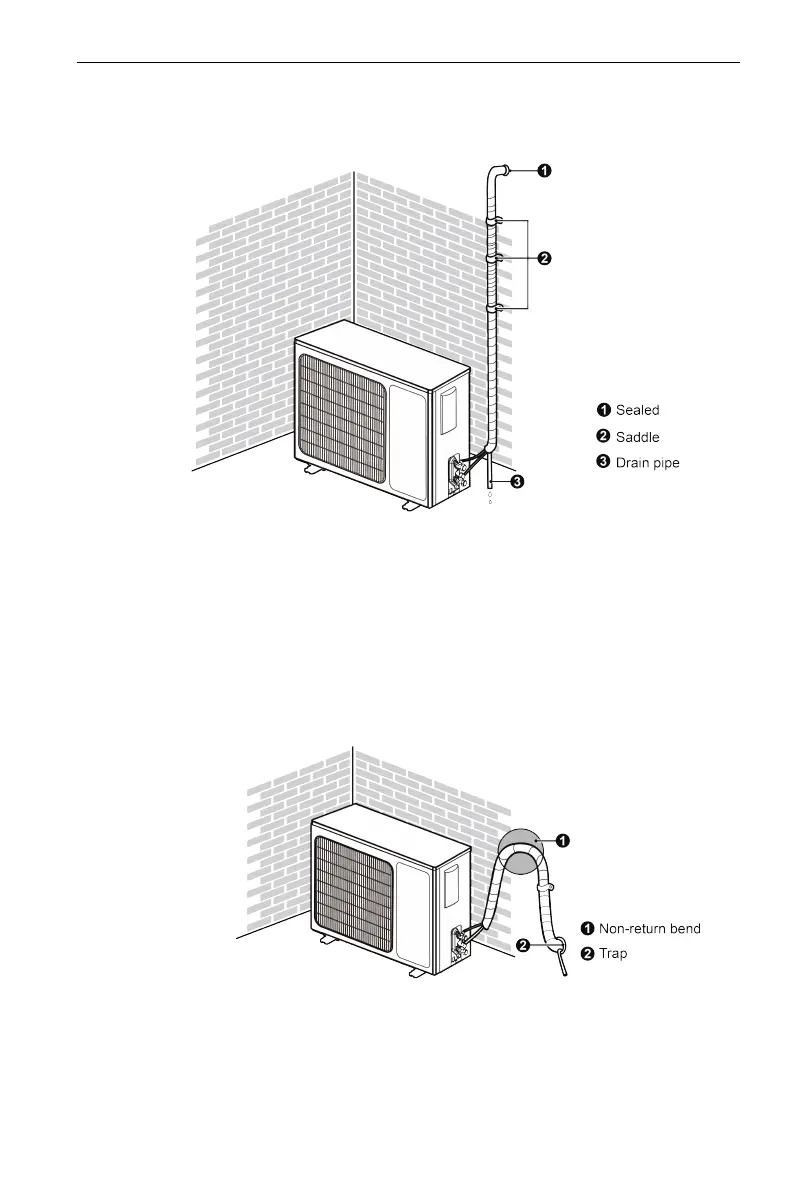

3) The whole pipeline should be wound with insulating tape and fixed onto
the wall with saddles.
(2) If the outdoor unit is above the indoor unit, arrange the pipeline according to
the following diagram.
1) Wind the insulating tape from bottom to top.
2) The whole pipeline should be wound together to avoid water returning
to the room.
3) Use saddles to fix the whole pipeline onto the wall.
