Tosot U-match Series User Manual

DC Inverter U-match Series for R410A Unitary Split Air Conditioner
20
Unit:mm(inch)
(3) How to connect the the thermostat wires and power cords.

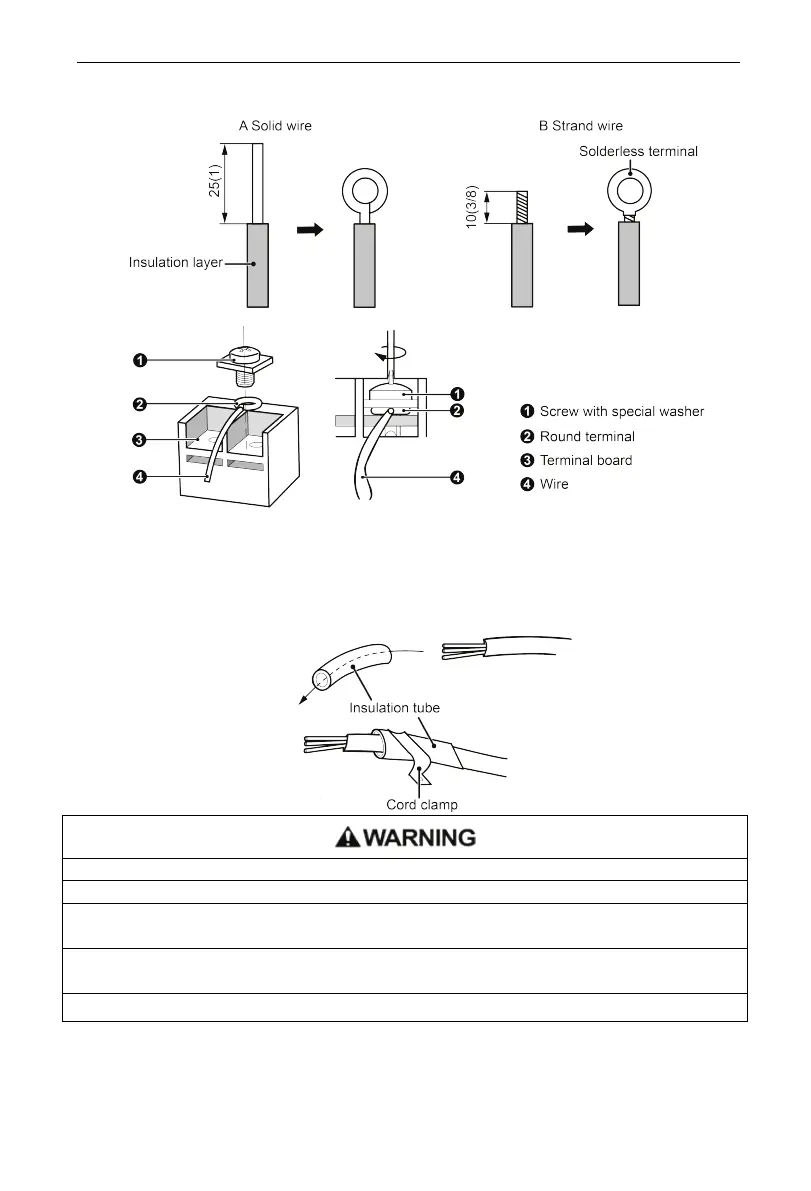

Lead the thermostat wires and power cords through the insulation tube. Then
fix the wires with wire clamps (as shown in the following figure).
①
.
Before working, please check whether the units are powered on.
②
.
Wrong wire connection may burn the electrical components.
③
.
Connect the wires firmly to the wiring box. Incomplete installation may lead to
fire hazard.
④
.
Please use wire clamps to secure the external covers of thermostat wires.
(Insulators must be clamped securely; otherwise, electric leakage may occur.)
⑤. Ground wire should be connected.
