Installation Procedure
Location
How to install:
• Choose a location where the are no obstacles surrounding the unit, and where the plug is easily
accessible.

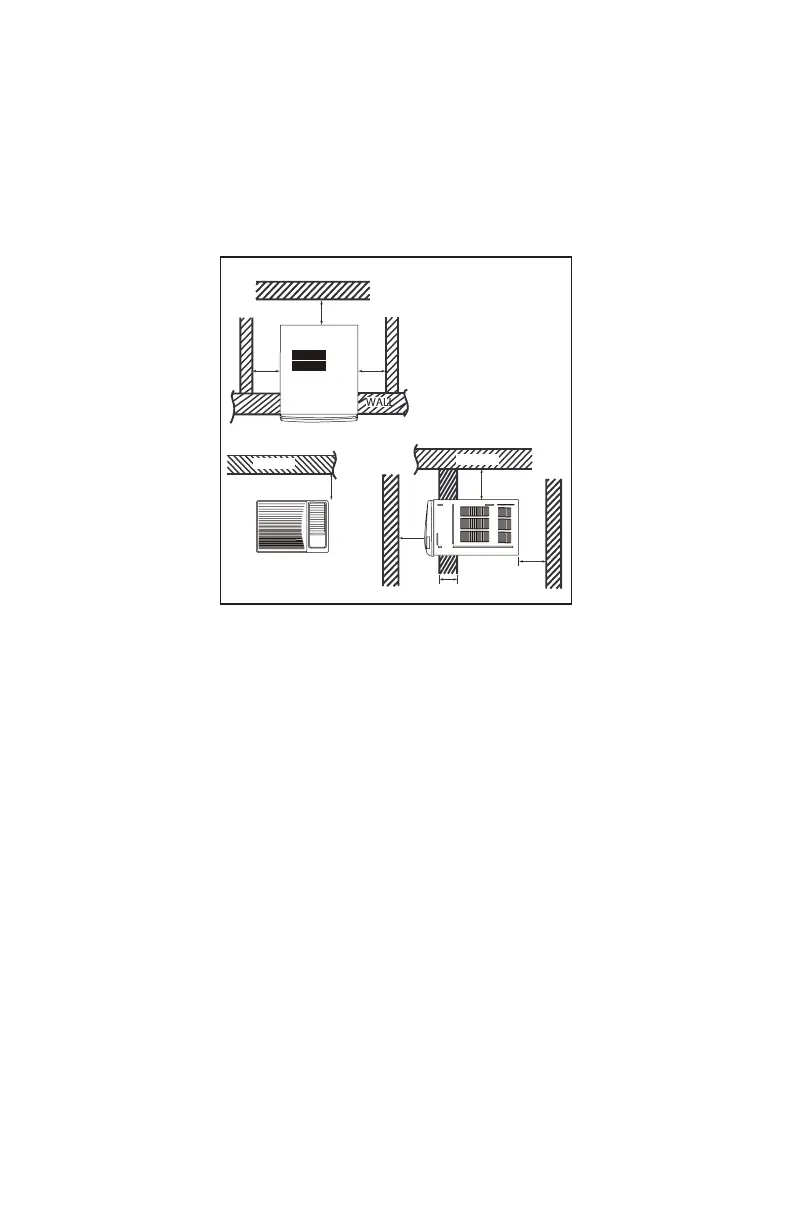

• Choose the installation space according to Figure A. The distance of obstructions from the
inside window unit should respect the dimensions indicated on Figure A.
Figure A
Basic requirements of location:
• Should not be near a place with strong heat sources, vapors, flammable or explosive gas, or
volatile objects spread in the air.
• Should not be near a place with high-frequency devices (such as welding machine, medical
equipment).
• Should not be near a place with oil or fumes in the air.
• Should not be near a place with sulfurated gas.
• There should be no obstruction near air inlet and air outlet.
• Select a location where the condensation water can be dispersed easily and won't affect other
people.
• The location should be able to withstand the weight of the unit and won't increase noise and
vibration.
• Try to keep far away from fluorescent lamp.
Top View
Front View Ceiling
Side View
Wall
Wall
Fence or
likewise
>500
mm
>500
mm
>300
mm
>300
mm
>500
mm
>1500
mm
<200 mm
>500
mm
To Next Page
