Step 6:
To secure lower sash in place, attach right angle sash lock with screw as shown.
NOTE: It is difficult to lock the windows with the sash lock for Vinyl-Clad windows, so you can use
window itself to lock.

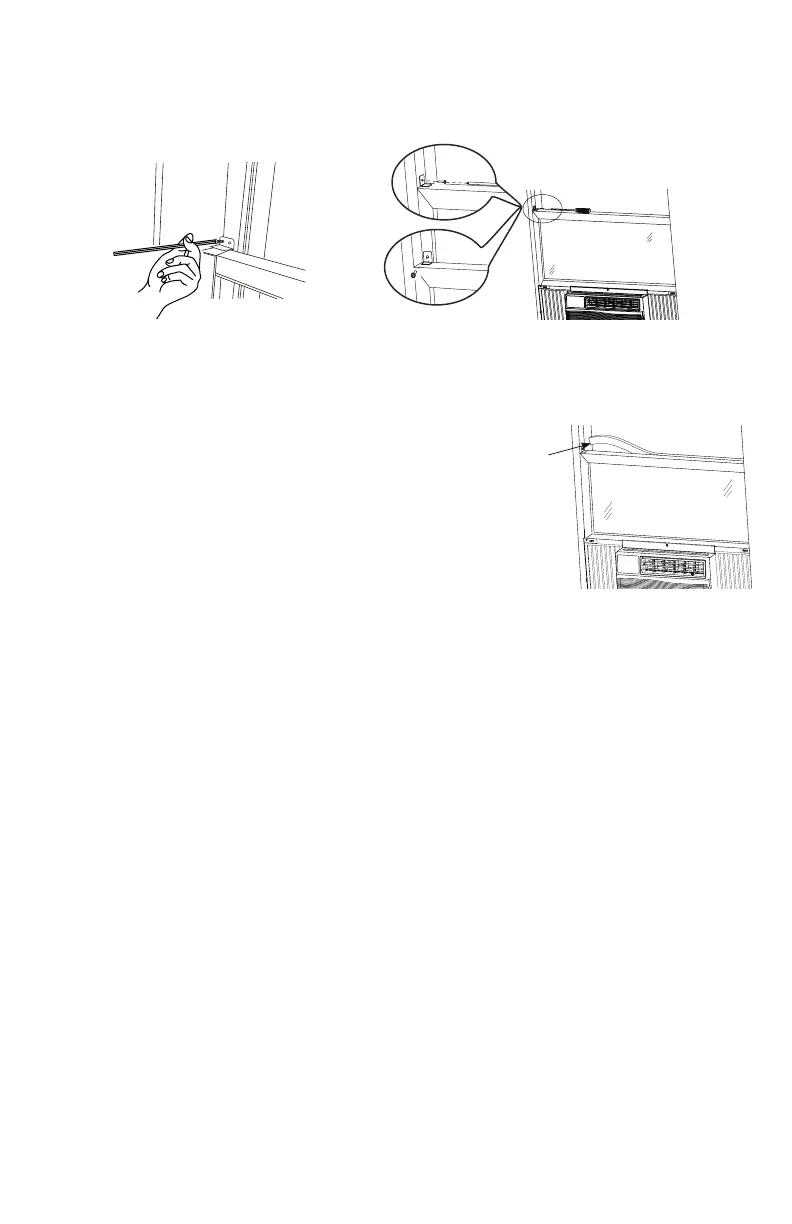

Figure 9A Figure 9B
Plastic
window
Wooden
window
Step 7:
Cut the sealing strip the length of window. Plug the
sealing strip between glasses and window to prevent
rain and insects getting into the room (Figure 10).
NOTE: If the sealing strip is not suitable for your
window, it can be replaced.
Removing the air conditioner from window
1. Turn the air conditioner off and disconnect power cord.
2. Remove sash seal from between windows and unscrew sash lock.
3. Remove screws installed through frame and frame lock.
4. Close (slide) side panels into frame.
5. Keeping a firm grip on air conditioner, raise sash and carefully remove.
6. Be careful not to spill any condensate water while lifting unit from window.
7. Store parts WITH air conditioner.
Sealing strip
(without
adhesive)
Figure 10
