12/32
5. ASSEMBLY AND INSTALLATION
5.1. Packing list
Description Amount Reference
Handle with chain 1 144TA6476
Axle 1 144TA6459
Elastic pin 1 144TA6460
Frame 1 Contact your
dealer
Operating manual 1 166TA6847
Spare parts list 1 166TA6506
5.2. Safety instructions for assembly and installation of the product
• Wear safety gloves and safety shoes when assembling the pallet truck.
• Position the pallet truck on a level surface.
• Be careful when removing the packaging.
5.3. Required material for assembly
• Hammer
• Utility knife

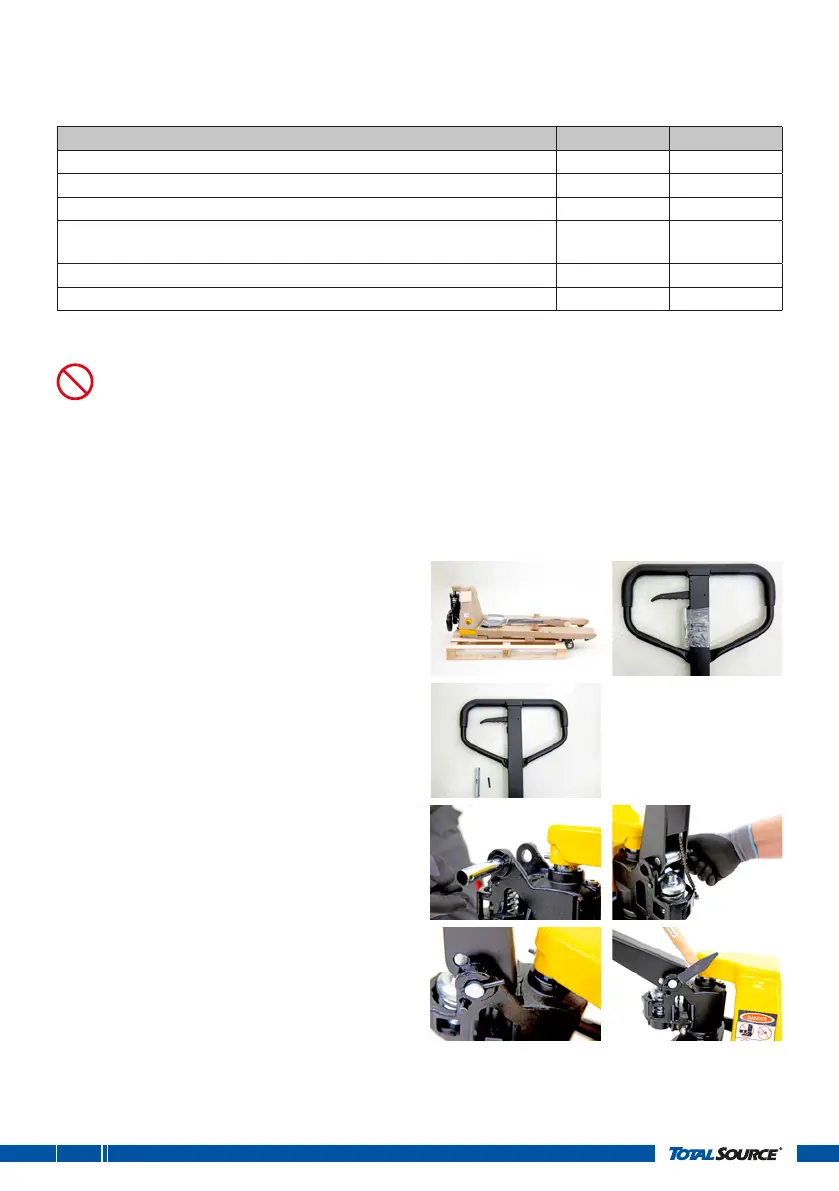

5.4. Assembly of the tiller handle and commissioning the pallet truck
1. Remove the cardboard packaging from
the lever.
Attention: the axle for the installation of
the lever is included in the lever
2. Take the lever, the axle and the split pin.
3. Insert the axle in the pump through the
holes in the pump and through the holes
of the lever from right to left.
4. Now secure the axle with the elastic pin.
