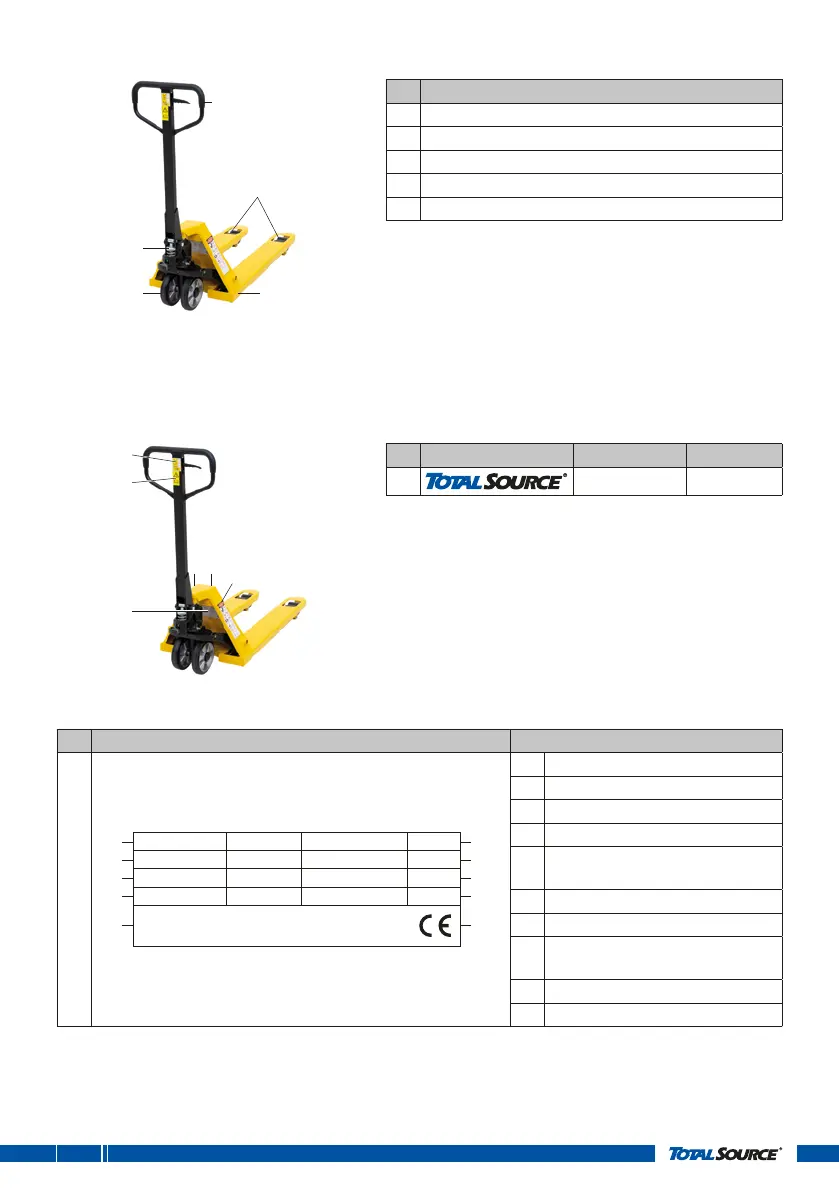

2.2. Main components of the product
1
4
5
2
3
N° Component
1 Tiller with handle
2 Pump unit
3 Steering wheels
4 Frame
5 Fork wheels
2.3. Placement of the decals
The safety and warning labels should be placed as described in the pictures below.
See chapter3 for the explanation of the safety warnings. If the decals are damaged or
missing, replace them.
6
3
1 4
5
2
N° Decal Explanation Reference
1
Brand decal 166TA2311
2.4. Type plate
N° Type plate Explanation
2
Type of pallet truck
Manufactured outside the EU for:
TVH PARTS HOLDING NV
Brabantstraat 15 • 8790 Waregem • Belgium
xxxx Fork length xxxx mm
Serial n° xxxxxx Width over forks xxx mm
Capacity xxxx kg Wheels xxx
Net weight xx kg Year of manufacturing xxxx
1 6
7
8
9
10
2
3
4
5
1 Type of pallet truck
2 Serial number
3 Capacity of the pallet truck
4 Weight of the pallet truck
5 Name and address of the
manufacturer
6 Length of the forks
7 Width across the forks
8 Wheel combination
(fork wheels/steering wheels)
9 Year of manufacture
10 CElogo
