INSTALLATION PROCEDURE

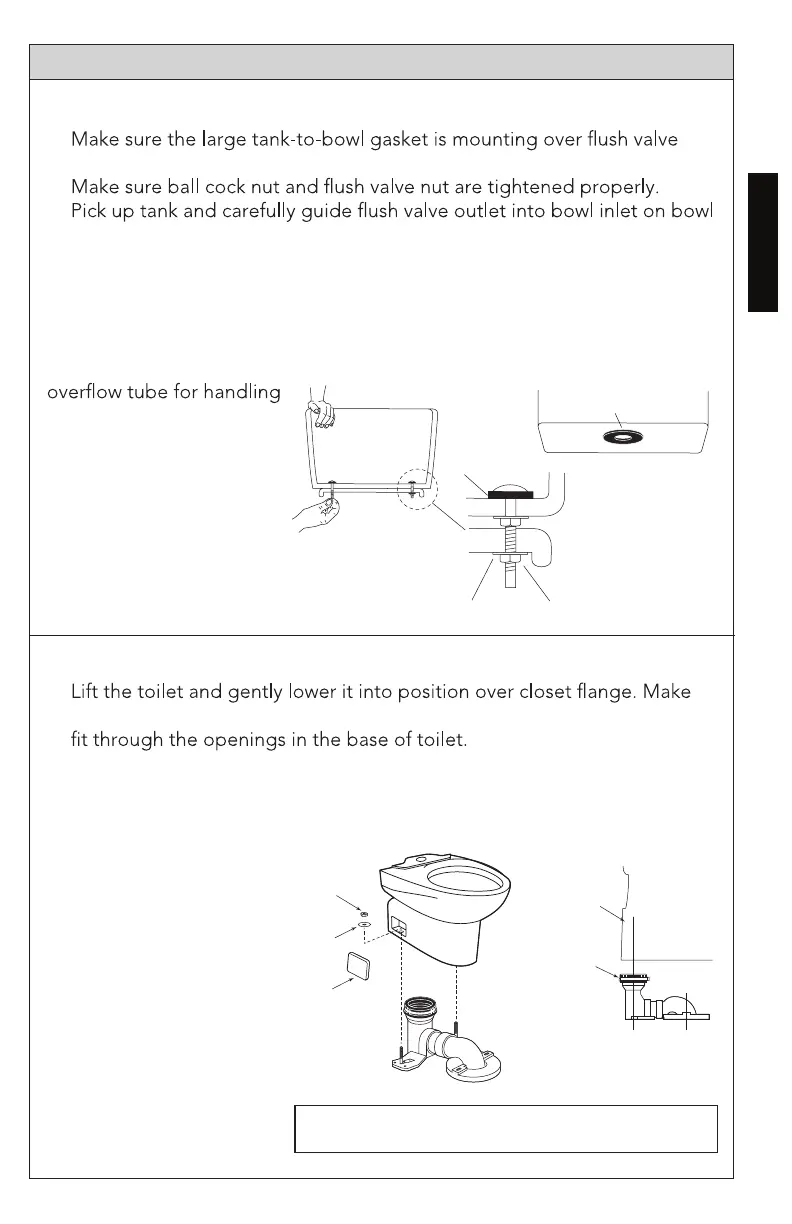

Tank to Bowl Mounting
outlet on underside of tank.
inlet in bowl tank shelf.
Place washers on mounting bolts. Support tank and align mounting bolts
through ½" holes in tank base and bowl mount shelf.
Thread on nuts end, hand tighten before releasing the tank.
Tighten nuts evenly until tank sets snug on bowl.
NOTE: Do not grab the
Installing Toilet
sure that the spigot outlet of toilet slips into rubber sleeve and T-bolts
Insert washer and thread nuts on to bolts and hand tighten.
Tighten bolts an additional ½ turn.
Install cover plates.
Tank-to-Bowl Gasket
Rubber Washer
Tank
Bowl
Brass Washer Brass Nut
spigot outlet
rubber
sleeve
nut
washer
Cover
Plate
WARNING: DO NOT over tighten the nuts, damage to
china or plastic parts may result.
the tank.
