4
ENGLISH
2) Drill four 11/64” holes on the oor at
the location shown in the Unifit Rough-
In installation instructions found in
the Rough-In box (see Illustration 2).
(5/16” holes are for concrete / tile oor
anchors).
3) Turn the PVC outlet connection upside
down. Firmly press a new wax seal onto
the circular recess around the outlet
opening. Turn the outlet connection
upright and lower it into position over
the closet ange. With the unit properly
aligned, press down firmly to set the
wax seal (see Illustration 3).
CA UTION: Do not move the outlet
connection after the wax seal is set.
4) Insert the washers and thread nuts onto
the mounting bolts and hand-tighten
(see Illustration 4). Then tighten bolts
an additional ½ turn. Secure the back
side of the outlet connection to the
oor using the 4 screws and washers.
Insert the T-bolts into the slots with the
head down and threaded shank pointed
upward.
NO TE: Do not remove the white tie-
wrap from rubber sleeve. Level the
PVC outlet. Do not use excessive
force.
Wax Seal
Ill. 3
T-Bolts
Nut
Bolt
Slot
Ill. 4
C
2"
B
A
Finished Wall
C/L
Floor
Closet Flange
Ill. 2

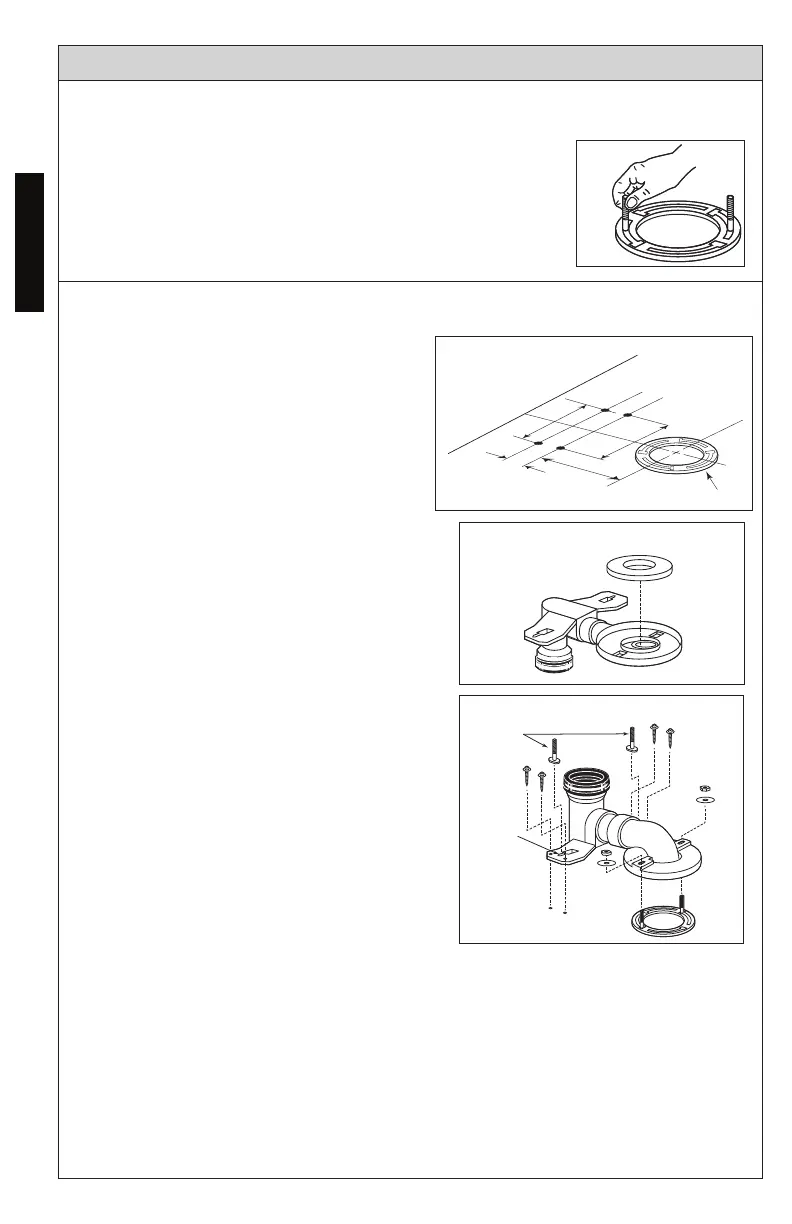

INSTALLATION PROCEDURE
Ill. 1
Install Mounting Bolts
Install Outlet Connection
1) Clean any debris out of the closet ange, then install
the mounting bolts into the slots of the ange. The
bolt should be inserted into the slot with its head down
and threaded shank pointed upward (ill. 1)
