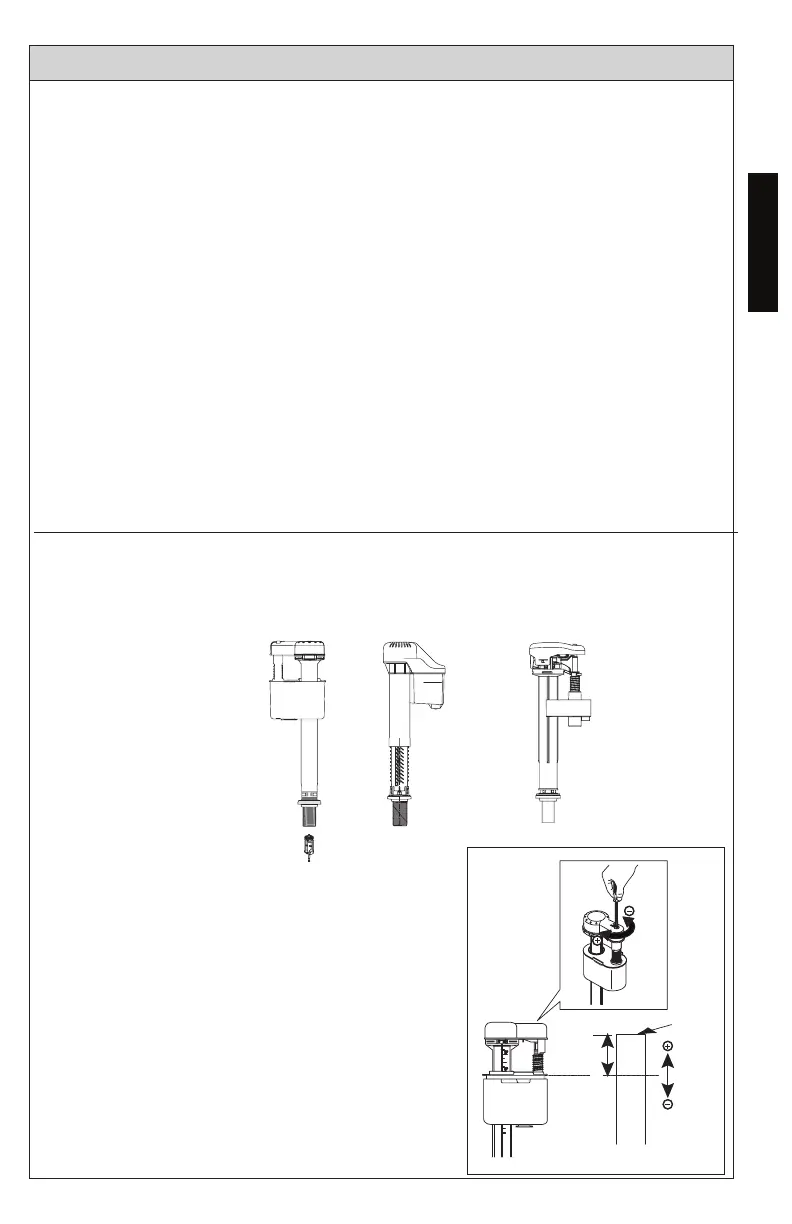

Water Level Adjustment
Depending on the manufacturing plant, you may have one of two of the following fill
valves:
Type A
Type B
Water Level
For Type A and C Fill Valve:
Refer to the water level (WL) setting marked
on the inner wall of the tank. Allow the wa-
ter to ll the tank. Turn the adjustment screw
clockwise in the (+) direction to increase the
water level height (see Illustration 1). Turn
the adjustment screw counter-clockwise in
the (-) direction to decrease the water level
height. Flush the toilet to verify the correct
water level. Adjust as necessary.
For Type B Fill Valve:
There are no water level adjustments. The
fill valve has been preset at the factory.
Top of
Overow
Tube
Water
Level
Ill. 1
Type C
7) Connect water supply to ll valve shank and hand-tighten only.
NO TE: Do not overtighten. These are plastic parts. Never use pipe dope on any
water supply connection.
8) Attach rell tube to ll valve nipple and clip other end of rell tube to the overow
pipe.
9) Turn water supply ON and check for leaks outside the tank.
NO TE: As water lls the tank, water is also directed into the overow tube via the
rell tube. This additional ow of water is critical to relling your toilet’s bowl.
Once the water stops filling the tank, some residual drops of water may drip
from the ll valve. This is NORMAL as these drops will subside.
MAINTENANCE INSTRUCTIONS
Fill Valve Replacement Procedure
1) Shut off the water supply to the toilet.
2) Flush toilet and remove remaining water from tank with a sponge.
3) Remove the water supply connection at the ll valve.
4) Remove old ll valve and use damp sponge to clean hole in tank.
5) Place new ll valve inside tank hole.
6) Thread mounting nut onto ll valve shank and tighten the nut.
NO TE: Do not over-tighten. Be sure to install fill valve in a position that does not
interfere with the trip lever operation.
