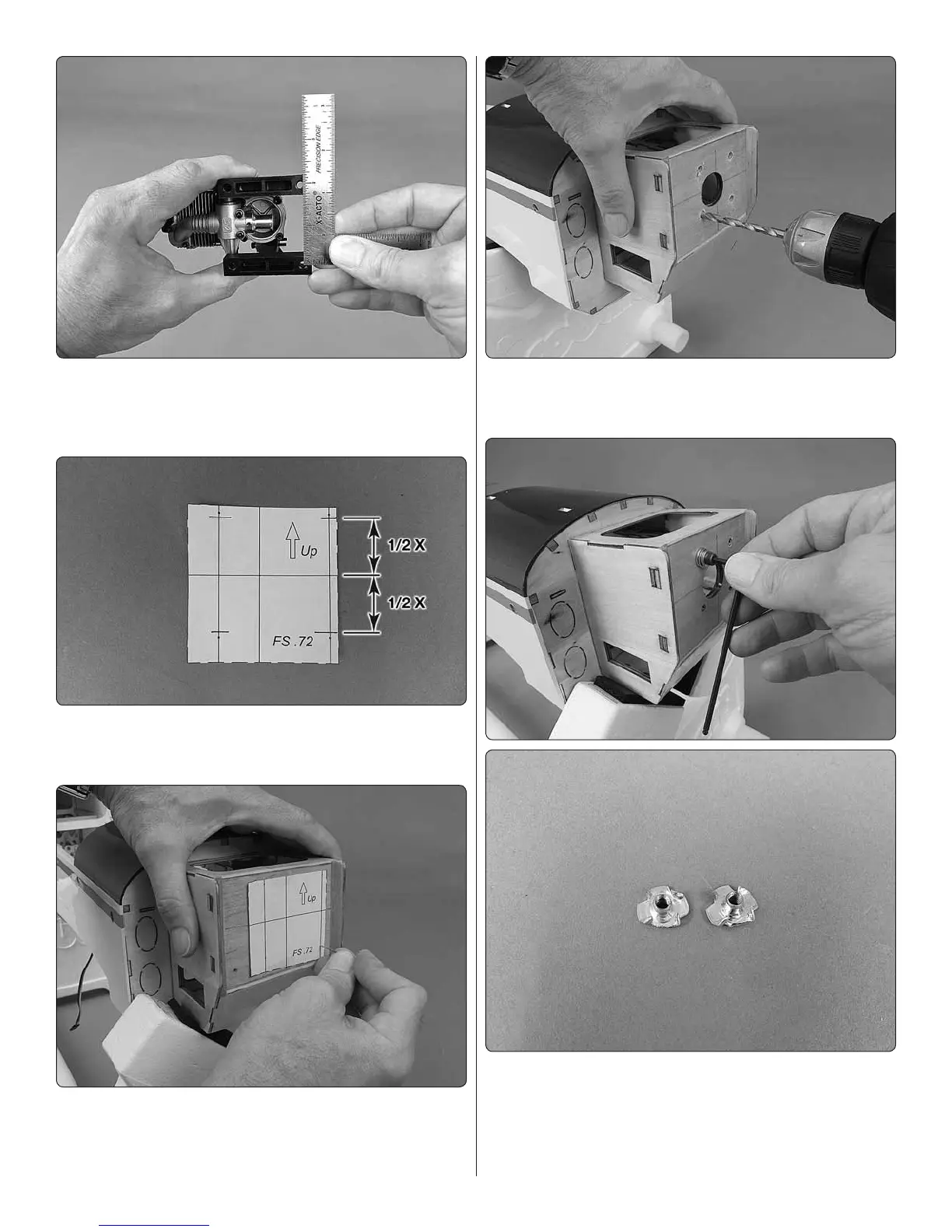

9. If neither template matches the spacing of the mount on
your engine, you can make your own template out of one of
the existing ones. Measure the distance between the holes
of the mount halves.
❏
10. Mark “crossmarks” on the vertical lines above and
below the centerline half the distance of the measurement
you came up with in the previous step.
❏
11. Tape the template to the rewall with the crossmarks
on the template aligned with the crossmarks on the rewall.
Push a pin into the rewall through the marks in the template
that align with the mounting holes in the engine mounts.
❏
12. Remove the template from the rewall. Drill 1/16"
[1.6mm] pilot holes through the rewall at the pinpoints.
Enlarge the holes with a 13/64" (or 7/32") drill.
❏
13. Use an M4 x 20 SHCS (socket-head cap screw) with
a stack of washers and a 3mm Allen wrench to draw the M4
blind nuts into the back of the rewall. Note: If the top of
the engine mount box interferes with the top two blind nuts,
grind one edge of the blind nuts so they will t.
