9
❏
10. Pull the other end of the Y-harness through the other
side of the wing and mount the other hatch.
Hook Up the Ailerons

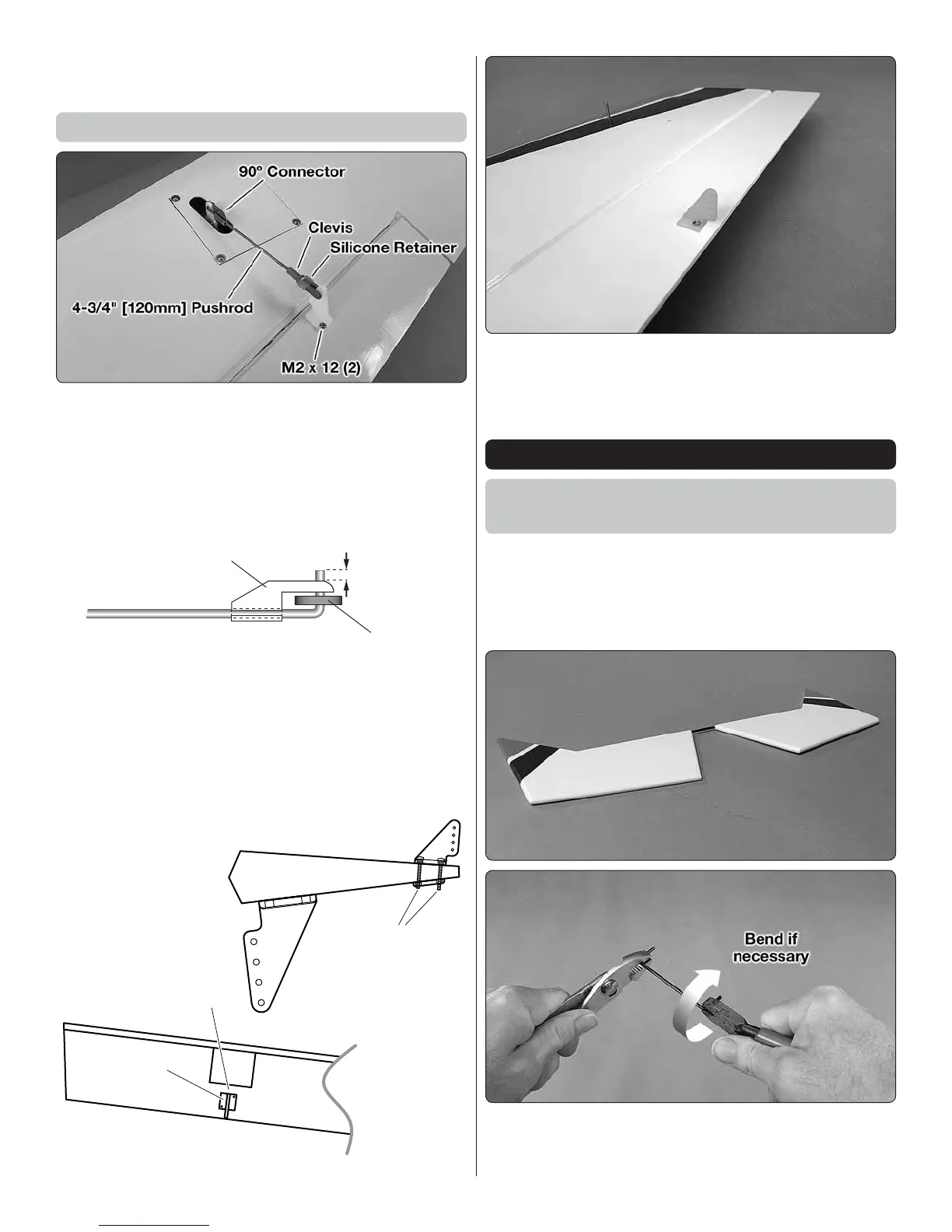

Refer to this image while mounting the aileron servos
and hooking up the ailerons.
Do the left wing rst…
❏
❏
1. Thread a clevis about fteen full turns onto a 4-3/4"
[120mm] aileron pushrod. Make a second assembly the
same way.
1/16" [1.5 mm]
Servo Arm
90º Connector
❏
❏
2. Bend and cut the pushrods to the correct length,
then connect the aileron servos to the ailerons using the
hardware shown. Drill 1/16" [1.6mm] holes into the ailerons
for the M2 x 12 screws. After installing the screws, remove
the screws, add a few drops of thin CA to the holes, allow to
harden, then reinstall the screws. Adjust the clevises on the
pushrods so the ailerons will be centered when the servos
are centered.
M2 x 10
For Bottom Ailerons Only
Small Control Horn
Centered Behind
Mounting Plate
❏
❏
3. If not installing aileron servos in the top wing, mount
a small control horn to the top surface of the bottom ailerons
in the location illustrated in the image above and in the
illustration on the bottom of the column to the left.
ASSEMBLE THE FUSELAGE
Install the Horizontal Stabilizer
and Vertical Stabilizer
❏
1. If you haven’t already done so, remove the masking tape
holding the elevators to the horizontal stabilizer. Any residual
glue from the masking tape can be removed with naptha
(lighter uid) and a small paper towel square. If necessary,
use your covering iron to tighten the covering.
❏
2. Test- t the elevator joiner wire to the elevators. If the
elevators do not align with each other (as in the image), use
pliers to “tweak” the joiner to get the elevators aligned.
To Next Page
