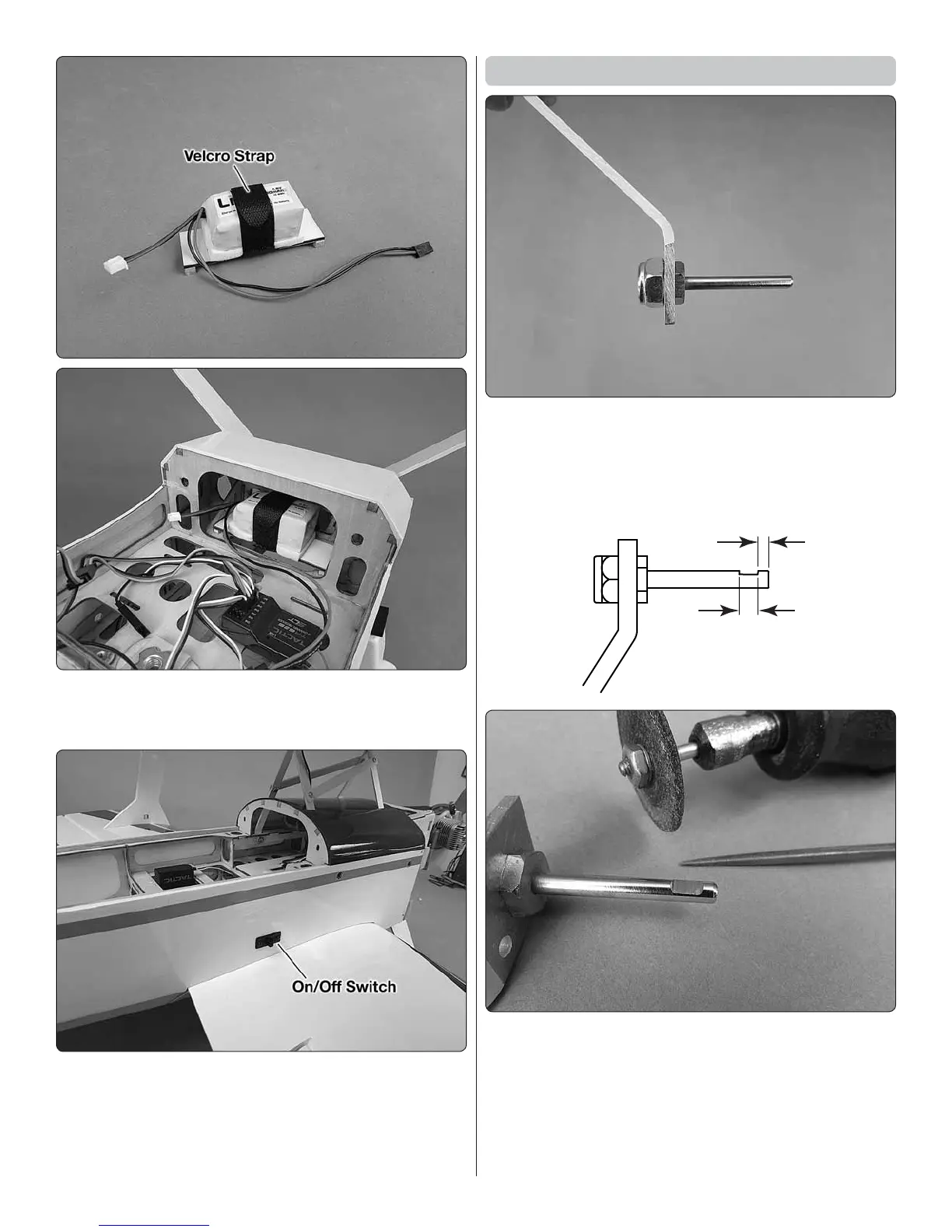

3. If using the optional battery tray, mount the receiver
battery to the tray and glue it into position with two pieces
of the included ¼" x ¼" [6 x 6mm] balsa stick.
❏
4. If using an on/off switch, use the mounting plate as
a template to cut holes in the fuselage for the switch, then
mount the switch.
Mount the Main Landing Gear
❏
1. Fasten the wheel axles to the main landing gear with an
8mm lock nut – be certain to use threadlocker on the threads
as the threaded portion of the axles does not engage the
nylon locking part in the nuts.
❏
2. Use a reinforced cutoff wheel and/or a metal le to grind
a ¼" [6mm] at spot 1/8" [3mm] from the end of both axles.
