10. INSTALL NO.2 OIL PAN
(a) Remove any old packing (FIPG) material and be care–
ful not to drop any oil on the contact surface of the
No.1 and No.2 oil pans.
• Using a razor blade and gasket scraper, remove
all the old packing (FIPG) material from the
gasket surfaces and sealing grooves.
• Thoroughly clean all components to remove all
the loose material.
• Using a non–residue solvent, clean both sealing
surfaces.
NOTICE: Do not use a solvent which will affect the point–
ed surfaces.

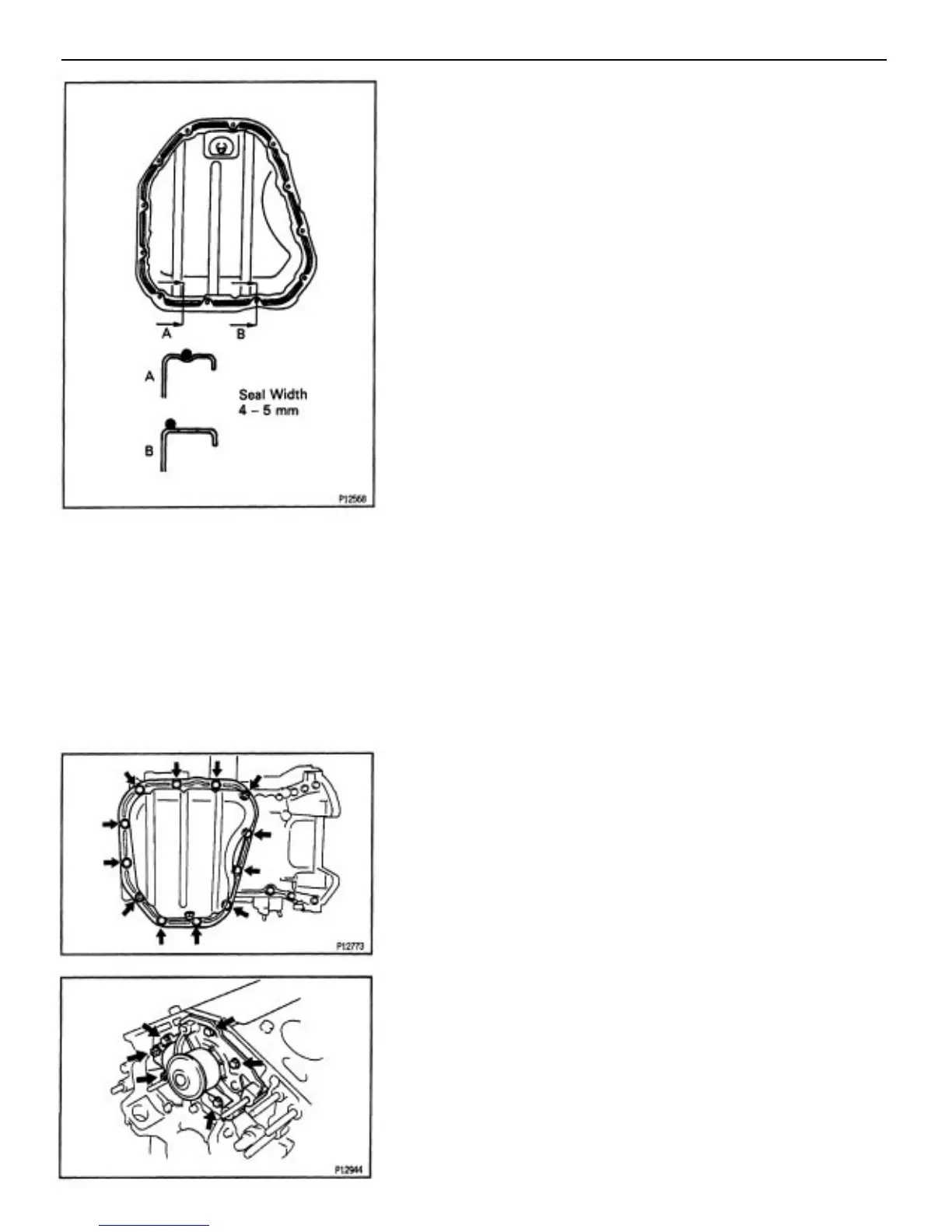

(b) Apply seal packing to the No.2 oil pan as shown in the
illustration.
Seal packing:
Part No. 08828–00080 or equivalent
• Install a nozzle that–has been cut to a 4–5 mm
(0.16 – 0.20 in.) opening.
HINT: Avoid applying an excessive amount to the
surface.
• Parts must be assembled within 3 minutes of
application. Otherwise the material must be re–
moved and reapplied.
• Immediately remove nozzle from the tube and
reinstall cap.
11. INSTALL WATER PUMP
Install a new gasket and the water pump with the 4
bolts and 2 nuts.
Torque: 8 N–m (80 kgf–cm, 69 in.–Ibf)
NOTICE: Do not got oil on the gasket.
(c) Install the No.2 oil pan with the 10 bolts and 2 nuts.
Torque: 8 N–m (80 kgf–cm, 69 in.–lbf)
–1MZ–FE ENGINE ENGINE MECHANICAL
EG2–175
