Problem
Engine-overheats

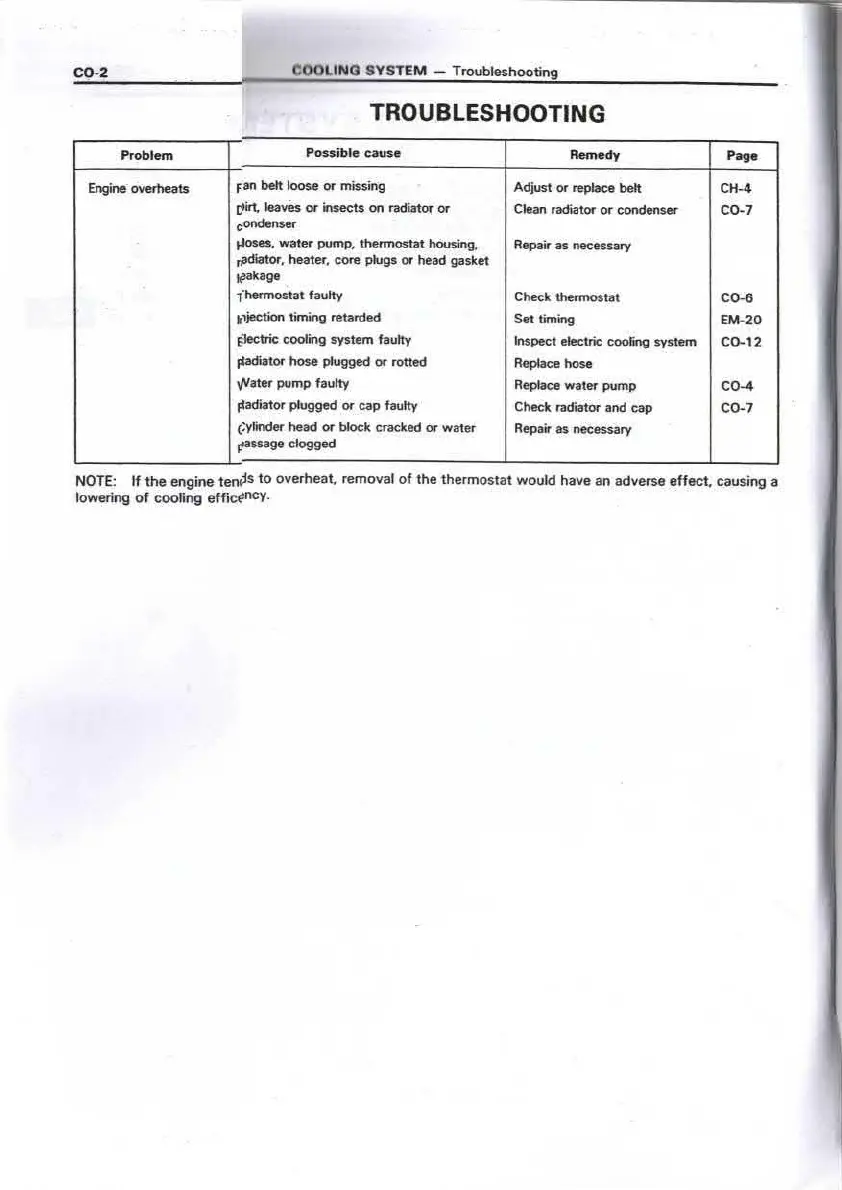

COOLINO SYSTEM - Troubleshooting
TROUBLESHOOTING
Possible cause
Fan belt loose or missing
ti•rt. leaves or insects on radiatQf or
condenser
tJoses, water pump, thermostat housing,
,ildiator, heater, core plugs or head gasket
wakage
ihennostat faulty
k'jection timing retarded
i,Jectric cooling system faulty
fCadiator hose plugged or rotted
1/'fater pump faulty
fCadiator plugged or cap faulty
c:ylinder head or block cracked or water
rassage clogged
Reme dy
Adjust or replace belt
Clean radiator or condenser
Repair as necessary
Check thermostat
Set timing
Inspect electric coor,ng system
Replace hose
Replace water pump
Check radiator and cap
Repair as necessary
Page
CH-4
C0-7
C0-6
EM-20
C0-12
C0-4
C0-7
NOT~ If the engine ten.JS to overheat, removal of the therm ostat would have an adverse effect, causing a
lowering of cooling effi~ncy.
COOLING SYSTEM - Check and Replacement of Engine Coolant
C0 -3
CHECK AND REPLACEMENT OF
ENGINE COOLANT
1. CHECK COOLANT LEVEL
2.
3 .
The coolant level should be between the LOW and FULL
lines.
If low . check for leakage and add coolant up to the FULL
line .
CHECK COOLA NT Q U ALITY
There should not be any excessive deposit of rust or
scales around the radiator acp or radiator fille r hole, and
the coolant should also be free from oil.
If excessively dirty, replace the coolant.
REPLACE ENGINE COOLANT
(al Drain the coolant from the radiator and engine drain
cocks. (Engine drain is at right rear of engine block.)
(b) Close the drain cocks .
(c) Fill the system with coolant.
Use a good brand of ethylene-glyco l base coolant.
mixed according to the manufacturer's directions.
Coolant capacity {w/ heaterl:
CE70 6 .3 li ters
(6.7 USqts, 5.5 lmp .qtsl
CE80 7.3 liters
(7.7 USqts, 6.4 lmp.qts)
CV, CT 7 .5 liters
(7.9 USqts, 6.6 l mp.qts)
CM 7.0 liters
(7.4 USqts , 6.2 l mp.qts)
CR 7.1 liters
(7.5 USqts, 6.2 lmp .q tsl
(d) Start the engine and check for le.iks.
(el Recheck the coolant level and refill as necessary.
To Next Page
