Toyota 1C - Troubleshooting; Starting System Circuit

ST- 10

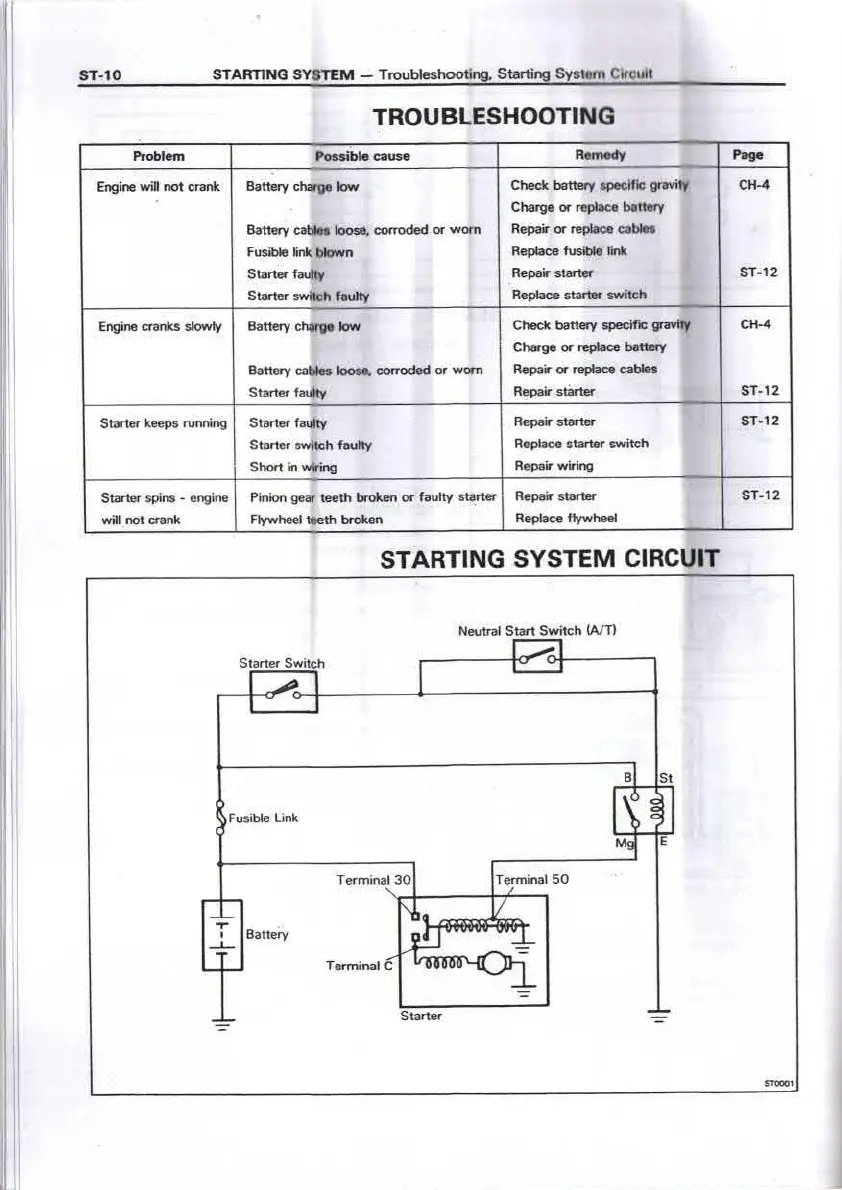

STARTING SYSTEM - Troubleshooting. Starting Sys1c,rn Circuit
TROUBLESHOOTING
Problem Possible cause
Remocty
Engine will not crank
Battery charge low
Check battery sPBClllc gravi1y
Ch.arge or replace battery
Battery ceblea loose. corroded or worn
Repair or replace cabl6s
Fusible link blown
Reptace fusible fink
Starter faully
Repair starter
Starter switch faulty
Replace starter switch
Engine Ct1lnks slowly
Battery c~ 10w
Check battery specific gravity
Ch.arge or replace bat1ery
Battery cables loose. corroded or worn
Repair or replace cables
Starter faulty
Repair starter
Starter keeps running Starter faulty
Repair starter
Starter switc h faulty
Replace starter switch
Shorl In Wiring
Repair wiring
Starter spins - engine Pinion gear teeth broken or faulty starter
Repair starter
l
will not crank Flywheel teeth broken
Replace flywheel
STARTING SYSTEM CIRCUIT
Starter Switch
Fusible Link
T Battei-y
_L
Neutral Start Switch WTl
Term inal 30
Terminal 50
Starter
Page
CH-4
[1. 4 kW]
ST-12
CH-4
ST-12
ST-12
ST- 12
(2.0 kW]
STARTI NG SYSTEM - Starte r
STARTER
COMPONENTS
ST-1 1
Armature
Bearing
Starter Housing
