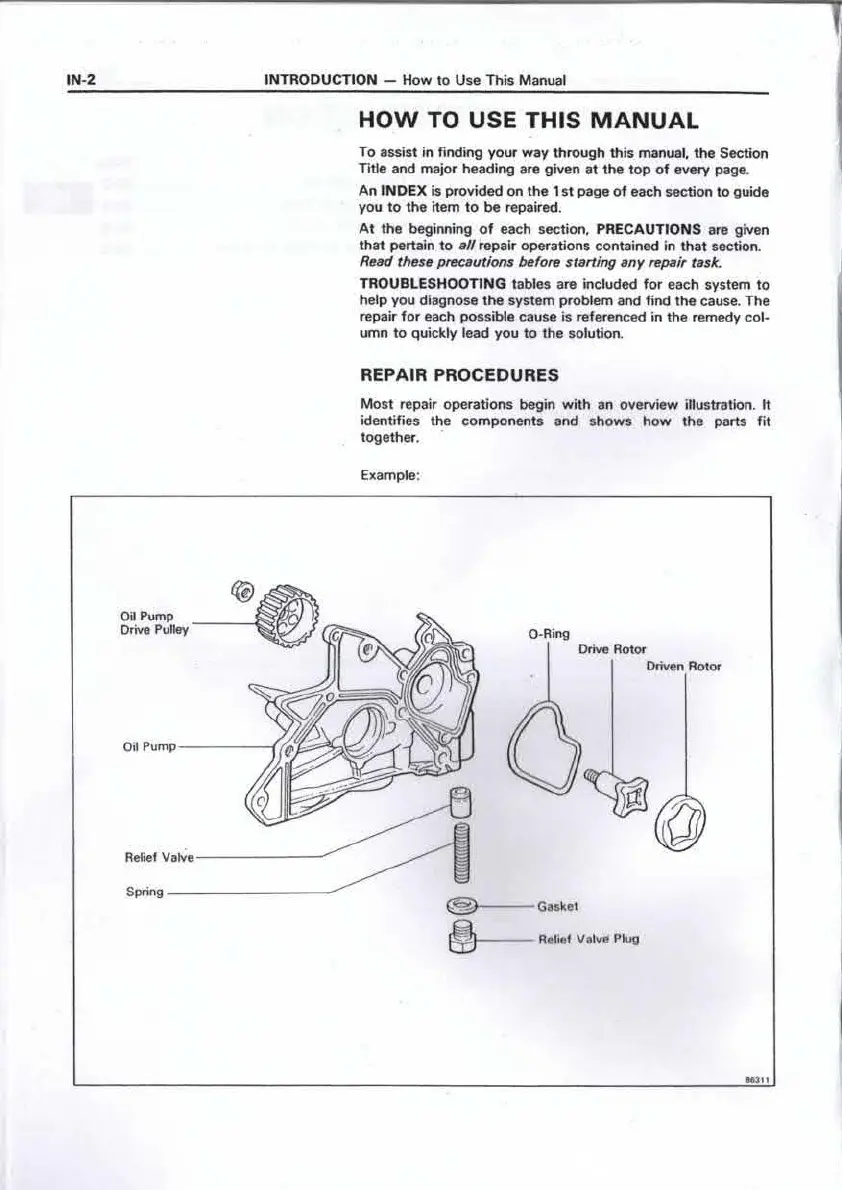

IN-2 INTRODUCTION - How to Use This Manual
oa Pump
Drive Pulley
(@
Re~el va...;e---- ----
Spring __ ___ ___ _ ____.
HOW TO USE THIS MANUAL
To assist in finding your way through this manual, the Section
Title and major heading are given at the top of every page.
An INDEX is provided on the 1st page of each section to guide
you to the item to be repaired.
At the beginning of each section, PRECAUT IONS are given
that pertain to aff repair operations contained in that section.
Read these precautions before starting any repair task.
TROUBLESHOOTING tables are included for each system to
help you diagnose the system problem and find the cause. The
repair for each possible cause is referenced in the remedy col-
umn to quickly lead you to the solution.
REPAIR PROCEDURES
Most repair operations begin with an overview illustration. It
identifies the components and shows how the parts fit
together. ·
Example:
0-Ring
Drive Rotor
Driven Rotor
a
@-Gasket
Rehef Valv<f Plug
......
INTRODUCTION - How to Use This Manual
IN-3
Illustration:
what to do and where
The procedures are presented in a step-by-step format :-
• The illustration shows what to do and where to do it
• The task heading tells what to do.
• The detailed text tells how to perform the task and gives
other information such as specifications and warnings.
Example:
.___.--Task heading: what to do
IN STAL L FLYW HEEL _.--
Using SST and a press, press out the bushing.
SST 09222-64010 (09222-02020, 09222-02040)
I I
Set part No. Components part NO.
Tighte n the bolls to the specified torque in two or three passes
and in the sequence shown. \
Torque: 900 kg -cm (65 ft -lb, 88 N·ml
\ Detail text:
Specification how to do it
This format provides the experienced technician with in FAST
TRACK to the information needed. He can read the task head-
ings and only refer to the detailed text when he needs it. Impor-
tant specifica tions and warnings always stand out in bold type.
REFERENCES
References have been kept to a minimum. However. when they
are required you are given the page to go to.
SPECIFICATIONS
Specifications are presented in bold type throughout the text in
the applicable step . You never have to leave the procedure to
look up your specs. All specifications are also found in Appen-
dix A. Specifications . for quick reference.
WARNINGS . CAUTIONS. NOTES :
• WARNINGS are presented in bold type, and indicate there is
a possibility of injury to you or other people .
• CAUTIONS are also presented In bold type, and indicate
there is a possibility of damage to the components being
repaired.
• NOTES ar·e separated from the text but do not appear in
bold . They provide additional information to more efficiently
help you perform the repair.
