Toyota 1HD-FT Repair Manual

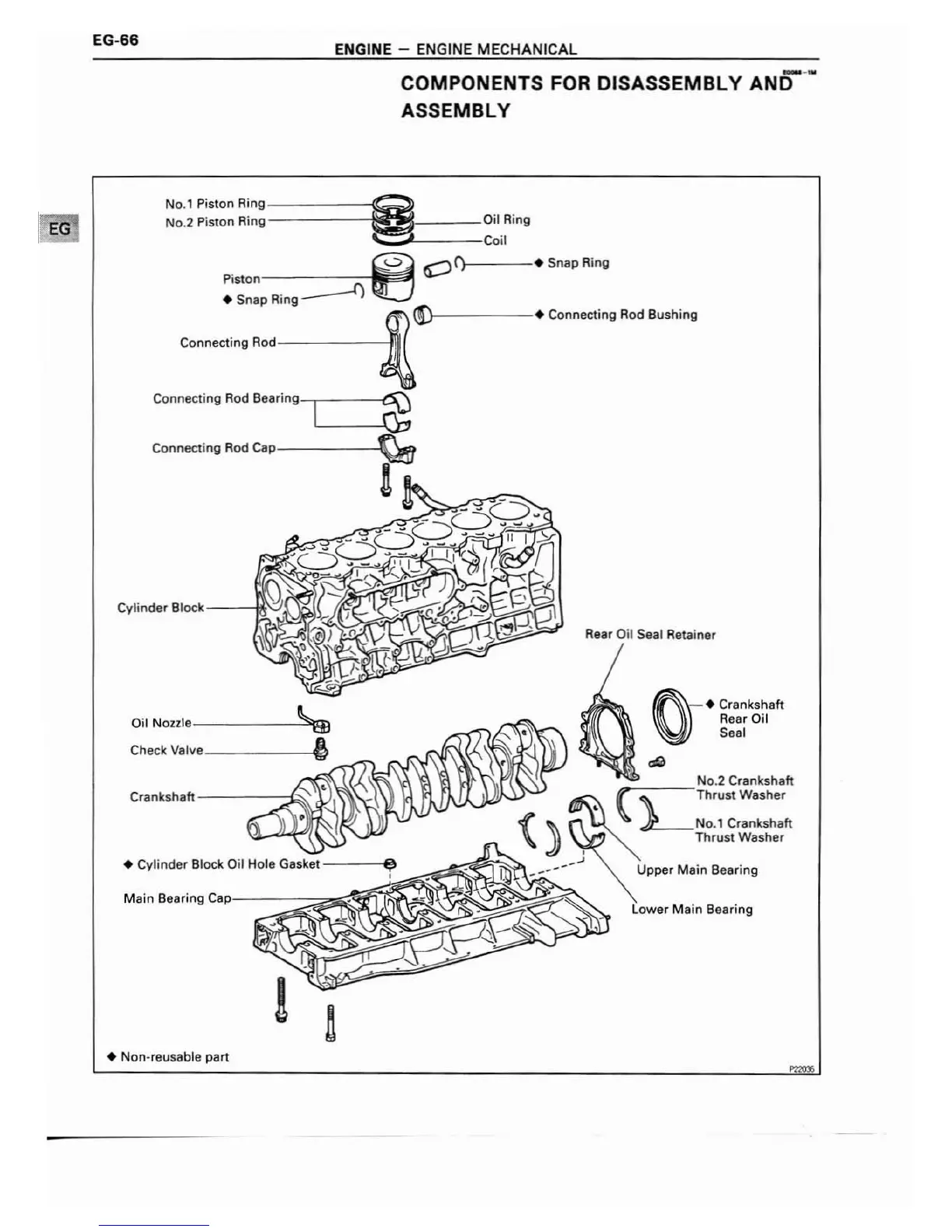

EG-66
ENGINE - ENGINE MECHANICAL
_.".
COMPONENTS FOR DISASSEMBLY AND
ASSEMBLY
0-
.Crankshaft
Rear Oil
Seal
Rear Oil Seal Retainer
Connecting Rod------i
No.1 Piston Ain
g
======1Gi.
No.2 Piston Ring ~, Oil Ring
... ..,;;;;...o:l'------Coil
t3
o ()>----+ Snap Ring
Pislon-----=-"1
• Snap Ring ----!1
{[l------+ Connecting Rod Bushing
Connecting Rod Bearin9l'--- __ -'
Connecting Rod Cap------
Oil NOlz\e------
!
Check Valve ~
Crankshaft ------::~
• Cylinder Block O);;~' H~o;,~e;G;e~'k;e~t ;~~~Ij>~;'~~I~j~
M.;n Be,,;n. C.p- ' ~:;P",
• Non-reusable part

Toyota 1HD-FT Specifications

General

Fuel Type	Diesel
Turbocharger	Yes
Bore x Stroke	94 mm x 100 mm
Compression Ratio	18.6:1
Fuel System	Direct injection
Aspiration	Turbocharged
Displacement	4.2 L (4164 cc)
Maximum Power	125 kW (168 hp) at 3600 rpm
Engine Type	Inline 6-cylinder
Valvetrain	SOHC, 12 valves (2 per cylinder)
