Toyota 2012 corolla - Tire Inflation Pressure

To Next Page

To Previous Page

376

4-3. Do-it-yourself maintenance

Tire inflation pressure

■ Tire inflation pressure

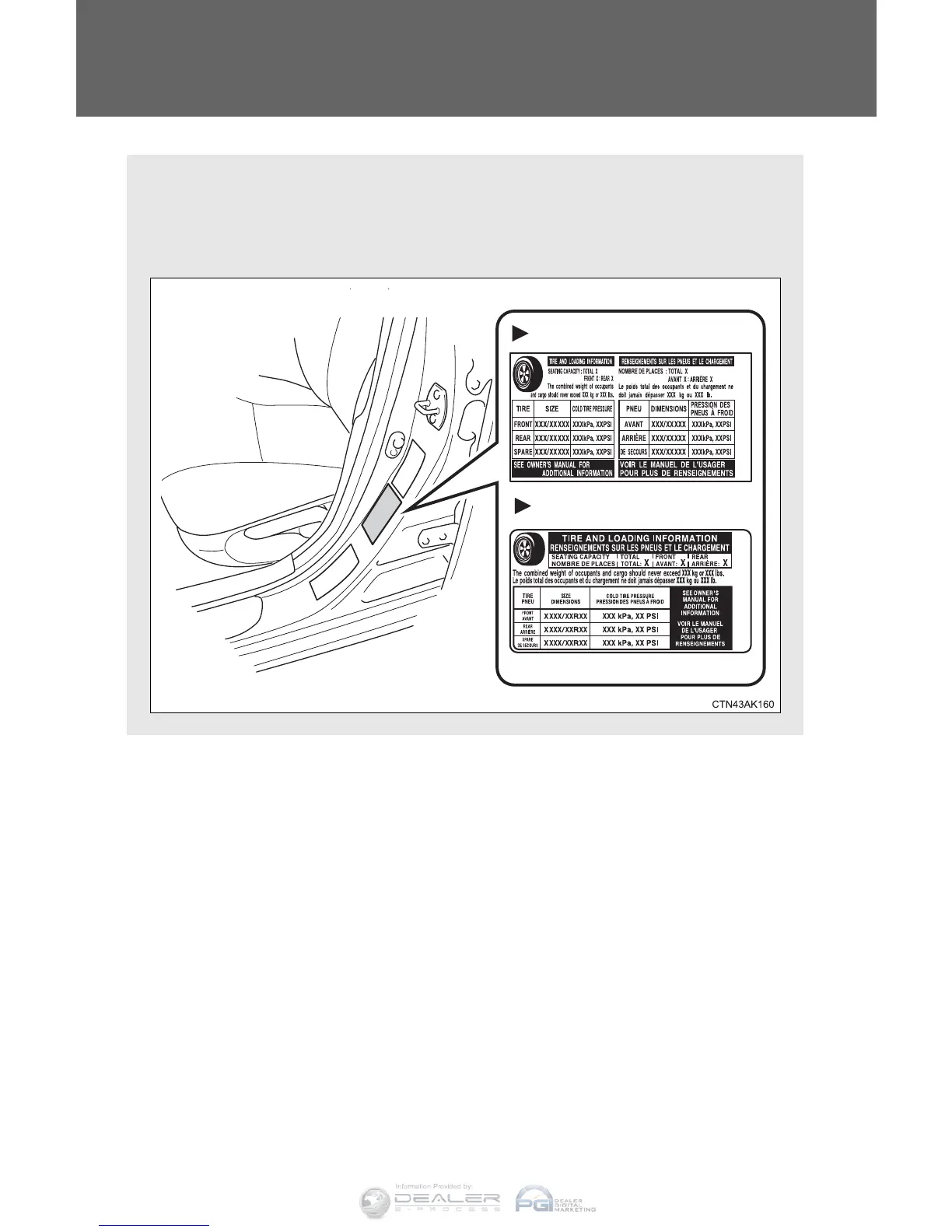

The recommended cold tire inflation pressure and tire size is dis-

played on the tire and loading information label. (→P. 474)

Type A

Type B
