4-3. Do-it-yourself maintenance

Maintenance and care

Air conditioning filter

The air conditioning filter must be changed regularly to maintain air

conditioning efficiency.

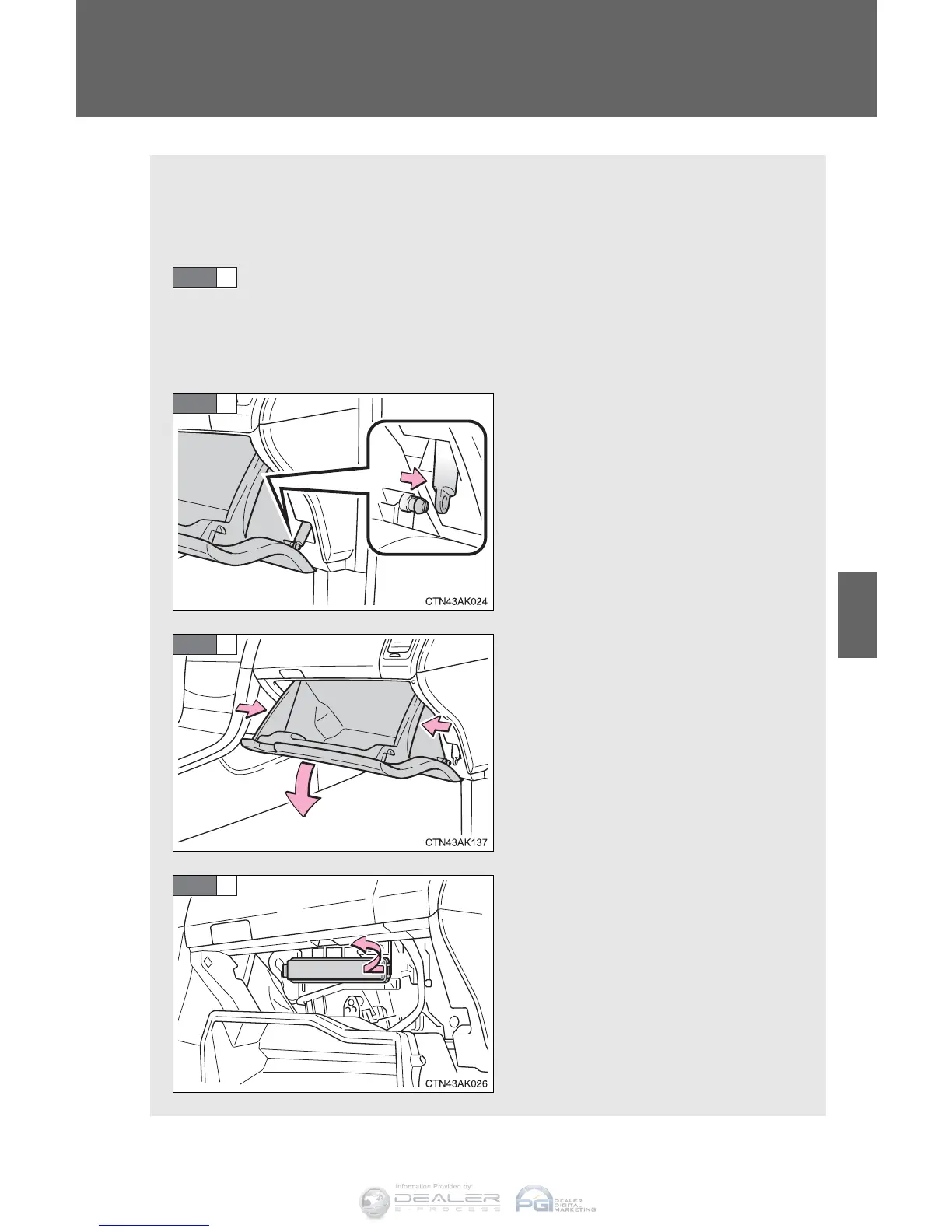

■ Removal method

Vehicles with smart key system: Turn the “ENGINE START

STOP” switch OFF.

Vehicles without smart key system: Turn the engine switch

OFF.

Open the glove box. Slide off

the damper.

Push in each side of the glove

box to disconnect the claws.

Remove the filter cover.

STEP
