Toyota 2012 corolla - Back-Up Light

To Next Page

To Previous Page

407

4-3. Do-it-yourself maintenance

Maintenance and care

■ Back-up light

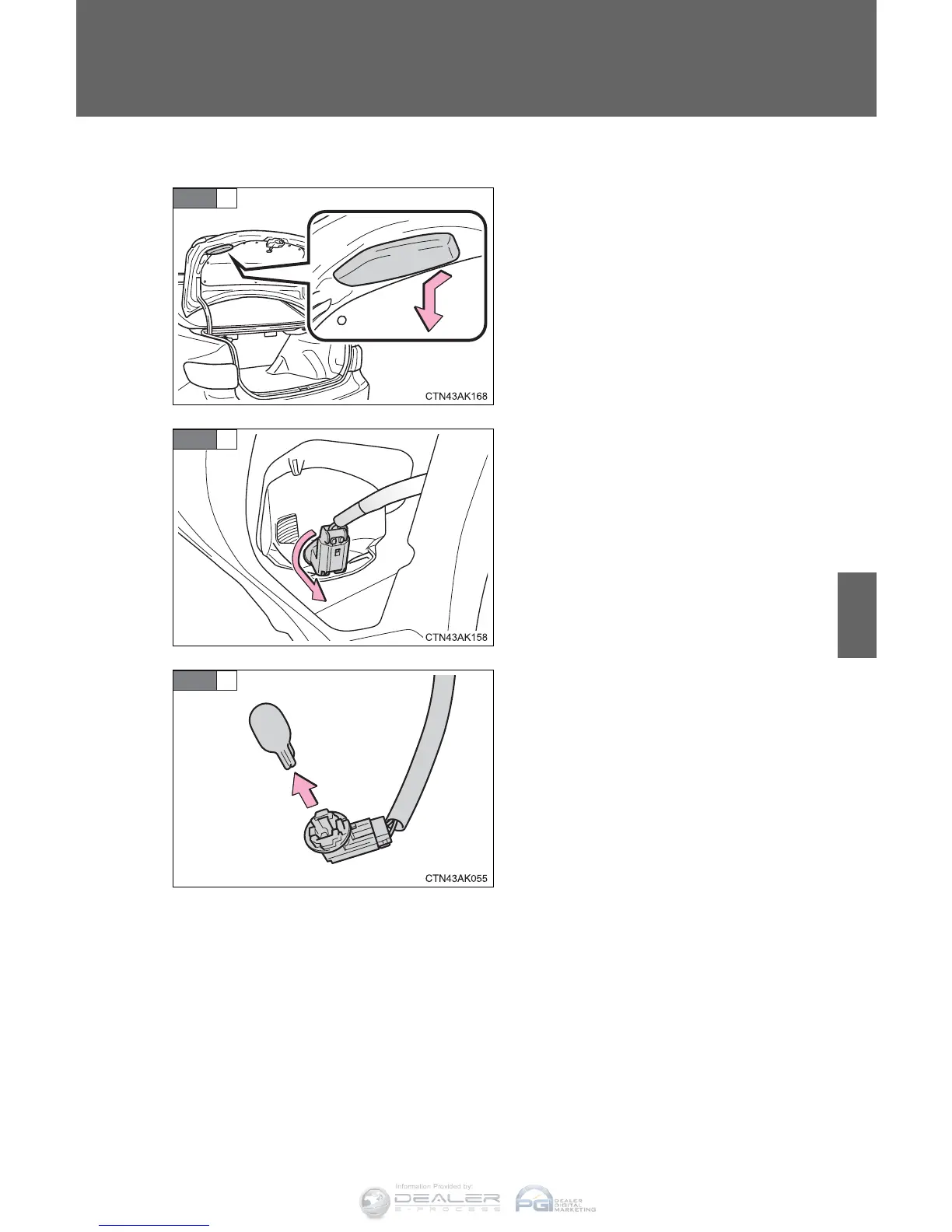

Open the trunk lid and remove

the cover.

Turn the bulb base counterclock-

wise.

Remove the light bulb.

STEP
