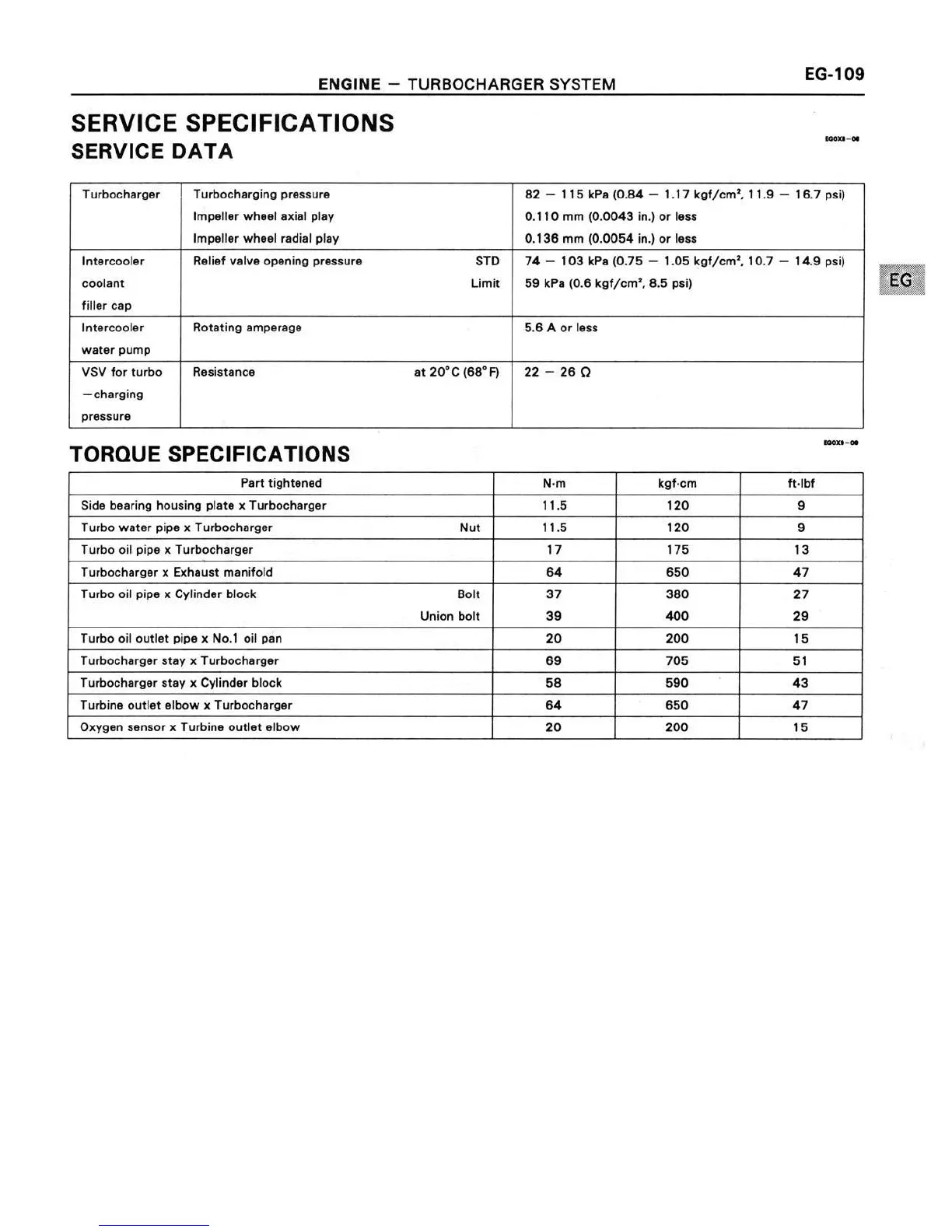

EG-109
ENGINE — TURBOCHARGER SYSTEM
SERVICE SPECIFICATIONS
SERVICE DATA
Turbocharging pressure
Impeller wheel axial play
Impeller wheel radial play
Turbocharger e2 — 115 kPa (0.84 — 1.17 kgf/cm’. 11.9 — 16.7 psi)
0.110 mm (0.0043 in.) or less
0.136 mm (0.0054 in.) or less
lntercooler Relief valve opening pressure
coolant
fmercap
STD
Limit
74 — 103 kPa (0.75 — 1.05 kgf/cm’. 10.7 — 14.9 psi)
59 kPa (0.6 kgf/cm‘. 8.5 psi)
lntercooler Rotating amperage
water pump
5.6 A or less
VSV for turbo
—charging
DFBSSUTB
Resistance at 20°C (68° F) 22-261‘!
TORQUE SPECIFICATIONS
Part tightened N-m kgf-cm ft-lbf
Side bearing housing plate x Turbocharger 1 1.5 120 9
Turbo water pipe x Turbocharger Nut 11.5 120 9
Turbo oil pipe x Turbocharger 17 175 13
Turbocharger x Exhaust manifold 64 650 47
Turbo oil pipe x Cylinder block Bolt
Union bolt
37 380 27
39 400 29
Turbo oil outlet pipe x No.1 oil pan 20 200 I 5
Turbocharger stay x Turbocharger 69 705 51
Turbocharger stay x Cylinder block
58 590 43
Turbine outlet elbow x Turbocharger
B4 650 47
Oxygen sensor x Turbine outlet elbow
20 200 1 5
