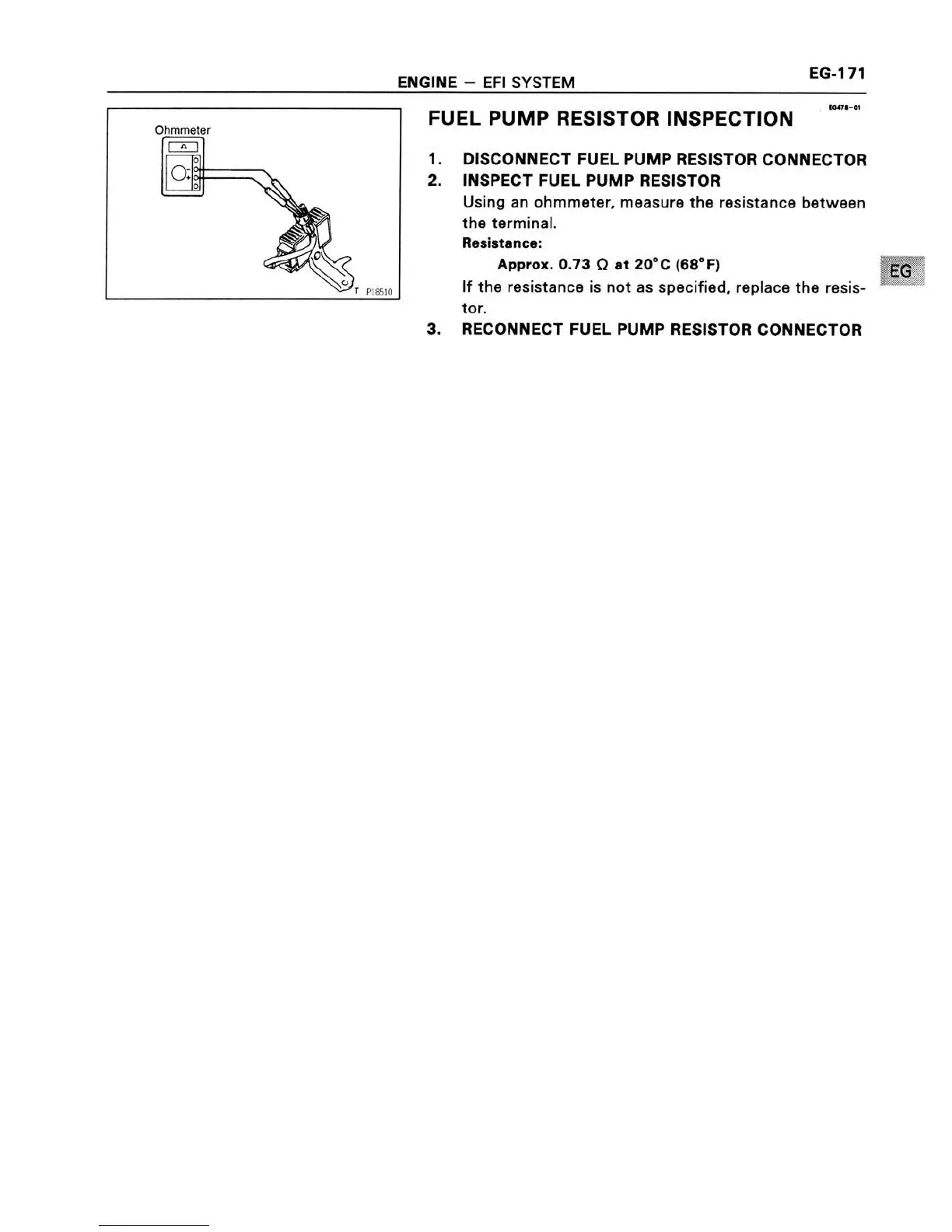

ENGINE
—
EFI
SYSTEM
EG-171
Ohmmeter
-
.Ԥ
<.~/v
I
T
PIS510
IIIlI'l—OI
FUEL
PUMP
RESISTOR
INSPECTION
1.
DISCONNECT
FUEL
PUMP
RESISTOR
CONNECTOR
INSPECT
FUEL
PUMP
RESISTOR
Using
an
ohmmeter.
measure
the
resistance
between
the
terminal.
Resistance:
Approx.
0.73
Q
at
20°C
(68°F)
If
the
resistance
is
not
as
specified,
replace
the
resis-
tor.
3.
RECONNECT
FUEL
PUMP
RESISTOR
CONNECTOR
