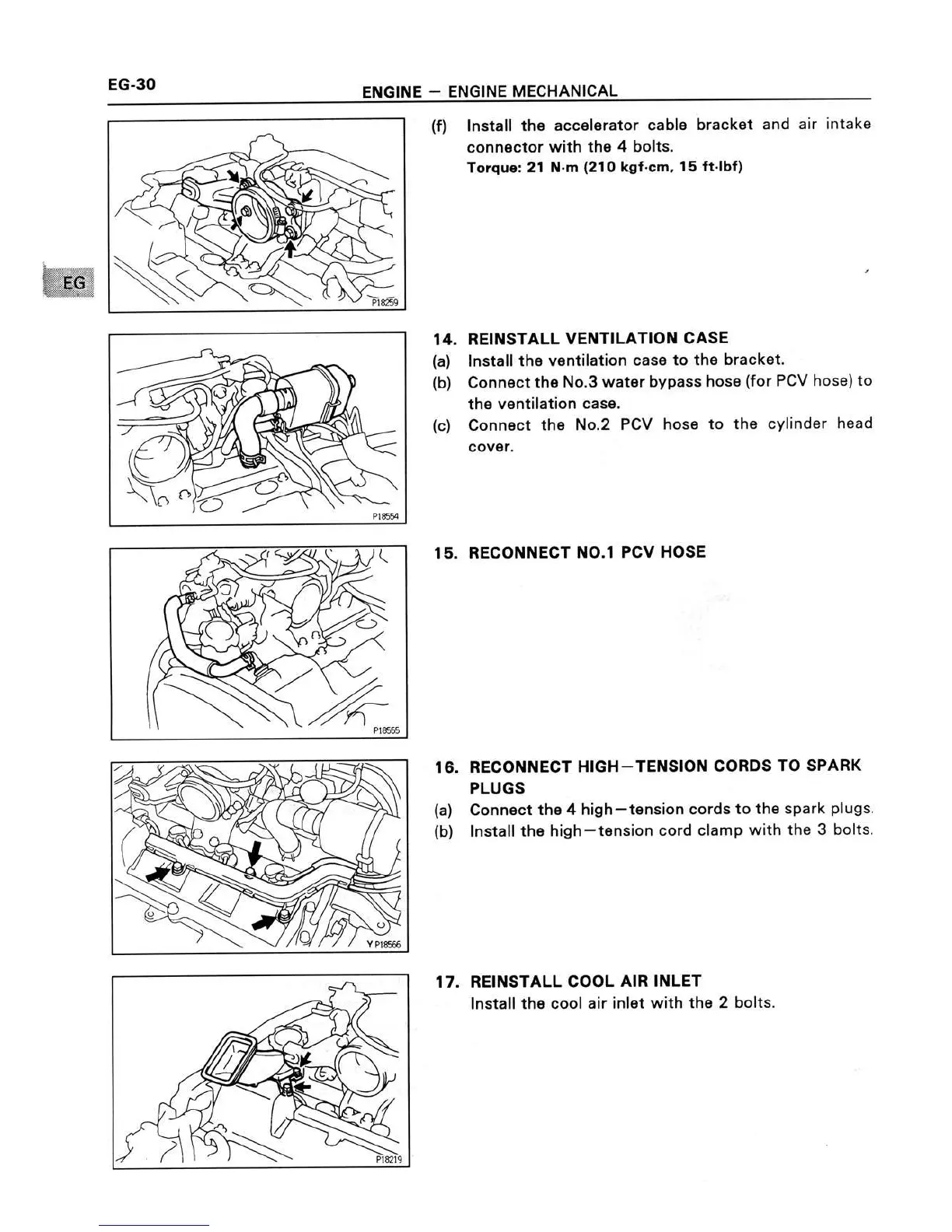

563° ENGINE — ENGINE MECHANICAL
/ ./
%/,—:%!l
e§l9/
\ _
P1825‘!
,
' "@»':.(?*’~'i
‘.4 ’;
..
“K
-
“.5 \
. ’ .'7
/ ../
/%*lQ/
, ,9 \§g5j(__
.-3.‘!
0 & Q .
?‘»2i>%
‘N4
4
~
#14
5:-
3?
"/
/J‘ \
a -~
~ A
/ I \ Pram
(f) Install the accelerator cable bracket and air intake
connector with the 4 bolts.
Torque: 21 N-m (210 kgf-cm. 15 ft-lbf)
I
14. REINSTALL VENTILATION CASE
(a) Install the ventilation case to the bracket.
(b) Connect the No.3 water bypass hose (for PCV hose) to
the ventilation case.
(c) Connect the No.2 PCV hose to the cylinder head
cover.
15. RECONNECT NO.1 PCV HOSE
16. RECONNECT HlGH—TENSlON CORDS TO SPARK
PLUGS
(a) Connect the 4 high—tension cords to the spark plugs.
(b) Install the high—tension cord clamp with the 3 bolts.
17. REINSTALL COOL AIR INLET
Install the cool air inlet with the 2 bolts.
