Toyota 8FGCU30 User Manual

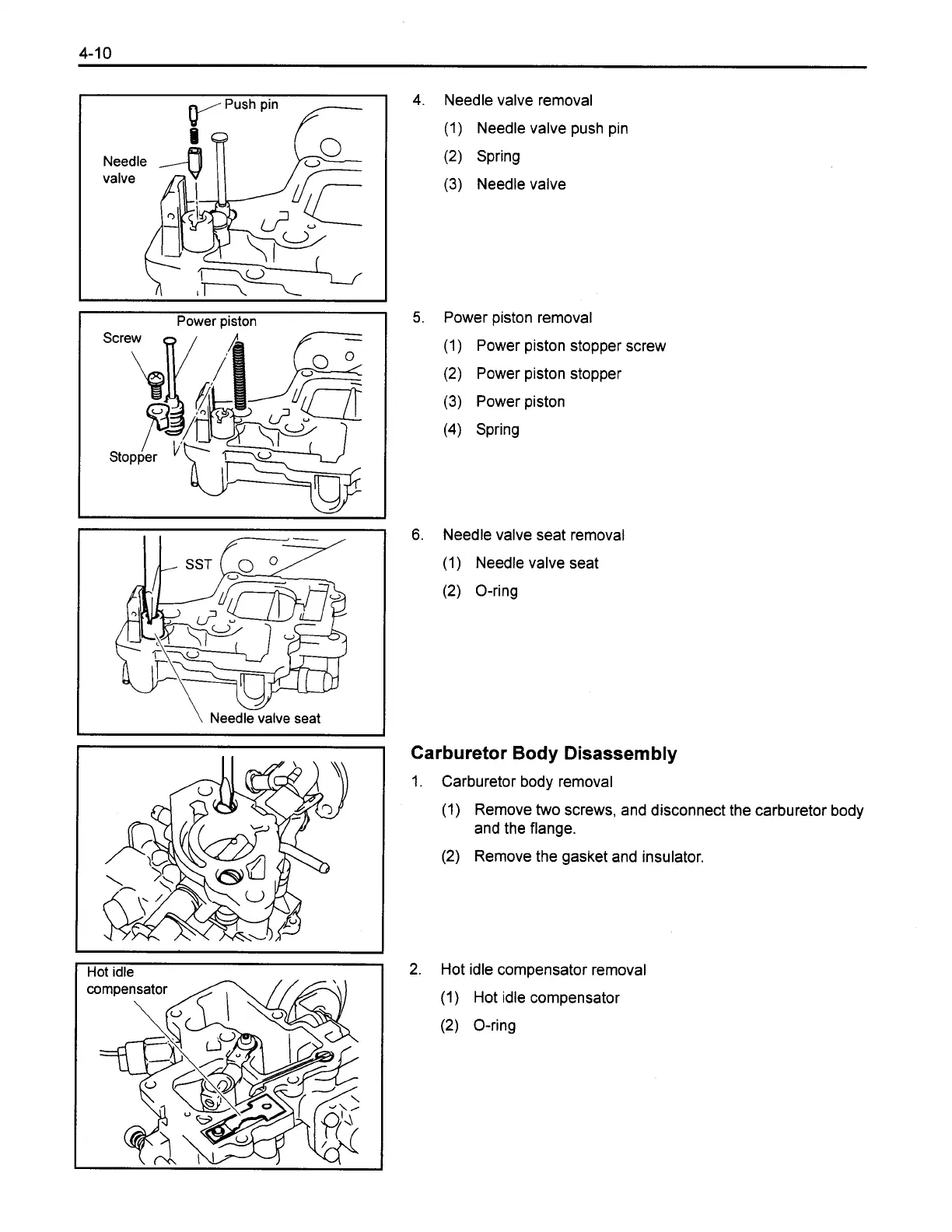

Power piston
I Hot idle
Needle valve removal
(1) Needle valve push pin
(2) Spring
(3) Needle valve
Power piston removal
(1) Power piston stopper screw
(2) Power piston stopper
(3) Power piston
(4) Spring
Needle valve seat removal
(1) Needle valve seat
(2) O-ring
Carburetor Body Disassembly
1. Carburetor body removal
(1) Remove two screws, and disconnect the carburetor body
and the flange.
(2) Remove the gasket and insulator.
2. Hot idle compensator removal
(1) Hot idle compensator
(2) O-ring
4Y-E Repair
Section 1.1.4

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
