Toyota 8FGCU30 User Manual

I
Delivery pipe

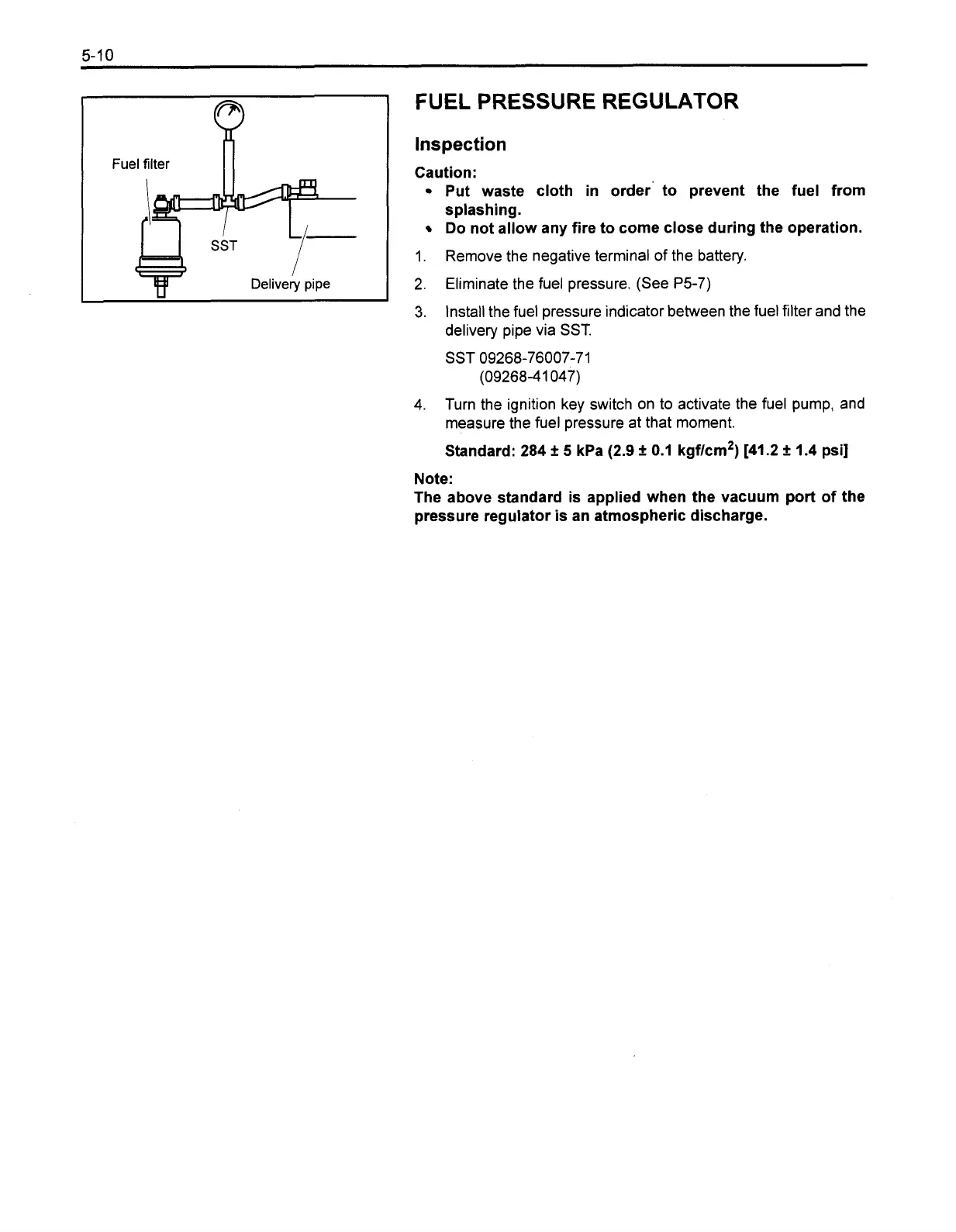

FUEL PRESSURE REGULATOR
Inspection
Caution:
Put waste cloth in order' to prevent the fuel from
splashing.
Do not allow any fire to come close during the operation.
1.
Remove the negative terminal of the battery.
2.
Eliminate the fuel pressure. (See P5-7)
3.
Install the fuel pressure indicator between the fuel filter and the
delivery pipe via
SST.
SST 09268-76007-71
(09268-4 1 047)
4.
Turn the ignition key switch on to activate the fuel pump, and
measure the fuel pressure at that moment.
Standard: 284 5 kPa (2.9 f 0.1 kgflcm2) [41.2 & 1.4 psi]
Note:
The above standard is applied when the vacuum port of the
pressure regulator is an atmospheric discharge.
4Y-E Repair
Section 1.1.5

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
