3-9

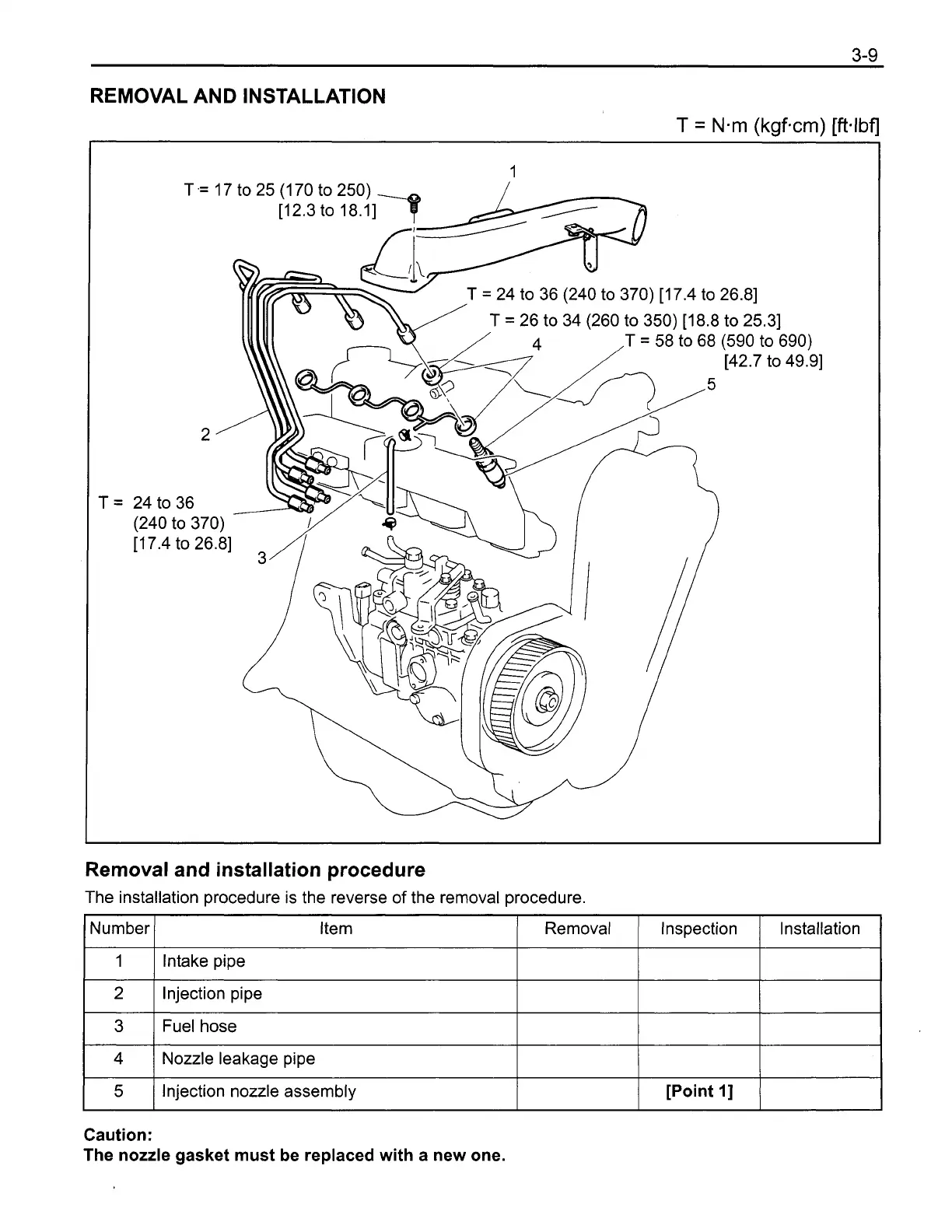

REMOVAL AND INSTALLATION
Removal and installation procedure
The installation procedure is the reverse of the removal procedure.
Number
1
2
5
/ lnjection nozzle assembly
I
Item
Intake pipe
Injection pipe
3
4
I [Point I] /
Fuel hose
Nozzle leakage pipe
Caution:
The nozzle gasket must be replaced with a new one.
Removal Inspection Installation
1DZ-II Repair
Section 1.2.3

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
