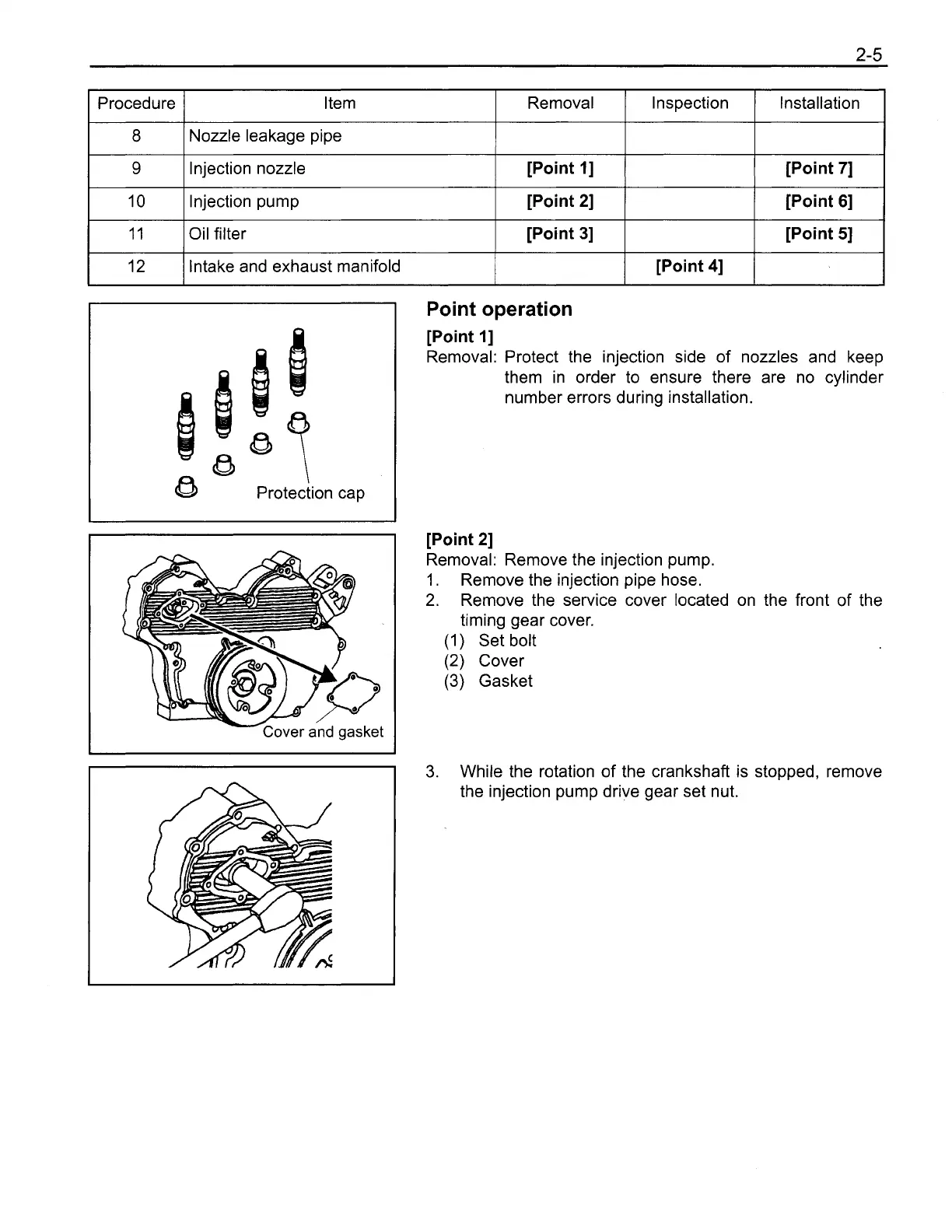

Toyota 8FGCU30 User Manual

1 8 I Nozzle leakage pipe
Procedure
Removal Item
9
10
Protection cap
11
12
-
Cover &d gasket
Inspection
Injection nozzle
Injection pump
Point operation
[Point I]
Removal: Protect the injection side of nozzles and keep
them in order to ensure there are no cylinder
number errors during installation.
Installation
Oil filter
Intake and exhaust manifold
[Point 21
Removal: Remove the injection pump.
1. Remove the injection pipe hose.
2. Remove the service cover located on the front of the
timing gear cover.
(1) Set bolt
(2) Cover
(3) Gasket
[Point I]
[Point 21
3.
While the rotation of the crankshaft is stopped, remove
the injection pump drive gear set nut.
[Point 71
[Point 61
[Point 31
[Point 41
[Point 51
1DZ-II Repair
Section 1.2.2

Toyota 8FGCU30 Specifications

General

Model	8FGCU30
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	6, 000 lbs
Maximum Lift Capacity	6, 000 lbs
Tire Type	Pneumatic
Fuel Type	Gasoline/LPG
Power Source	Internal Combustion
Engine Model	Toyota 4Y
Mast Type	3-stage
