[Point 2]

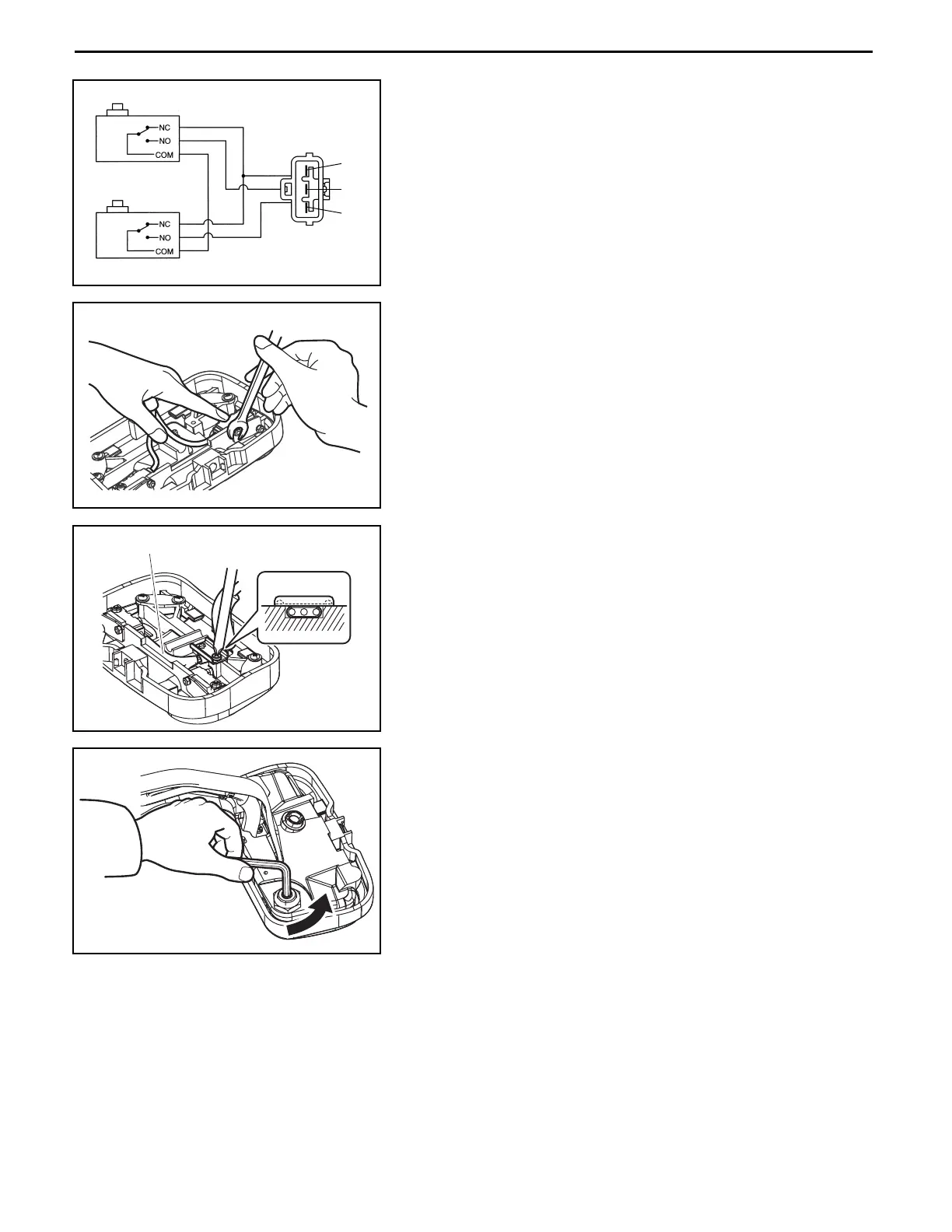

Inspection:
Check continuity of direction switches.
Forward side:
Continuity between c and d when the switch is pressed.
Reverse side:
Continuity between c and e when the switch is pressed.
Reassembly:
Reassemble in the following order:
1. Install the switch on the pedal.
Set the switch while fully pressing it onto the pad.
Apply locking agent (08833-76002-71 (08833-00080)) at the
tip end of the screw before tightening the nut.
2. Fix the switch harness by means of the plate.
Avoid overlaying of three wire harnesses in the harness tube
as illustrated.
Also push portion A of the harness so as not to be raised (to
prevent interference at the time of pin insertion).
[Point 3]
Reassembly:
Since the holder W/magnet needs height adjustment, set it
temporarily in a low position. See page 1-28 for adjustment.
