1-31
DISASSEMBLY·INSPECTION·REASSEMBLY
T = N·m (kgf·cm) [ft·lbf]

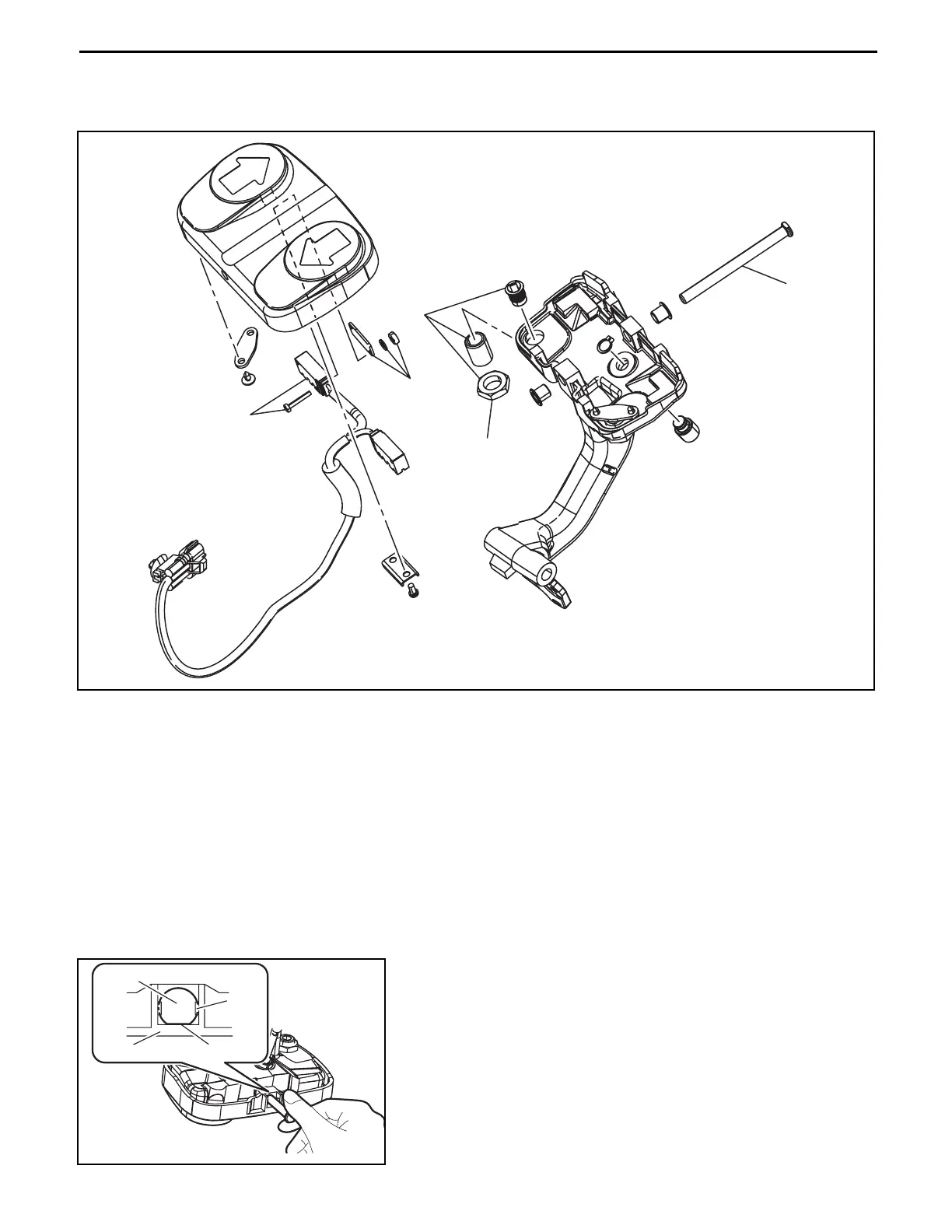

Disassembly Procedure
1 Remove the pin and separate the pad W/switch from the pedal. [Point 1]
2 Remove the switch ASSY. [Point 2]
3 Remove the holder W/magnet. [Point 3]
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
Note:
• Apply grease on the inner surface of each bushing.
• After reassembly, adjust the direction switch. (See page 1-27.)
Point Operations
[Point 1]
Disassembly:
Extract the pin by lightly tapping the pin edge (the flange-less
side).
Reassembly:
Push the pin in with its notched flange portion in the illustrated
direction until it goes beyond the pad side hook.
2
1
29 (296) [21.4]
2
3
Pin
Hook
Pad Notched portion
To Next Page
