6-1. Specifications

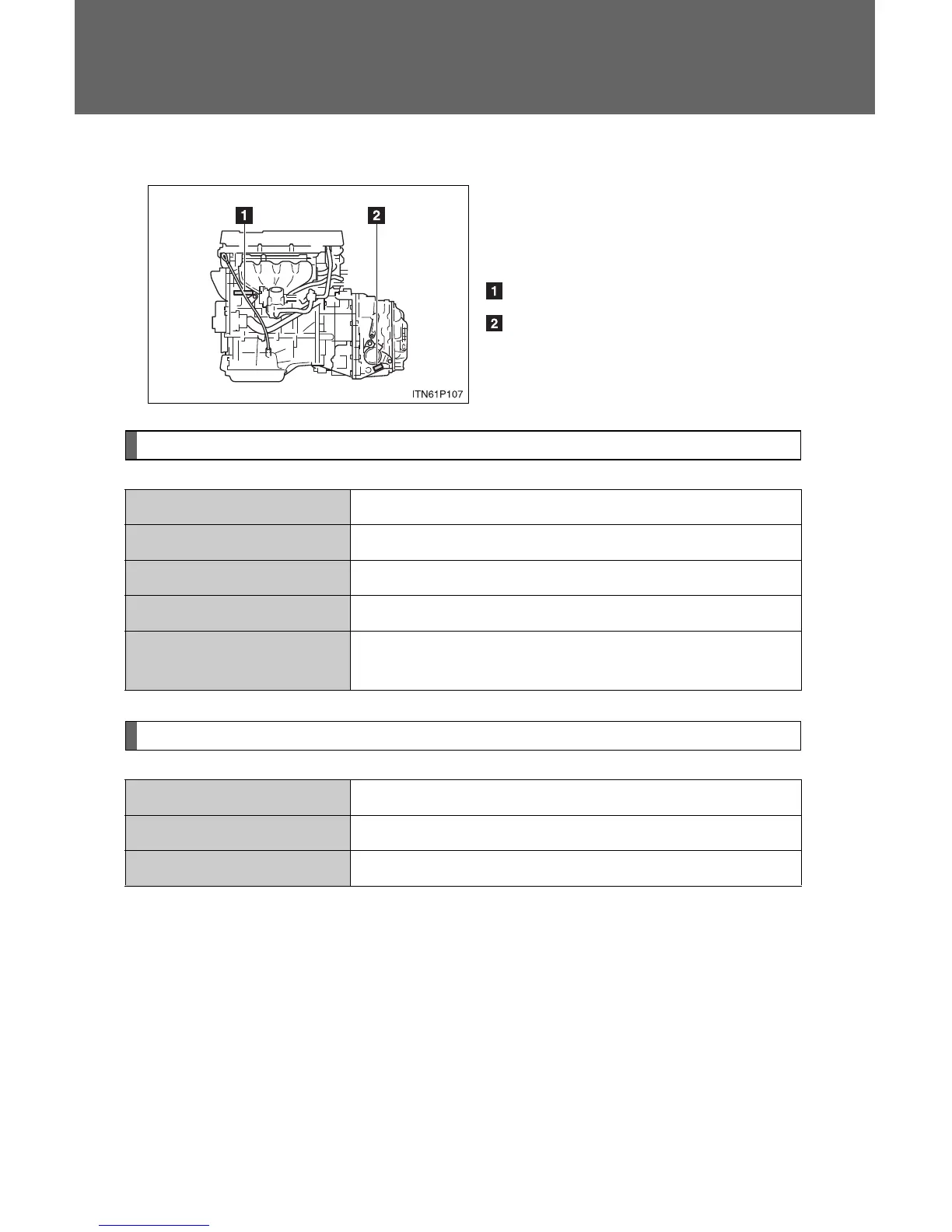

■ Engine number and electric motor (traction motor) number

The gasoline engine number and

electric motor (traction motor)

number are stamped as shown.

Gasoline engine number

Electric motor (traction motor)

number

Engine

Fuel

Model 2ZR-FXE

Type 4-cylinder in line, 4-cycle, gasoline

Bore and stroke 3.17 × 3.48 in. (80.5 × 88.3 mm)

Displacement 109.7 cu. in. (1798 cm

)

Valve clearance

(engine cold)

Automatic adjustment

Fuel type Unleaded gasoline only

Octane Rating 87 (Research Octane Number 91) or higher

Fuel tank capacity 11.9 gal. (45 L, 9.9 Imp.gal.)
