TP-Link Archer Air R5 User Manual

51
Chapter 10
Network Security

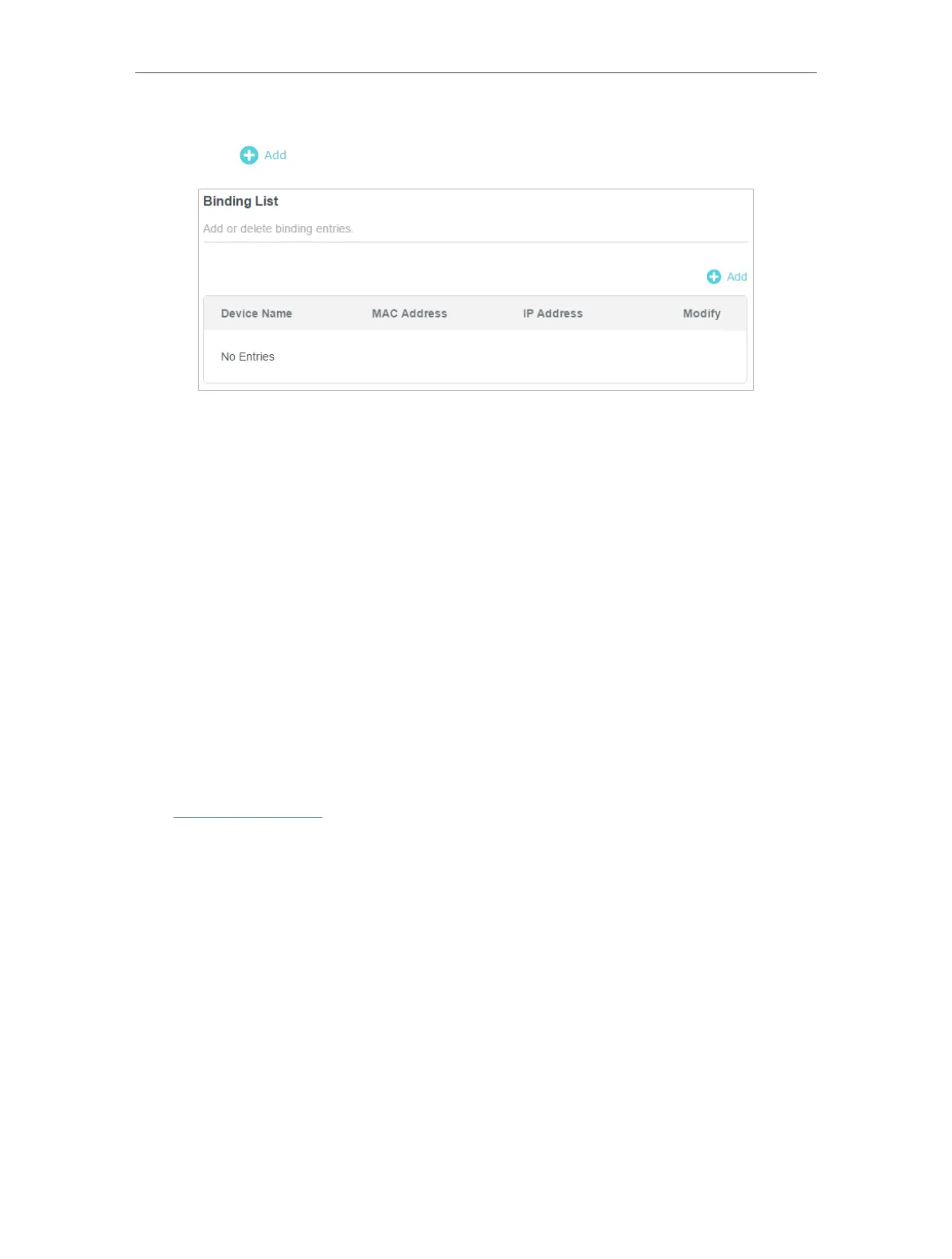

To bind the unconnected device:
1 ) Click
in the Binding List section.
2 ) Enter the MAC Address and IP Address that you want to bind.
3 ) Click SAVE.
Done!
Now you don’t need to worry about ARP spoofing and ARP attacks!
10. 4. ALG
ALG allows customized Network Address Translation (NAT) traversal filters to be plugged
into the gateway to support address and port translation for certain application layer
“control/data” protocols such as FTP, TFTP, H323 etc. It is recommended to keep the
default settings.
You may need to disable SIP ALG when you are using voice and video applications to
create and accept a call through the router, since some voice and video communication
applications do not work well with SIP ALG.
Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the
router. Go to Advanced > Security > ALG.

TP-Link Archer Air R5 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2976 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Product type	Tabletop router
Product color	White
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (5 GHz)	1
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Supported network protocols	IPv4, IPv6
Certification	FCC, CE, RoHS
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power source type	USB
Package type	Box

Weight and Dimensions

Depth	10.8 mm
Width	148 mm
Height	210 mm
