70
Chapter 13
Customize Your Network Settings

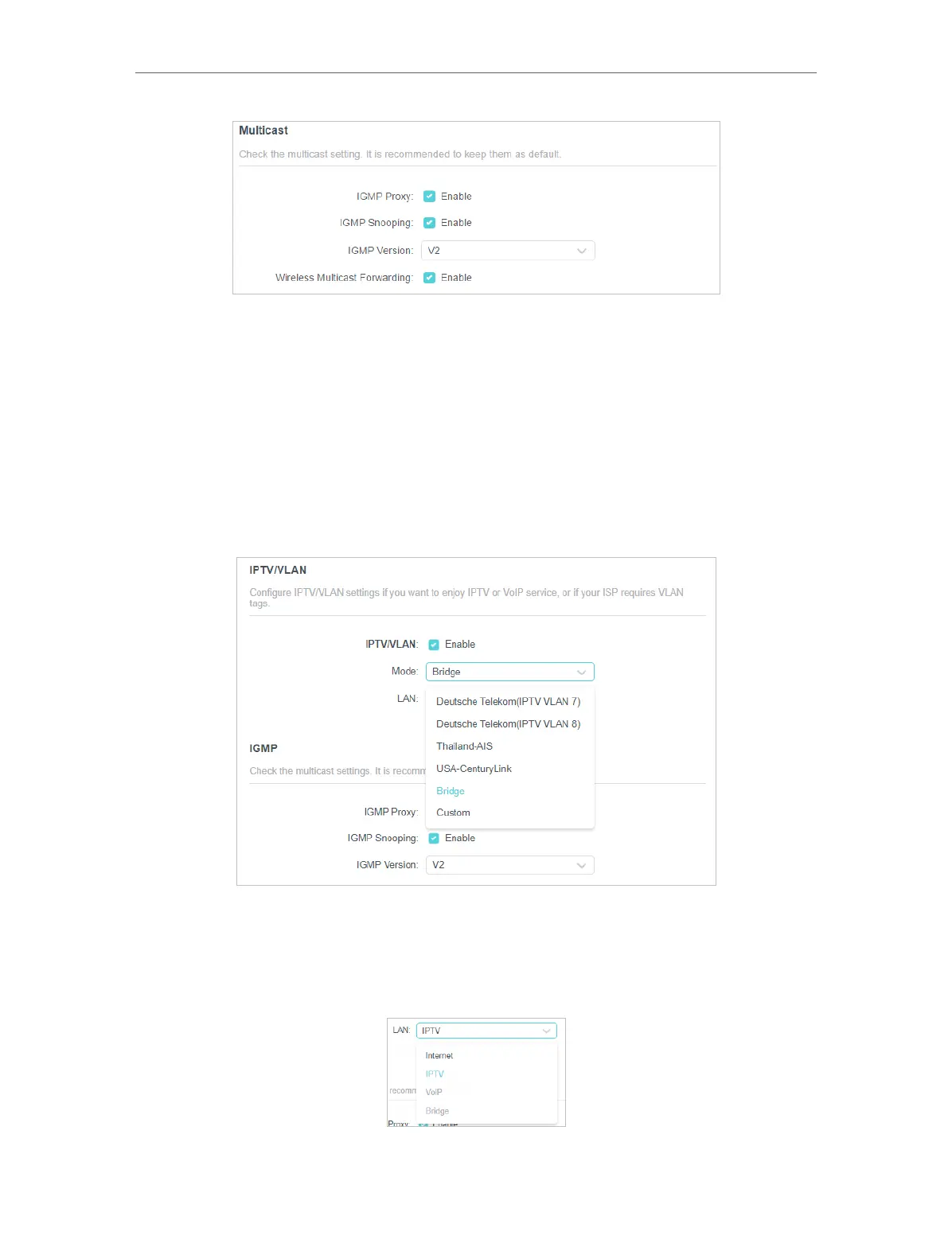

2 ) Click SAVE.
3 ) After configuring IGMP proxy, IPTV can work behind your router now. You can
connect your set-top box to any of the router’s Ethernet port.
If IGMP is not the technology your ISP applies to provide IPTV service:
1 ) Tick Enable IPTV/VLAN.
2 ) Select the appropriate Mode according to your ISP.
• Select Bridge if your ISP is not listed and no other parameters are required.
• Select Custom if your ISP is not listed but provides necessary parameters.
3 ) After you have selected a mode, the necessary parameters are predetermined.
Select IPTV to determine tha the LAN port is used to support IPTV service. Note
that after setting the LAN port as an IPTV/VoIP/Bridge port, the LAN port cannot
be used for internet connection.
4 ) Click SAVE.
